Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Class or Grade | Martensitic S410 |
|---|---|
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
| Thread Direction | RH |
| Drive Chain | 14.2875 mm (9/16 in) |
| Thread Size | 0.375 mm (0.015 in) |
| Hole Thread Pitch | 16 |
| Thickness | 9.525 mm (0.386 in) |
| Height | 0.39 in |

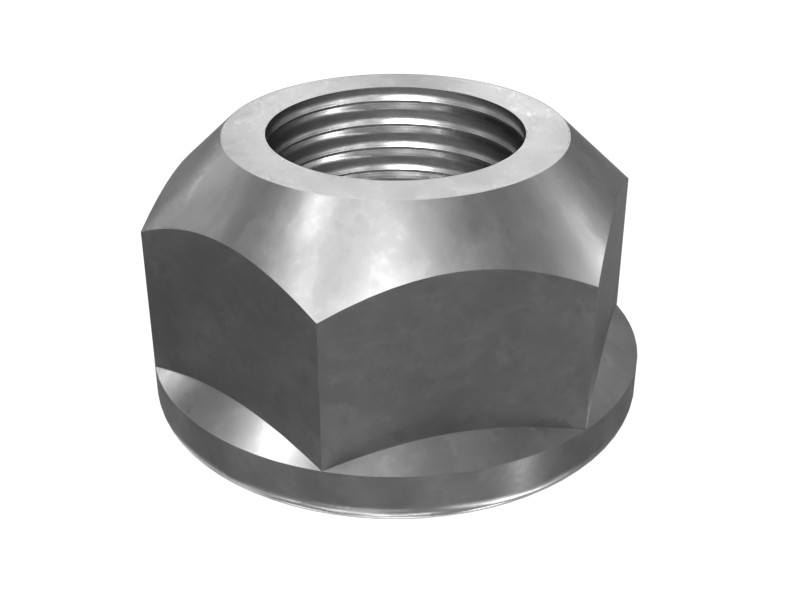

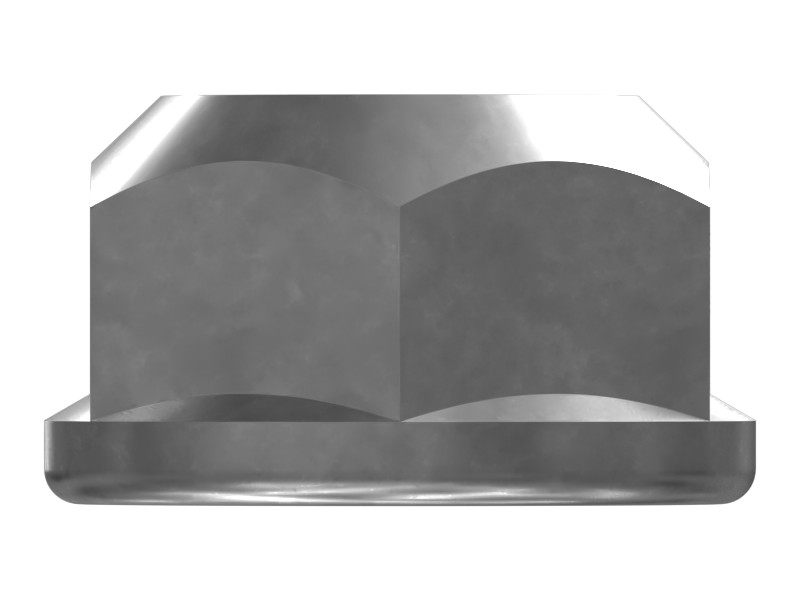

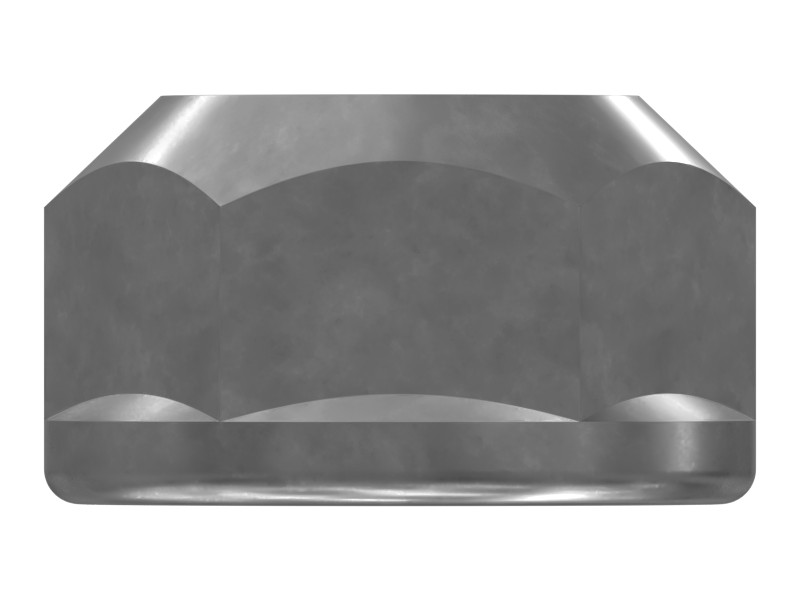

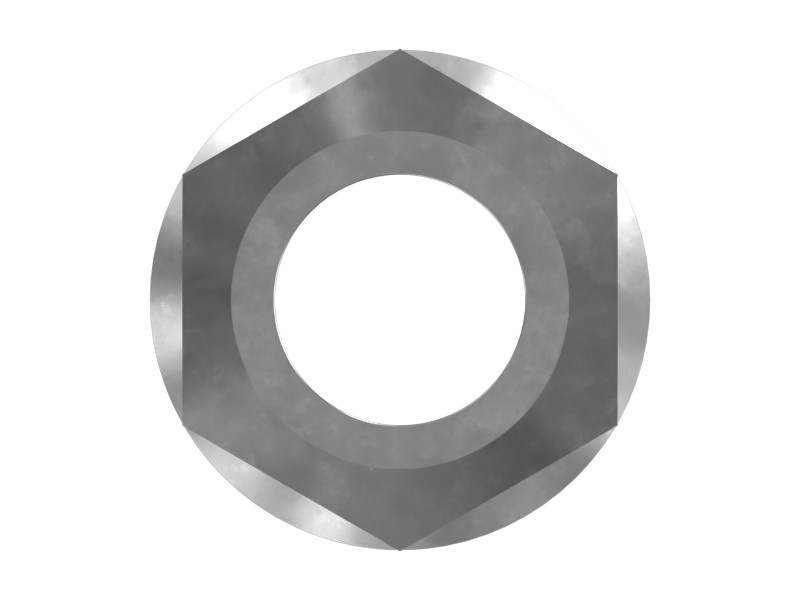

| Nut Model | Flange Lock Nut |
| Flange Diameter | 0.65 in |
| Thread Size (in – TPI) | 3/8-16 in |
| Material | STAINLESS STEEL |
| Material Description | 410 Stainless Steel |
| Coating | Flash Silver Plated + Lubricant Topcoat |
Compatible Equipment
- Generator Sets: 3406B, 3406C, 3516C, 3512B, G3516, 3512E, C9, C4.4, C7.1
- Track Loaders: 824C, 963, 994K, 993, 995, 992, 826G, 990K, 826H, 816F, 826K, 834H, 824G
- Cold Planers: PL87, PL83, PM622, PM620, PM-200
- Compactors: 816, 825K, 834K, 815, 824K, 814, C-15
- Engines: C15, C32, C13, C27, C18
- Excavators: 3456, 390D L, 390F L, 374D L, 374F, 374, 330B, 330 L, 3512C, 3516E, 3508B, 637K, 637E, 637G, 6015B, 3516B, 6015 FS, 365C, 385B, 390D, 385C, 365C L, 6030, 390F, 374F L, 6018, 6015, 350 L, 621G, 385C FS, 6020B, 385C L, 6060, 6040, 395, 657G, 3101
- Asphalt Pavers: AD30, AD45, AD63
- Skid Steer Loaders: 24
- Motor Graders: 140H, 140G, 120, 3606, 12H
- Wheel Excavators: MD6250, MD6310, MD6200
- Dozers: D10R, D11N, D10, D8L, D6R, D4E, D9L, D7G, D9R, D8N, D7R, D6G2 XL, D5H, D7H, D9T, D8T, D9N, D6G, D8R, D11R, D10T, D11T, D10N, D10T2, D11, D6G2 LGP, D6T, D7G2, D8, D9
- Wheel Loaders: 988H, 986H, 836, 980H, R2900G, R1300G, 972G, 980G, 966F, 992D, 992C, 988G, 988F, RM500B, R2900 XE, 988K, R3000H, 834, 990H
- Off-Highway Trucks: 773E, 785, 773, 740, 740 GC, 740B, 793, 777, 770G, 789, 789D, 793D, 785D, 772G, 794 AC, 771D, 777D, 773F, 735, 745C, 745, 777E, 773D, 775G
