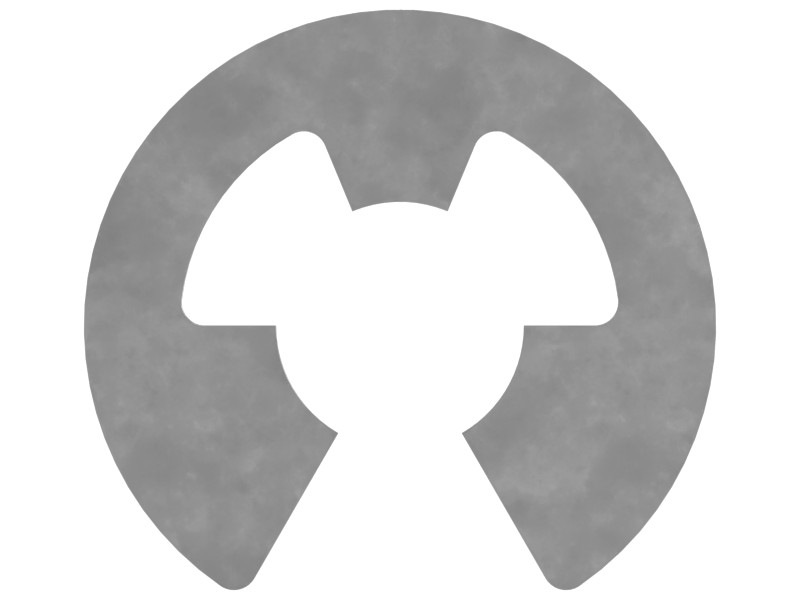

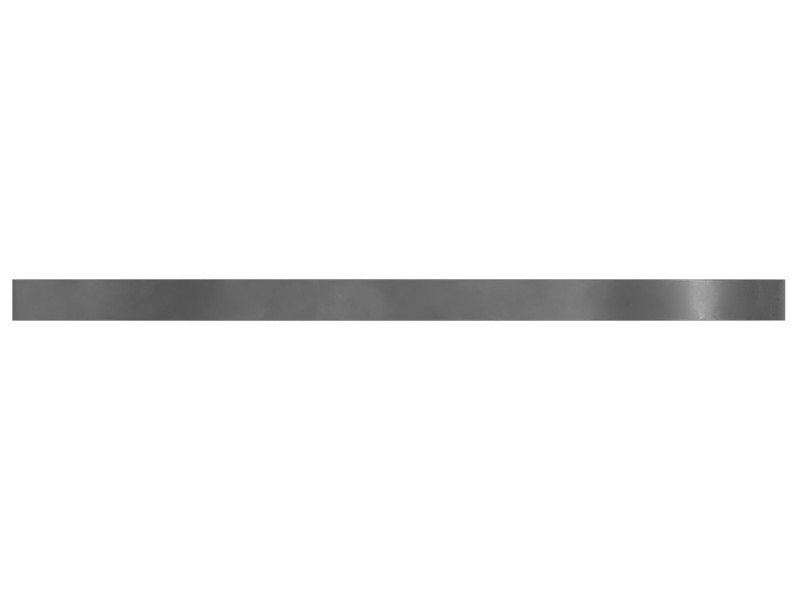

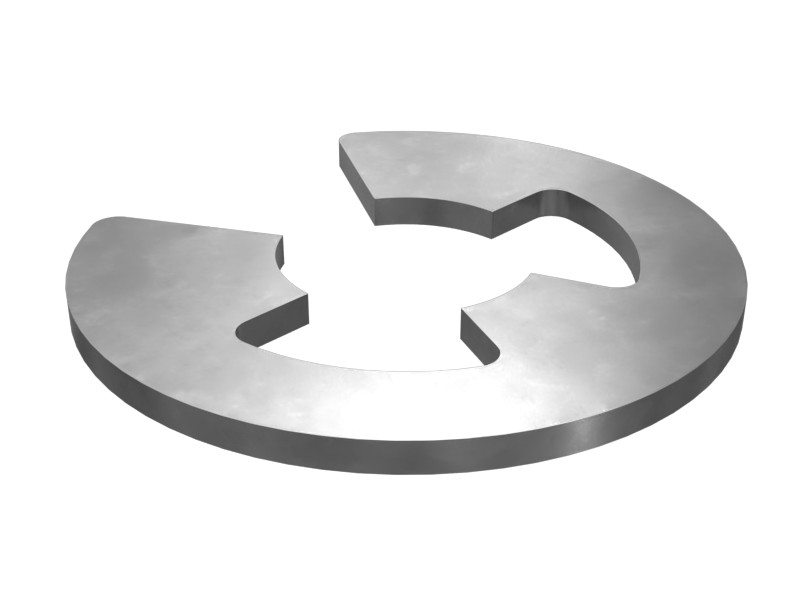

2M-7819 13.38 mm Free Diameter External Retaining Ring
Cat® 0.65 mm thick external retaining ring, secures springs in brake and control systems.
Description
Cat® retaining rings install in a machined groove in a housing/bore (internal) or on a shaft (external), providing high strength and long service life in a wide range of applications. Cat retaining rings are manufactured to precise specifications to be durable, reliable and efficient. You can count on this "Built For It" product to help you get more work done.
Features
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements
- ROHS compliant
Applications
- Assembles into a shaft or housing groove to secure parts or assemblies.
Specifications
| Material | Carbon Steel |
|---|---|
| Remarks | Free Diameter: 5.26, Radial Wall: 0, Lug Height: 0, Groove Width: 0.78, Groove Diameter: 5.37, Shaft Diameter: 6.4, Housing Diameter: 0 |
| Thickness | 0.65 mm |
| Cross Hole | None |
| Material Description | Steel Retaining Ring |
| Coating | Zinc Electroplated (96 Hour Salt Spray Test) |
| Snap Ring Type | Radial Universal Clamp |
Compatible Equipment
- Generator Sets: 3406B, 3406C, C7.1, C4.4
- Track Loaders: 953, 824C, 963, 826G, 824G, 816F
- Cold Planers: PL87, PL83
- Compactors: CS74B, CB-66B, CS78B, CW-34, CS12, CB-64B, CB16, CP56B, CS11, CB-44B, CS79B, CS68B, CP54B, CS54B, CS56B, 814, 816, 815, CB15, CB13, CB10, CS-54B, CS64B
- Engines: C32
- Asphalt Pavers: AP-600D
- Skid Steer Loaders: 239D3, 259D3, 272D3 XE, 262D3, 299D3 XE, 272D3, 249D3, 232D, 246D, 236D, 289D3, 279C, 242D3, 246D3, 262D, 236D3, 246C, 262C
- Motor Graders: 140G, 120H, 120, 14, 140H, 12H, 14M, 16M, 140K, 12K, 160K, 16H
- Wheel Excavators: M320, M317D2, M315D, M315D2, IT14G, M320D2, M322D, M313D, M315
- Dozers: D11R, D11T, D10R, D10T, D5M, D9R, D8T, D6R, D6M, D7R II, D5H, D8R, D6R II, D6T, D8N, D7H, D6R III, D4E, D7G, D10N, D11N, D7R, D6G2 XL, D5N, D6N, D5G, D9T, D3G, D6T LGP, D6R LGP, D6R XL, D9N, D6G2 LGP, D6G, D7G2, D4G
- Compact Track Loaders: 299D3, 279D3
- Excavators: 330 L, 637E, 350 L, 330B, 637G, M325D L MH, 621H
- Wheel Loaders: 988F, 992C, RM400, 928G, 972G, 924GZ, 950, 836, 924HZ, 980G, 966F, 928HZ, 910, R1300G
