Description

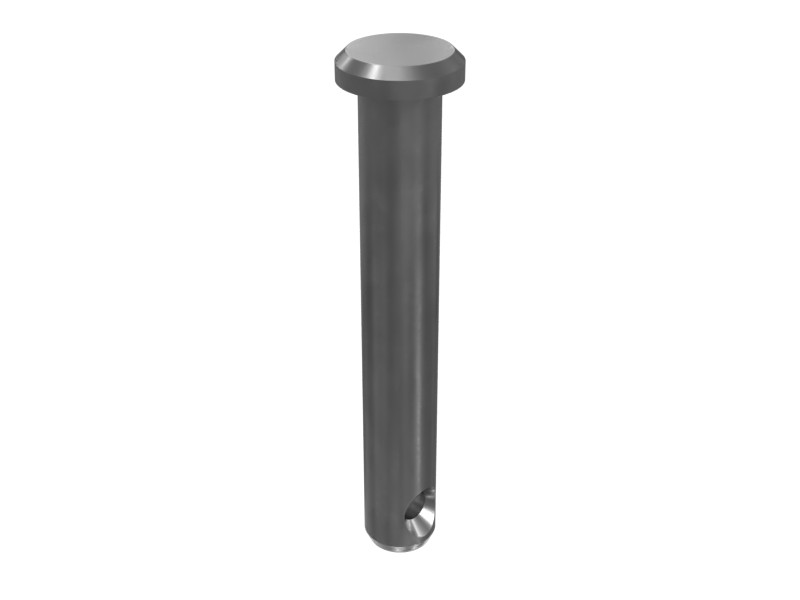

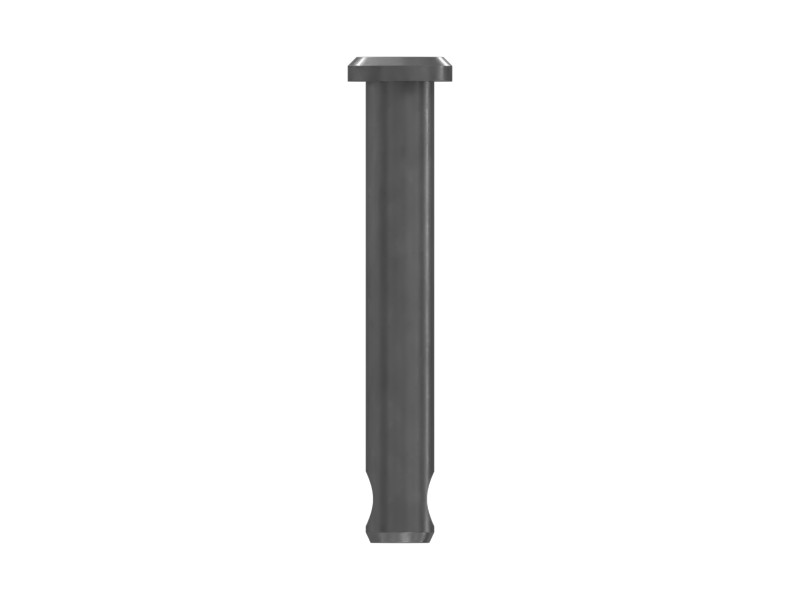

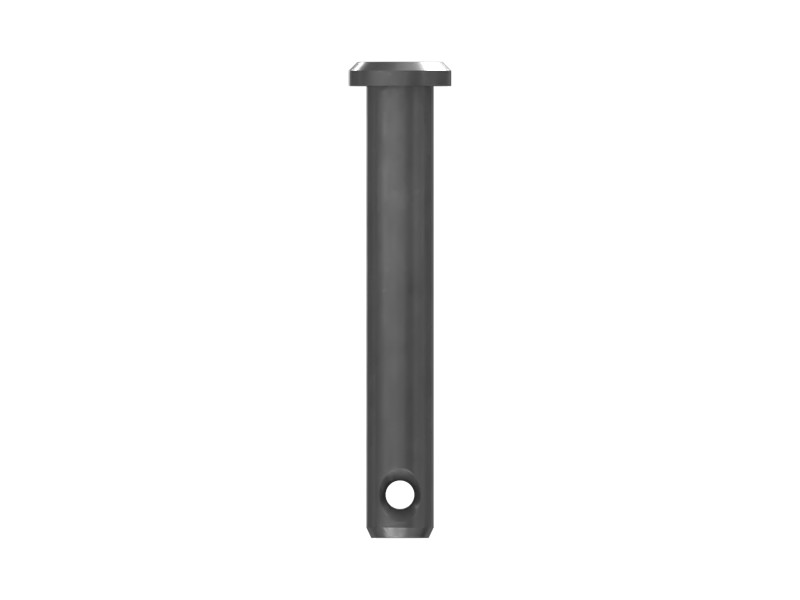

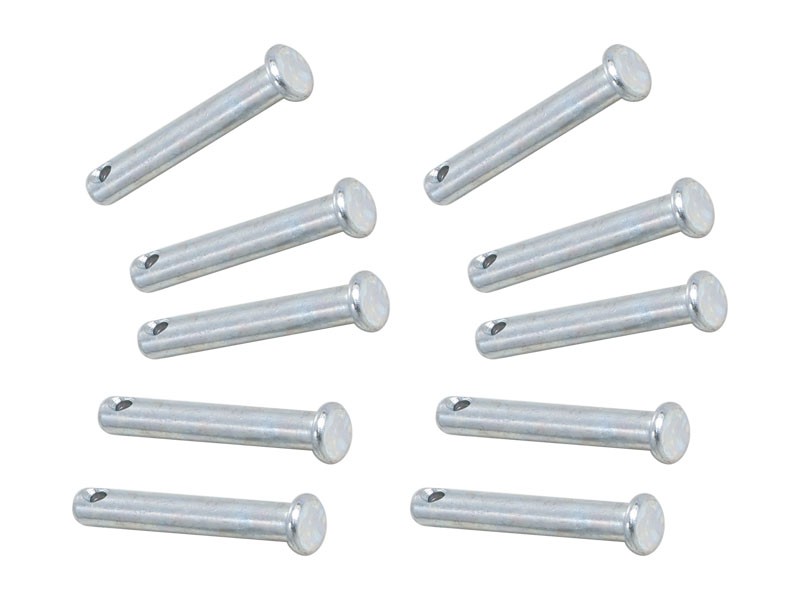

A clevis pin with cross hole is a solid cylindrical pin with a cylindrical head mitered on one end, and a drilled hole at the headless end for placing a clevis pin. Suitable for use with clevis pins.
Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Material | Alloy Zinc |
|---|---|
| Pin Type | Cross Hole |
| Pin Diameter | 6.22 mm (0.245 in) |
| Pin Length | 42 mm (1.654 in) |
| Head Diameter | 9.5 mm |
| Coating | Zinc Electroplated (24 Hour Salt Spray Test) |
| Cross Hole | 2.7 |
| Pin Length – B | 42 in |
| Material Description | Steel – Pins and Dowels |
| Remarks | Pin Diameter: 6.22, Length to Cross Hole: 38 |
| Head Height | 2.2 mm |
Compatible Equipment
- Track Loaders: 953, 824C, 963, 963K, 973K, 992, 953K
- Cold Planers: PL72, PL87, PL83
- Compactors: CB16, CB15, CB13
- Excavators: 320D, 390D L, 374F, 390F L, 374D L, 637E, 6020B, 320D FM, 330 L, 365B L, 6040, 325B L, 385C, 385C L, 365B, 320B, 385B, 390D, 385C FS, 365C, 374F L, 365C L, 390F, 350 L, 3508B
- Asphalt Pavers: AD63, AD30, AD45
- Skid Steer Loaders: 24
- Motor Graders: 16
- Wheel Excavators: MD6310, MD6200, MD6250
- Dozers: D6T, D8, D8R, D9T, D6T LGP, D7G, D7H, D7R, D9L, D7E, D9R, D6R, D6K2, D6R II, D7R II, D8N, D5K2 XL, D8L, D8T, D9, D11T, D4, D11, D1, D5H, D6R III, D7, D9N, D6R LGP, D10T, D3K2 LGP, D10N, D11R, D11N, D10T2, D10, D10R, D6R XL, D6N
- Wheel Loaders: 910, 836, R2900G, R1700K, 834, R1700G, R1700 II, 992C, R3000H, 988F, R1600H, R1300G, R2900 XE
- Off-Highway Trucks: 773E, 793F, 793D, 773, 773D, 777E, 777D, 789D, 773F, 771D, 785D, 777, 789, 775G, 797F, 785, 7495, 793
Additional information
| Machine Model | 16, 24, 320B, 320D, 320D FM, 325B L, 330 L, 350 L, 3508B, 365B, 365B L, 365C, 365C L, 374D L, 374F, 374F L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 6020B, 6040, 637E, 7495, 771D, 773, 773D, 773E, 773F, 775G, 777, 777D, 777E, 785, 785D, 789, 789D, 793, 793D, 793F, 797F, 824C, 834, 836, 910, 953, 953K, 963, 963K, 973K, 988F, 992, 992C, AD30, AD45, AD63, CB13, CB15, CB16, D1, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D3K2 LGP, D4, D5H, D5K2 XL, D6K2, D6N, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7, D7E, D7G, D7H, D7R, D7R II, D8, D8L, D8N, D8R, D8T, D9, D9L, D9N, D9R, D9T, MD6200, MD6250, MD6310, PL72, PL83, PL87, R1300G, R1600H, R1700 II, R1700G, R1700K, R2900 XE, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
