Description

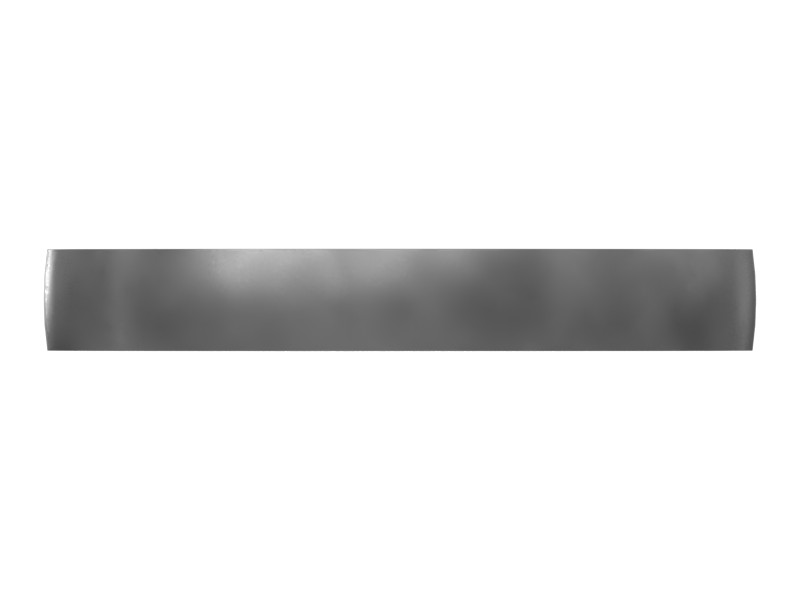

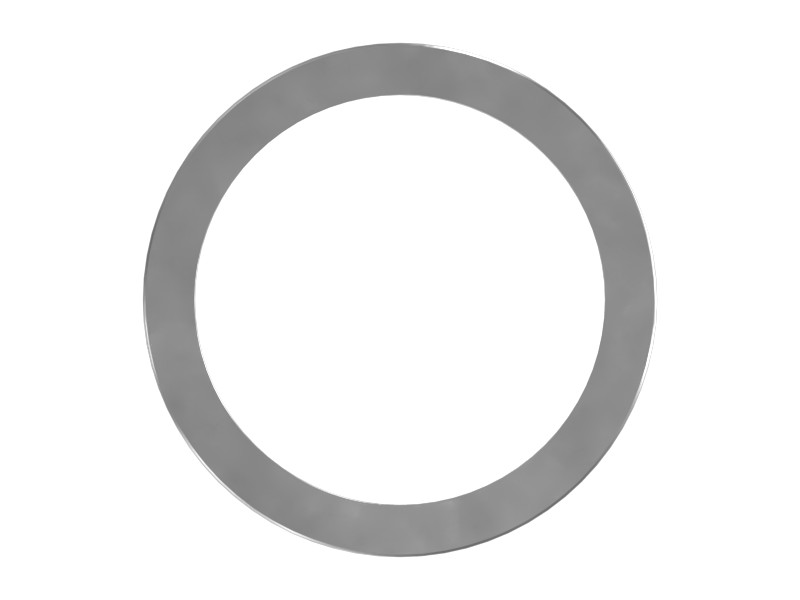

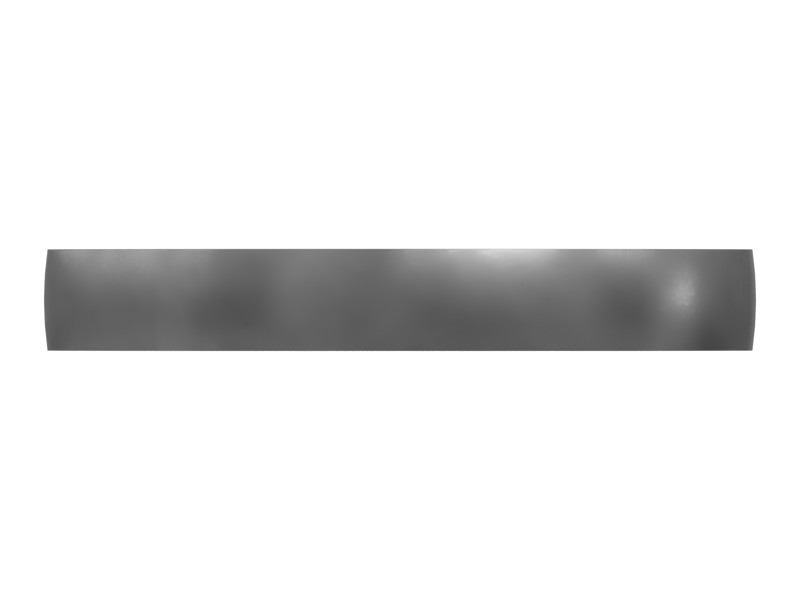

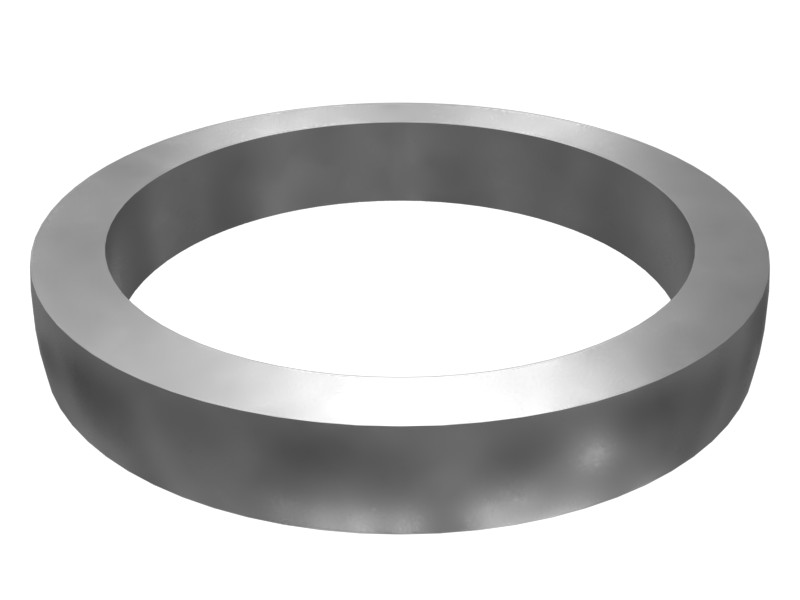

A shim allows fine adjustment of fuel pump timing, thereby optimizing combustion and engine performance. A fuel injection pump shim is a component used in the fuel delivery system of an internal combustion engine. Its main function is to provide a precise and controlled distance between the fuel injection pump and the engine cylinder block. The shim is made of high-strength material that can withstand the pressure and vibration in the fuel system.
Features
- Made of durable materials for long-lasting performance.
- Precise fit for accurate alignment.
- Maintains the integrity of the fuel system.
Applications
The fuel injection pump gasket is used to maintain proper alignment and normal operation of the fuel injection system in an internal combustion engine.
Specifications
| Gasket Type | Flat |
|---|---|
| Center Hole Shape | Non-Threaded |
| Inside Diameter | 26.09 mm (1.03 in) |
| Length | 4.622 mm (0.1820 in) |
| Outside Diameter | 32.64 mm (1.29 in) |
| Thickness | 4.62 mm (0.18 in) |
Compatible Equipment
- Motor Graders: 120, 16, 140G
- Generator Sets: 3406B
- Track Loaders: 953, 824C
- Compactors: 814, 816, 815
- Dozers: D10N, D4E, D9R, D7G, D9N, D8L, D9L
- Excavators: 637E
- Wheel Loaders: 950, 910, 834, 980, 988F, 992C, 992D, 836
