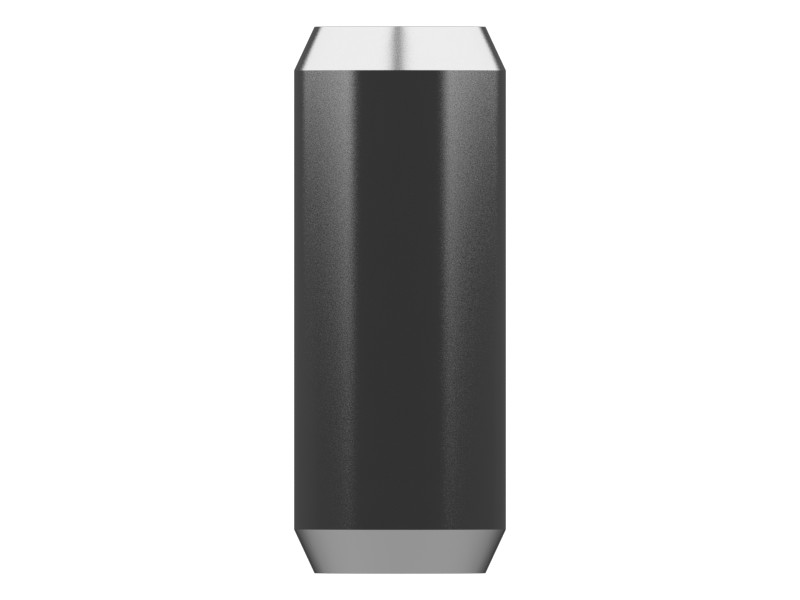

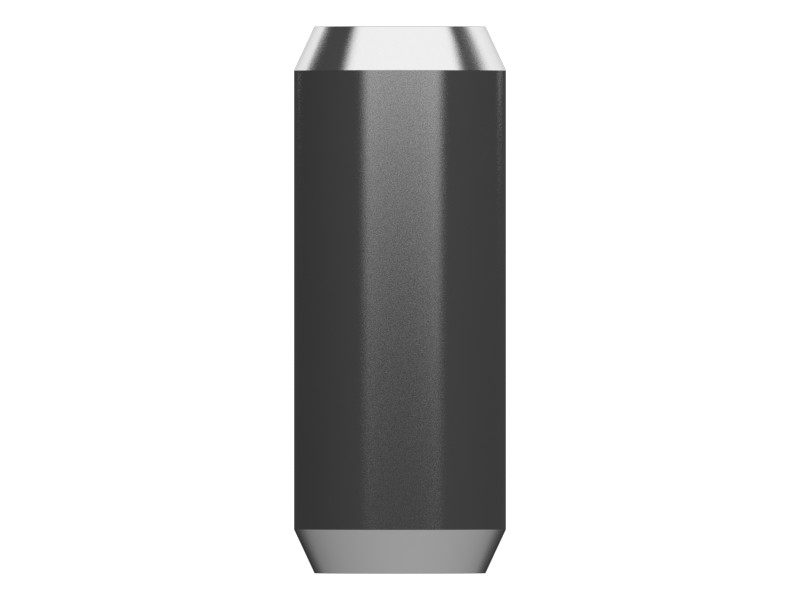

2H-1190 16.00 mm Long Steel Dowel

Description

A dowel pin is a headless straight pin with a tightly controlled diameter, which can be press-fitted into one or two parts to transmit loads or fix the position of adjacent parts. Cat fasteners and hardware are designed for specific applications based on size, strength, clamping force, and past performance, information that other manufacturers do not have. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to fit your machine, but other companies do not know your equipment the way we do.

Features

Hardened steel pin
Pin Diameter: 6.193 mm (0.24 in)
Length: 16 mm (0.63 in)
End Type 1: Lead Angle
End Type 2: Lead Angle

Specifications

Material	Carbon Steel
Material Description	Steel
Pin Diameter	6.2 mm (0.24 in)
Length	16 mm (0.63 in)
Pin Outside Diameter	6.19 mm (0.244 in)
Pin Length	16 mm (0.63 in)
Pin Type	Solid

Compatible Equipment

Motor Graders: 16, 120, 140G, 349 GC, 14
Track Loaders: 992, 953, 963, 826H, 826K, 982, 972, 824G, 973K, 990K, 993
Wheel Excavators: MD6310
Compactors: 814, 825K, 815, 816, C9.3B, 824K
Engines: C15, C32, C12
Dozers: D6R, D4E, D8L, D7H, D9R, D5H, D6G, D7G, D9N, D7R, D10, D6N, D9L, D11R, D7, D10R, D10T2, D11T, D10N, D10T, D11N, D11
Excavators: 340, 637E, 637K, 637G, 6040, 6020B, 3516E, 434F2, 336, 416F2, 350, 345 GC, 3516B, 350MHPU
Wheel Loaders: 992K, 966 GC, 980M, 982M, 986K
Off-Highway Trucks: 773, 771D, 730, 735, 785D, 773E, 785, 789D, 773D, 793D, 777E, 777, 789, 725, 797F
Asphalt Pavers: AD30

Machine Model	120, 14, 140G, 16, 336, 340, 345 GC, 349 GC, 350, 350MHPU, 3516B, 3516E, 416F2, 434F2, 6020B, 6040, 637E, 637G, 637K, 725, 730, 735, 771D, 773, 773D, 773E, 777, 777E, 785, 785D, 789, 789D, 793D, 797F, 814, 815, 816, 824G, 824K, 825K, 826H, 826K, 953, 963, 966 GC, 972, 973K, 980M, 982, 982M, 986K, 990K, 992, 992K, 993, AD30, C12, C15, C32, C9.3B, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D4E, D5H, D6G, D6N, D6R, D7, D7G, D7H, D7R, D8L, D9L, D9N, D9R, MD6310
Equipment Type	Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines
Part Source	Genuine OEM

Machine Model

120, 14, 140G, 16, 336, 340, 345 GC, 349 GC, 350, 350MHPU, 3516B, 3516E, 416F2, 434F2, 6020B, 6040, 637E, 637G, 637K, 725, 730, 735, 771D, 773, 773D, 773E, 777, 777E, 785, 785D, 789, 789D, 793D, 797F, 814, 815, 816, 824G, 824K, 825K, 826H, 826K, 953, 963, 966 GC, 972, 973K, 980M, 982, 982M, 986K, 990K, 992, 992K, 993, AD30, C12, C15, C32, C9.3B, D10, D10N, D10R, D10T, D10T2, D11, D11N, D11R, D11T, D4E, D5H, D6G, D6N, D6R, D7, D7G, D7H, D7R, D8L, D9L, D9N, D9R, MD6310

Equipment Type

Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines

Part Source

Genuine OEM
