Description

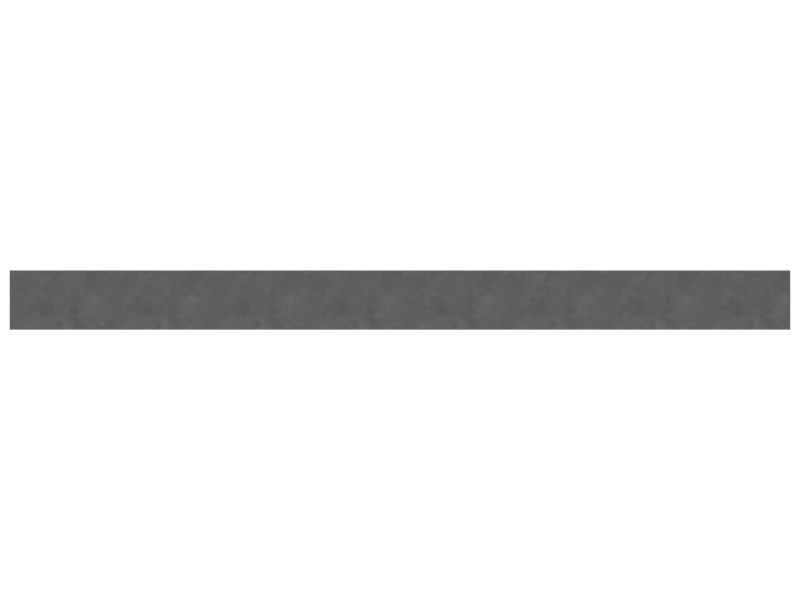

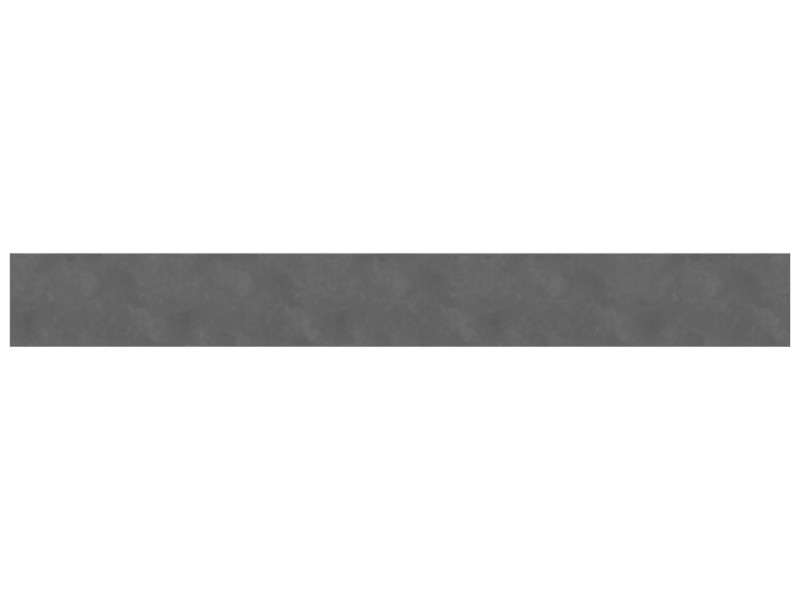

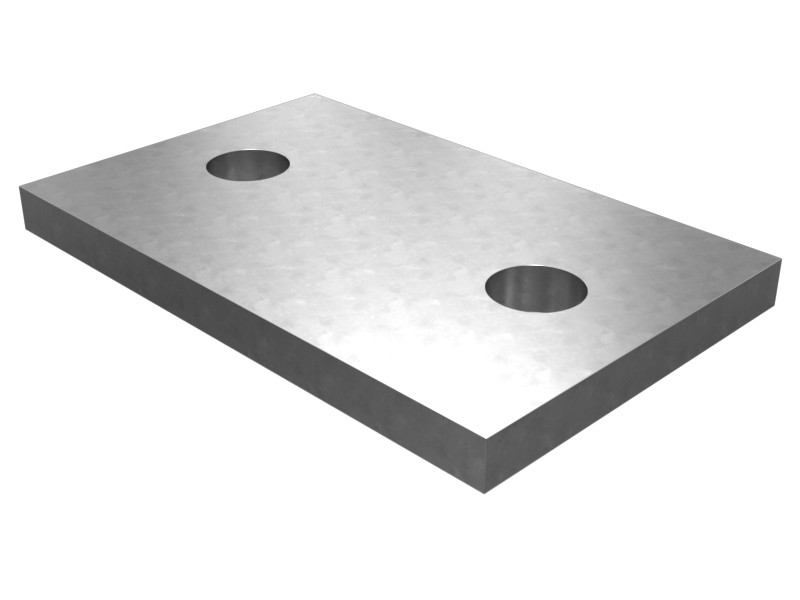

The pin retaining plate is a flat plate used to prevent the pin from coming off or being lost during operation, ensuring that it stays firmly in its intended position in the assembly. The plate is installed together with the pin group at locations subject to vibration, shock or other forces that could cause it to loosen or come off. The plate is available in a variety of sizes, thicknesses and features depending on the application.
Features

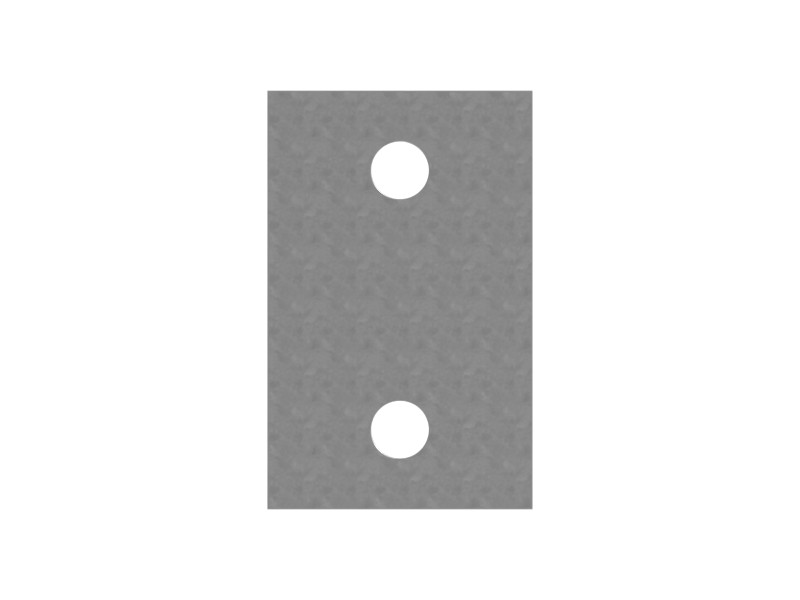

- Comes with 2 mounting holes for use with M10 fasteners.
- Provides reliable retention for the pin.
- High strength, wear-resistant.
Applications
The pin retaining plate is used to support and secure the pins in the radiator guard, fenders, ROPS mounts and center frame.
Specifications
| Hole Size | 11 mm (0.43 in) |
|---|---|
| Length | 79 mm (3.11 in) |
| Thickness | 6 mm (0.24 in) |
| Width | 50 mm (1.97 in) |
Compatible Equipment
- Cold Planers: PL87, PL72, PL83
- Dozers: D8, D7, D6R III, D8T, D6T, D6T LGP, D6R, D8R, D7R II, D7H, D6R LGP, D7R, D6R II, D8N, D6R XL
- Excavators: 3508B
