Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

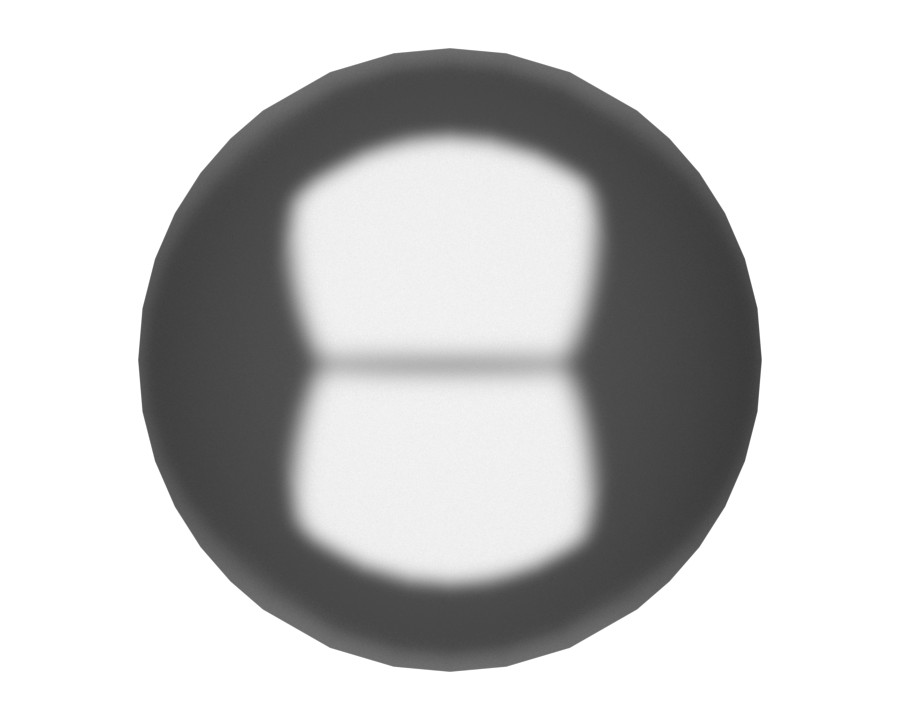

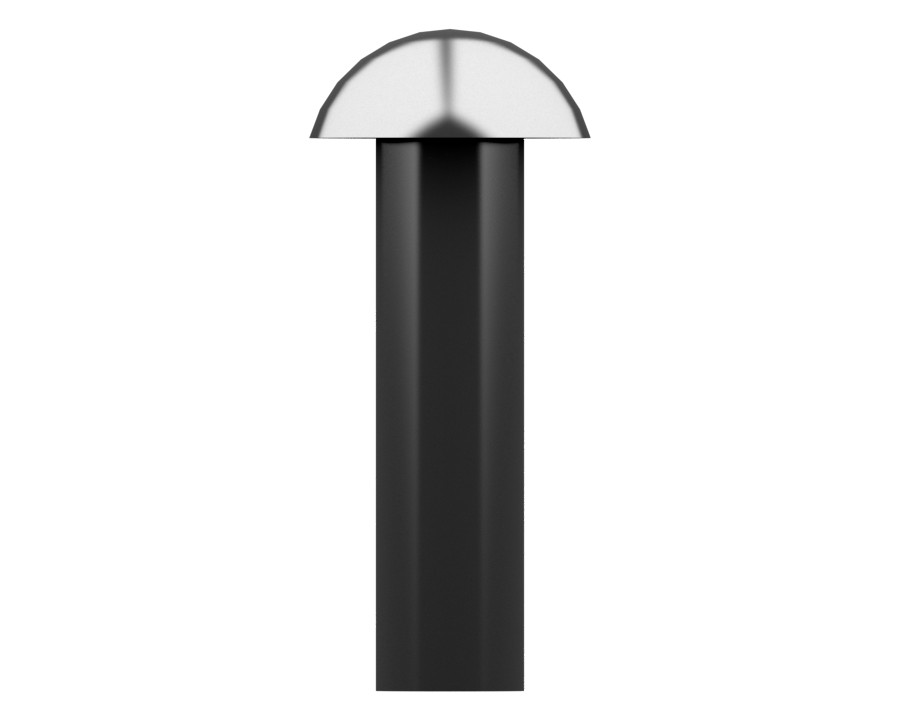

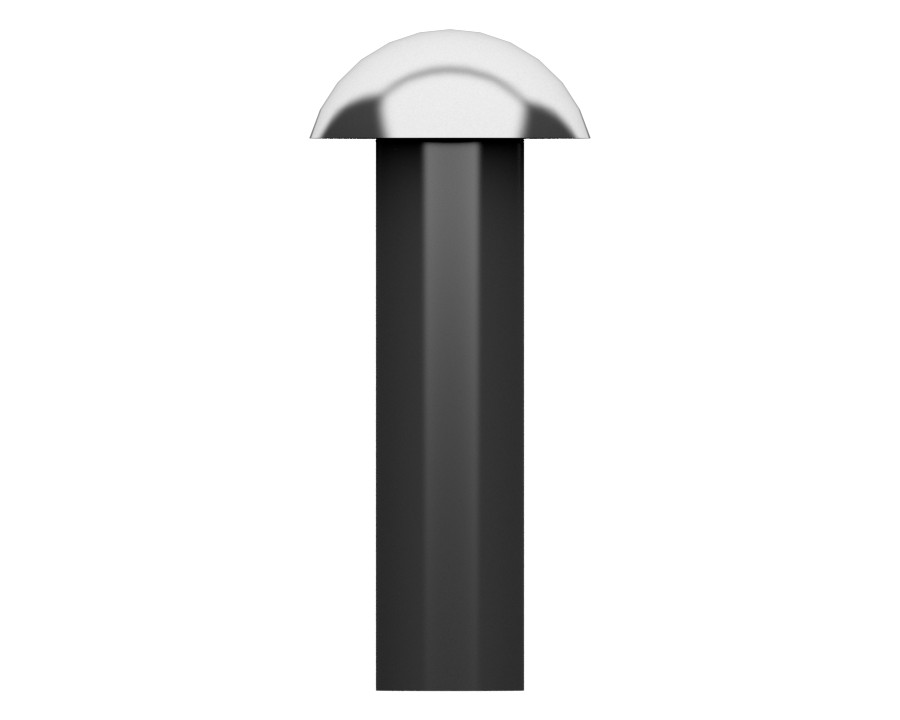

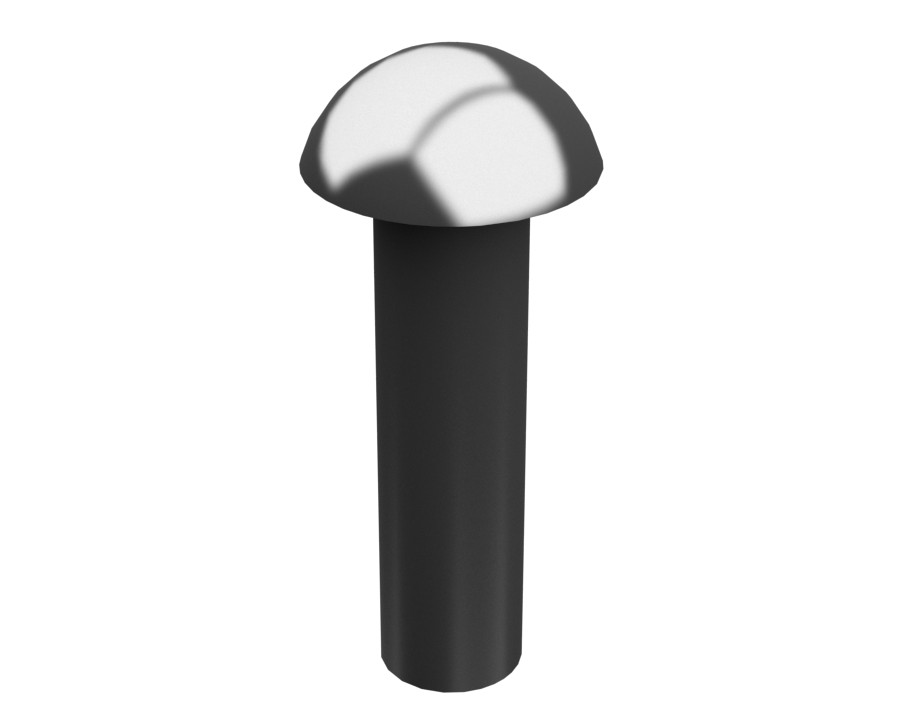

This is a head pin, typically used to nail on serial number plates.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a performance-based system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Material | Alloy Mixed: Metal |
|---|---|
| Head Diameter | 3.11 mm |
| Overall Length | 6.35 mm |
| Remarks | Pilot Hole Diameter: 1.7018 |
| Coating | Zinc Electroplated |
| Head Height | 1.14 mm |
| Shank Diameter | 1.905 mm |
| Material Description | Steel |
Compatible Equipment
- Generator Sets: G3516, 3516C, 3512B, 3406C, 3406B, 3512E, C4.4
- Motor Graders: 3606, 16, 140G, 120
- Track Loaders: 963, 953, 824C, 992, 995
- Compactors: 814, 816, 815
- Engines: C27, C15, C11, C18, C175-16
- Dozers: D7G, D5H, D4E, D8L, D10R, D9L, D9N, D11N, D10, D10N, D7
- Excavators: 637E, 3512C, 3516B, 3508B, 374F L, 6020B, 374F, 3456
- Wheel Loaders: 950, 834, 990H, R2900G, 980H, 992D, 992C
- Off-Highway Trucks: 773F, 777, 789, 785, 797F, 730, 793F, 793, 777D, 725, 794 AC
- Asphalt Pavers: AD30, AD45
Additional information
| Machine Model | 120, 140G, 16, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3606, 374F, 374F L, 6020B, 637E, 725, 730, 773F, 777, 777D, 785, 789, 793, 793F, 794 AC, 797F, 814, 815, 816, 824C, 834, 950, 953, 963, 980H, 990H, 992, 992C, 992D, 995, AD30, AD45, C11, C15, C175-16, C18, C27, C4.4, D10, D10N, D10R, D11N, D4E, D5H, D7, D7G, D8L, D9L, D9N, G3516, R2900G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
