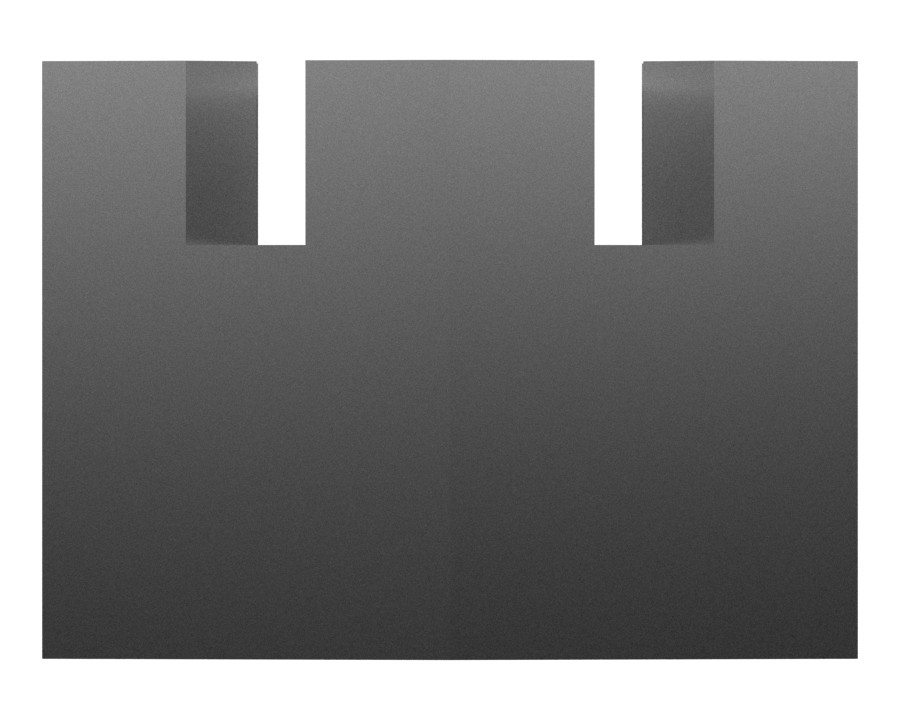

2D-9238 3/4-16″ Thread Hex Castle Lock Nut
Cat® steel hex slotted high castle locknut for differentials and bevel gears
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These nuts are used with cotter pins to prevent the nut from backing off.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
- Recommended by engineers familiar with the product.
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Class or Grade | Cat/SAE J995 Grade 8+ (170 ksi) |
|---|---|
| Thread Size (Diameter × Pitch) | 3/4×16 mm |
| Thread Direction | RH |
| Thread Size | 0.750 mm (0.03 in) |
| Drive Chain | 28.1175 mm (1.107 in) |
| Material Description | High-strength steel nuts with ISO metric or Unified Inch threads |
| Remarks | Slotted Nut Thickness: 4.7625 |
| Hole Thread Pitch | 16 |
| Thickness | 20.6375 mm (0 in) |
| Nut Model | Hex |
| Thread Size (in – TPI) | 3/4-16 in |
Compatible Equipment
- Track Loaders: 992
- Compact Track Loaders: 299D3
- Wheel Loaders: 834
- Off-Highway Trucks: 773, 777
- Skid Steer Loaders: 272D3, 299D3 XE, 272D3 XE
Additional information
| Machine Model | |
|---|---|
| Equipment Type | Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Off-Highway Trucks |
| Part Source | Genuine OEM |
