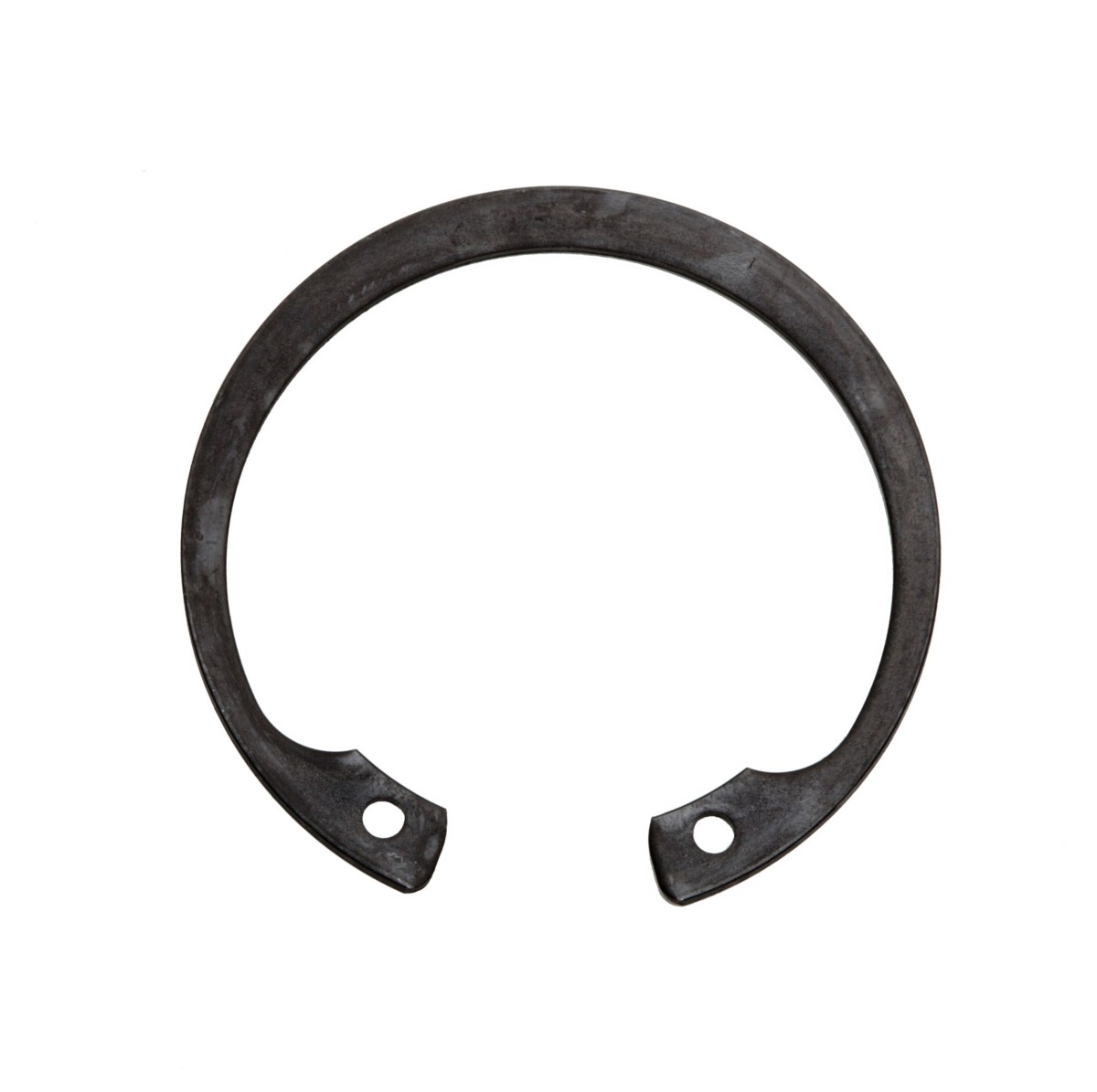

2D-0592 53.98 mm OD Internal Retaining Ring
Cat® internal retaining ring secures components, holding parts in place, preventing movement and ensuring assembly integrity.
Description
The internal retaining ring is used to secure components internally. It holds parts in place, prevents movement and keeps the assembly intact. These retaining rings are well designed and help deliver stable assembly performance. They keep components firmly positioned, preventing displacement and maintaining proper function.
Features
- Holds components internally with a reliable retaining function.
- Prevents movement and keeps components intact.
- Well made and durable.
- Holds parts in place to prevent them from falling off.
Applications
The internal retaining ring is used to prevent parts from moving or shifting, keeping the assembly intact.
Specifications
| Thickness – B | 0.062 in |
|---|---|
| Hole Diameter | 2.00 in |
| Shape | Spiral |
| Free Diameter – A | 2.13 in |
| Remarks | Free Diameter: 53.98, Radial Wall: 3.5, Lug Height: 0, Groove Width: 1.73, Groove Diameter: 53.59, Housing Diameter: 50.8 |
| Thickness | 1.57 mm |
| Material Description | Steel Retaining Ring |
| Cross Hole | None |
| Snap Ring Type | Internal |
| Material | Carbon Steel |
Compatible Equipment
- Motor Graders: 16, 120
- Dozers: D9T
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
