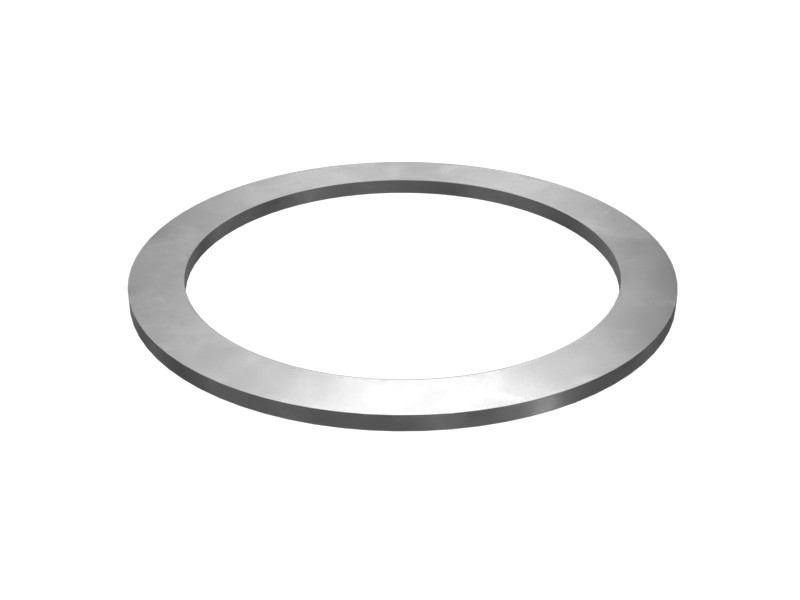

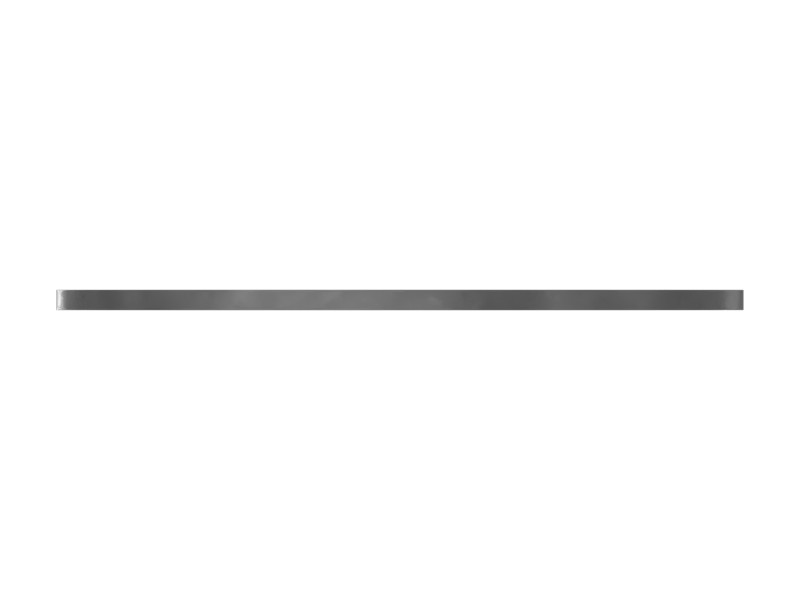

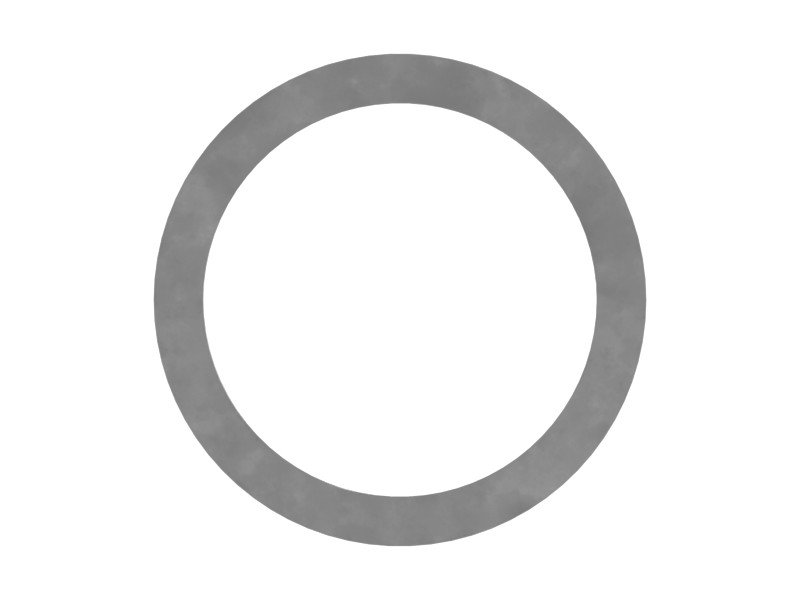

2A-1763 3 mm Thick Fuel Cap Gasket
Cat® 3 mm Thick Fuel Cap Gasket for Fuel Tanks and Bases
Description
Gaskets use compression between the mating parts to achieve a tight, leak-free seal. Cat gaskets are designed with the right combination of material and form to deliver the desired performance for your application.
Specifications
| Hole Size | None mm (None in) |
|---|---|
| Inside Diameter | 82.6 mm (3.25 in) |
| Material | NBR |
| Outside Diameter | 103.2 mm (4.06 in) |
| Style | Flat Plate |
| Thickness | 3.0 mm (0.12 in) |
| Type | Round Standard |
Compatible Equipment
- Motor Graders: 140G
- Generator Sets: 3406B, 3406C
- Track Loaders: 953, 963, 992, 824C
- Compactors: 815, 814, 816
- Dozers: D7G, D4E, D8L, D7H, D9L, D10
- Wheel Loaders: 910, 950, 834, 980, 836, 992C
- Off-Highway Trucks: 785, 777
