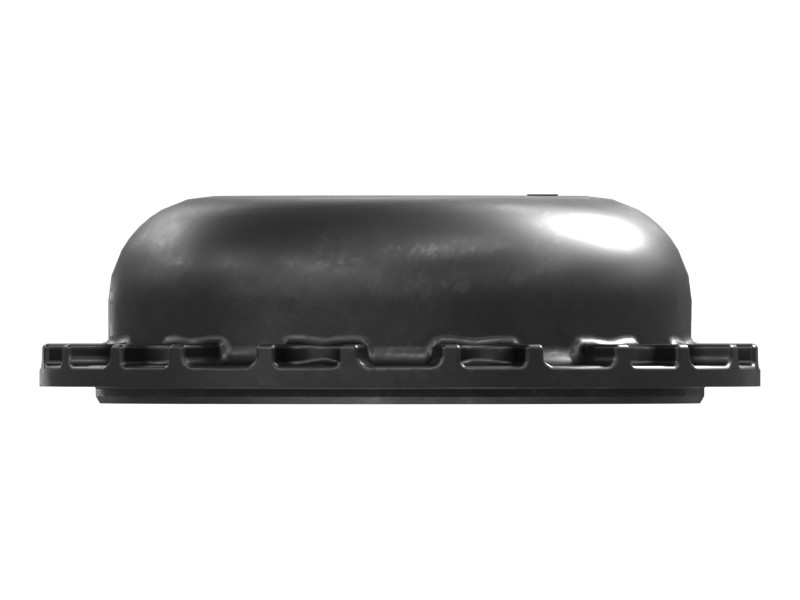

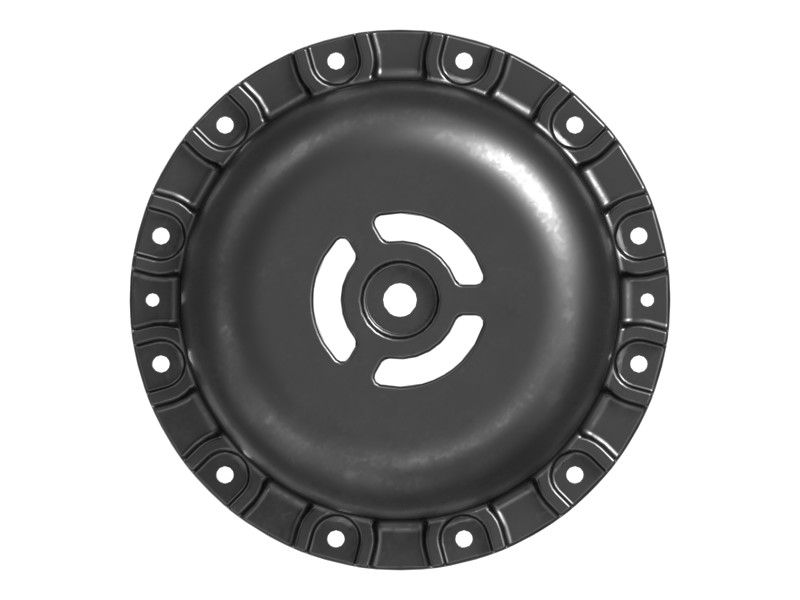

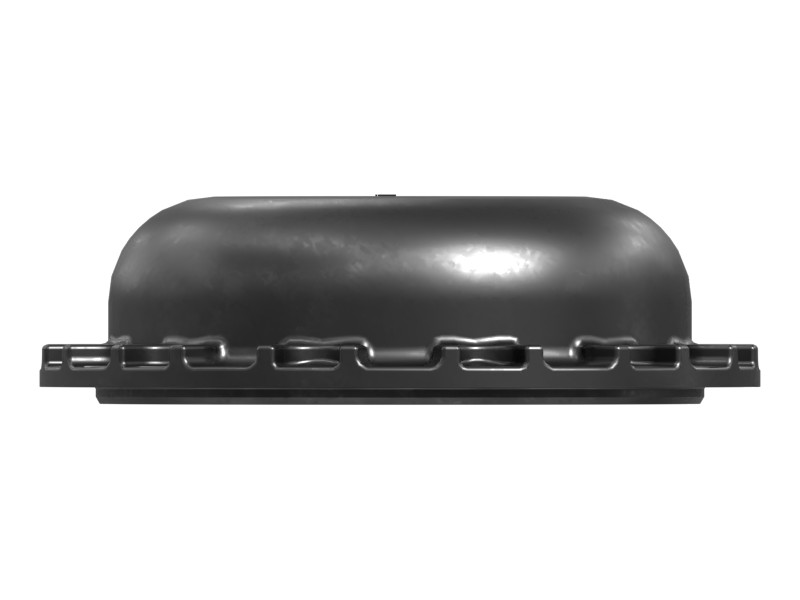

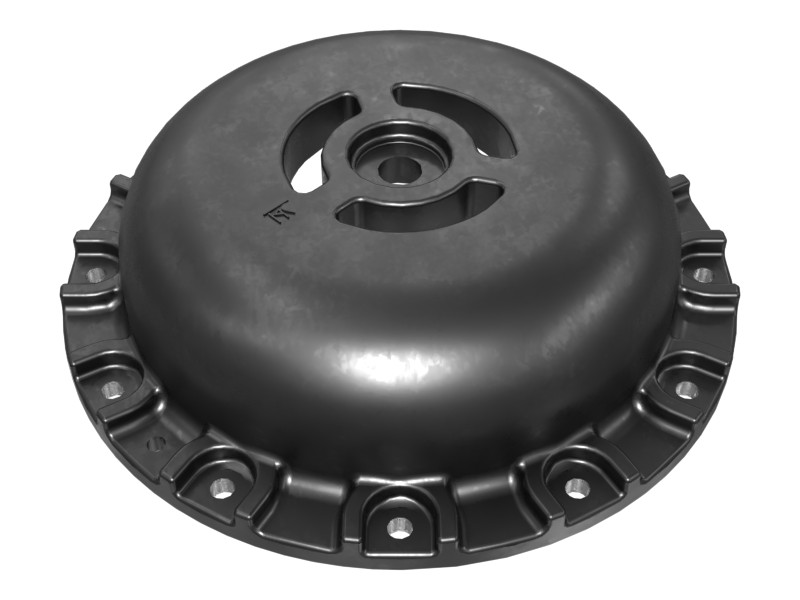

299-4737 Front Wheel Cover
Cat® cast iron front wheel cover, oil level monitoring, outside diameter: 425 mm
Description
299-4737 is a cast iron front wheel cover that can accommodate an oil level sight window.
The sealing cap retains fluids and lubricants and keeps dust, moisture, and contaminants out of critical machine systems.
Features
- Cast iron cover
- Outside Diameter: 425 mm (16.7 in)
- Drain plug thread: 1-1/8-12
- Jack screw thread: 1/2-13
- Window retainer thread: M10
- For use with 1/2 inch mounting fasteners, 14 locations
Applications
For use on certain off-highway truck models. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Ductile (Spheroidal) Iron |
|---|---|
| Outside Diameter | 425 mm (16.7 in) |
| Overall Height | 112 mm (4.4 in) |
| Hole Size | 14 (12X) mm (0.6 (12X) in) |
Compatible Equipment
- Excavators: 3516E
- Off-Highway Trucks: 793D, 789D, 793F, 785
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
