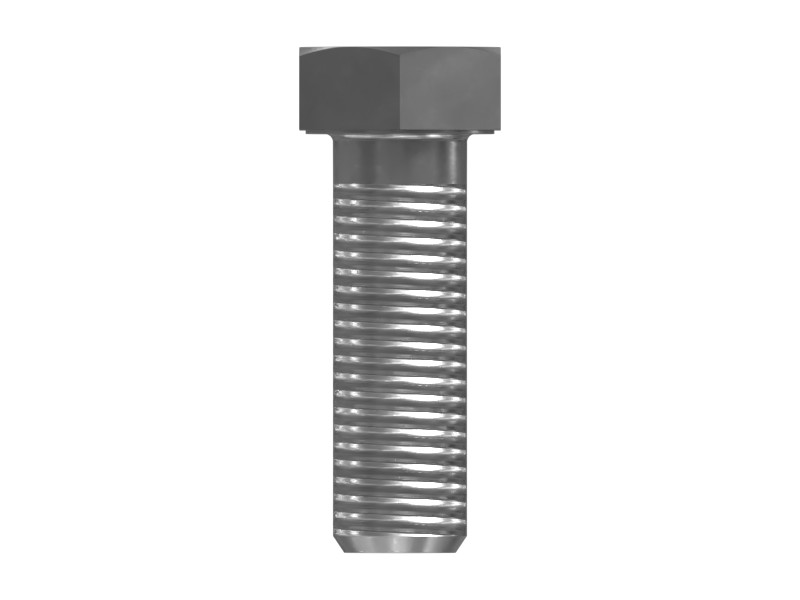

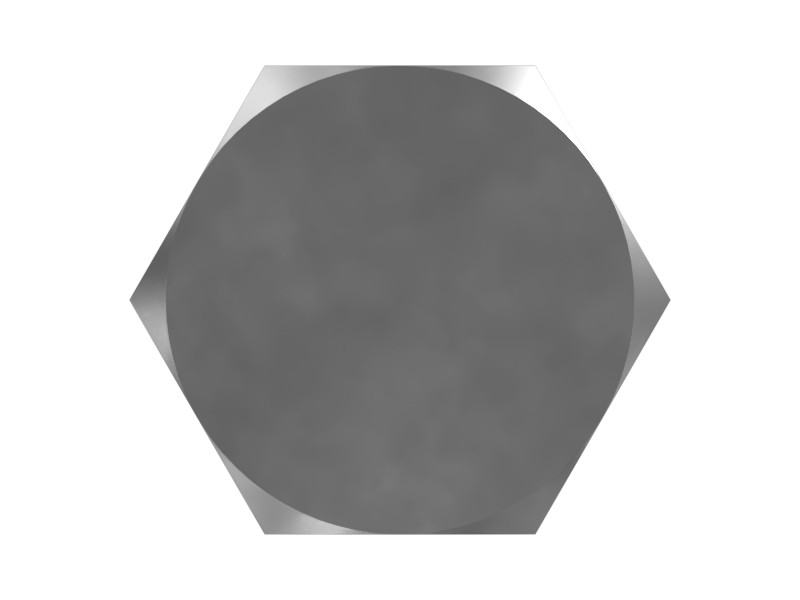

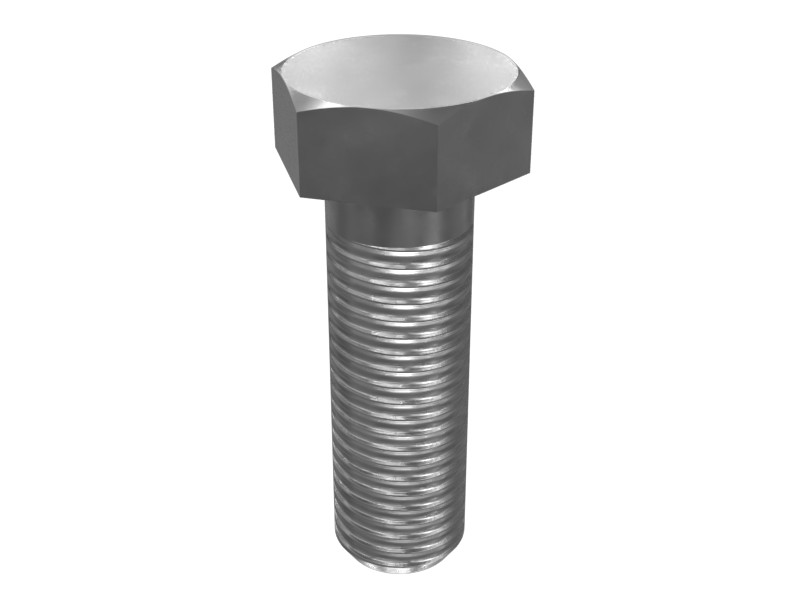

298-7137 MJ16x2 Thread Hex Head Bolt
Cat® flywheel housing hex head bolt fastens into a threaded hole, providing a firm, reliable connection between two or more components.
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | Adhesive |
| Thread Size | M16 mm (0 in) |
| Class or Grade | Cat/ISO 898-1 Class 11.9 |
| Thread Size (Diameter × Pitch) | M16X2 mm |
| Bolt Length | 50 mm (1.969 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Flake |
| Handle Length | 6 mm (0.236 in) |
Compatible Equipment
- Generator Sets: 3516C, C9
- Track Loaders: 990K, 826K, 992, 993
- Cold Planers: PL61
- Motor Graders: 16M
- Compactors: C9.3B, C-9
- Engines: C13
- Dozers: D10T2, D11T, D11, D10T
- Excavators: 323D L, 320, 323, 323D, 6020B, 6015B, 3516E, 6015, 6030, 6040, 3508B, 314D LCR, 315F LCR
- Wheel Loaders: R1700K
- Off-Highway Trucks: 777, 775G, 740, 770G, 740B, 772G, 789D, 797F, 789, 773
- Skid Steer Loaders: 24
Additional information
| Machine Model | 16M, 24, 314D LCR, 315F LCR, 320, 323, 323D, 323D L, 3508B, 3516C, 3516E, 6015, 6015B, 6020B, 6030, 6040, 740, 740B, 770G, 772G, 773, 775G, 777, 789, 789D, 797F, 826K, 990K, 992, 993, C-9, C13, C9, C9.3B, D10T, D10T2, D11, D11T, PL61, R1700K |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
