Description

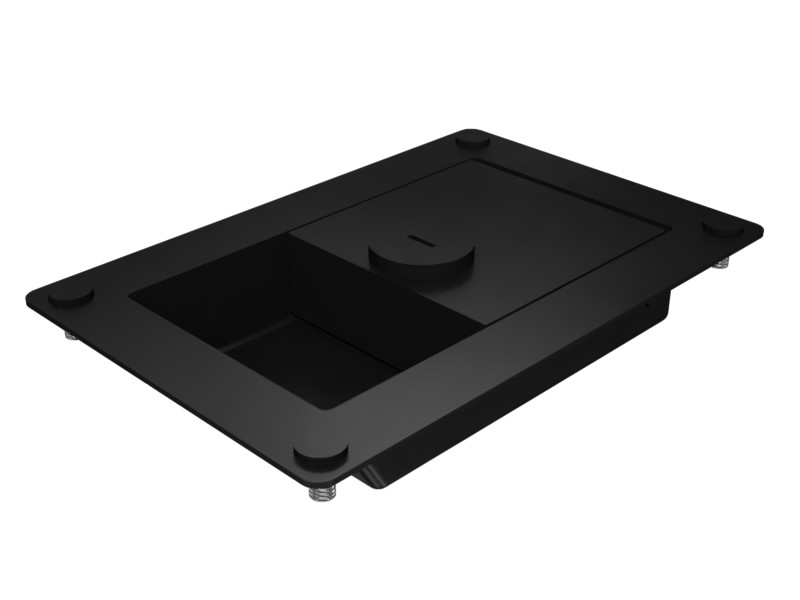

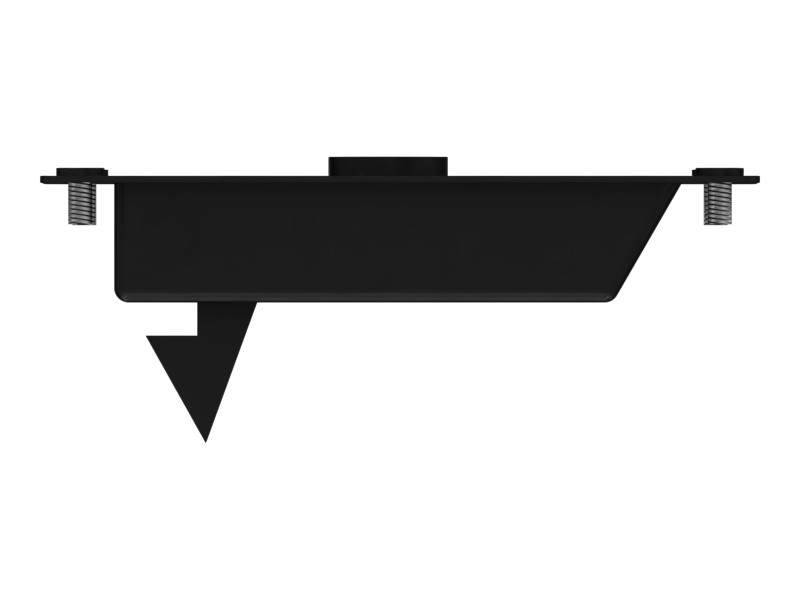

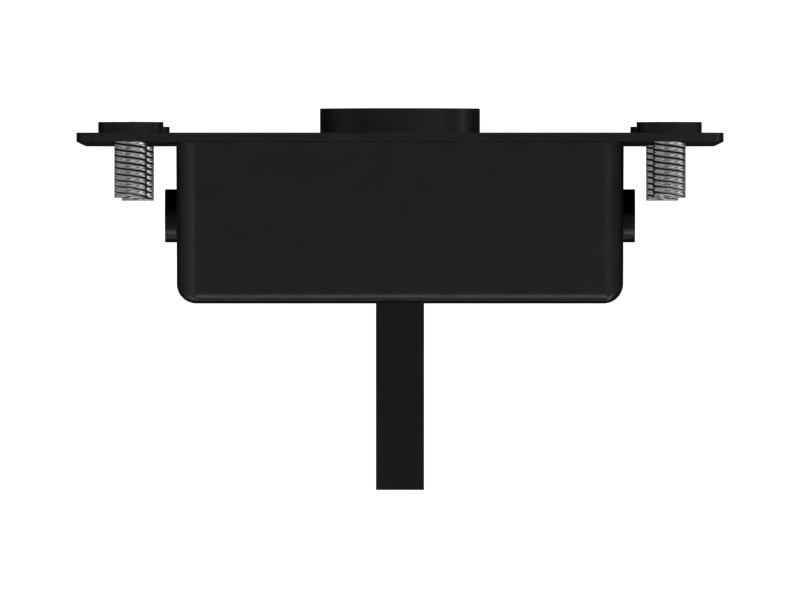

The Cat Lock Group secures panels, doors, and enclosures on Cat machines.
Features
- Push-to-close latch
- Flush mounting
- Spring-actuated latch mechanism
- Mounting: M6 studs
- Lockable with the included company key
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Length | 180 mm (7.1 in) |
| Width | 120 mm (4.72 in) |
| Height | 67 mm (2.64 in) |
Compatible Equipment
- Wheel Excavators: M322D, M313D, M320D2, M315D, M317D2, M315D2, M320
- Excavators: 330D L, 324D L, 323D L, 329D L, 314C, 312D, 336D L, 325D L, 320C, 312D L, 312C L, 330C, 311D LRR, 320D L, 320D RR, 311C, 315C, 320D FM, 325D, 314D CR, 313D2, 330C L, 318D2 L, 328D LCR, 325C, 314D LCR, 324D, 315D L, 330D, 312C, 320D GC, 318D L, 312D2 L, 313D, M325D L MH, 318D2, 325C L, 312D2, 320C L, 312D2 GC, 326D L, 323D, 340D L, 320D, 329D, 336D
Additional information
| Machine Model | 311C, 311D LRR, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 314C, 314D CR, 314D LCR, 315C, 315D L, 318D L, 318D2, 318D2 L, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 323D, 323D L, 324D, 324D L, 325C, 325C L, 325D, 325D L, 326D L, 328D LCR, 329D, 329D L, 330C, 330C L, 330D, 330D L, 336D, 336D L, 340D L, M313D, M315D, M315D2, M317D2, M320, M320D2, M322D, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
