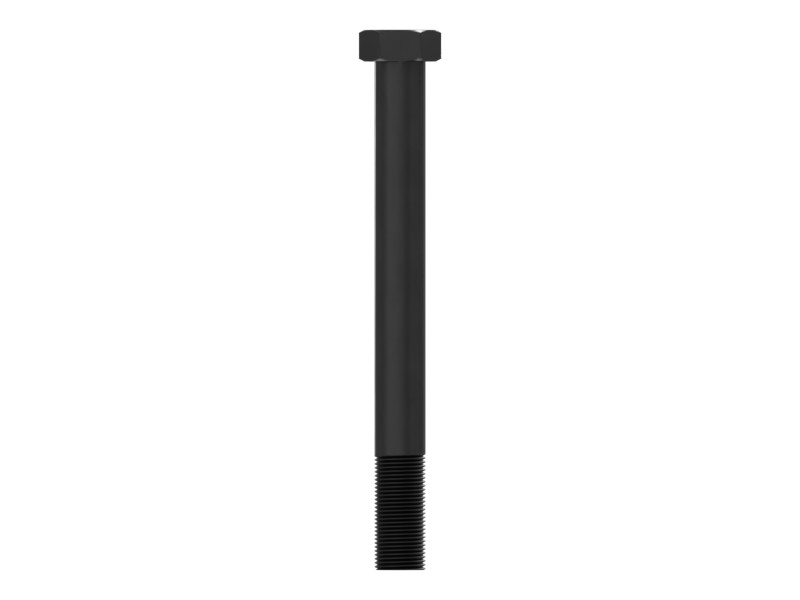

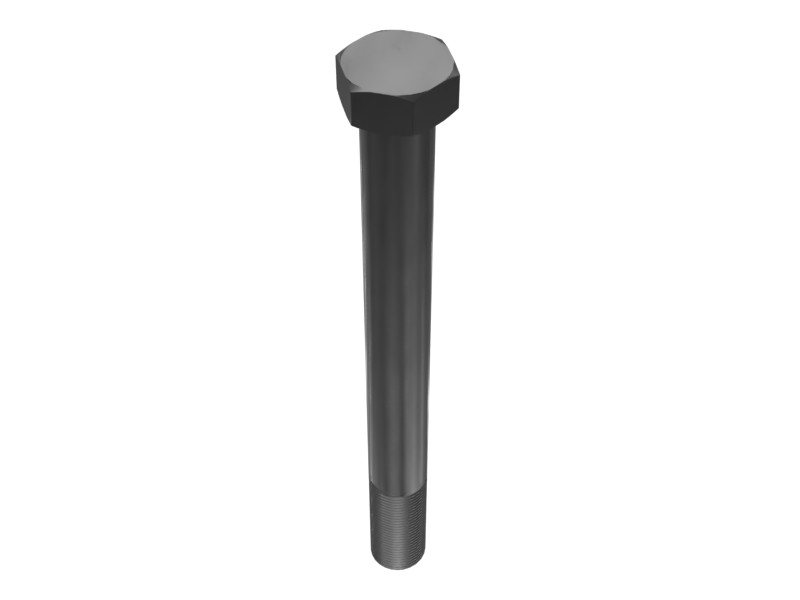

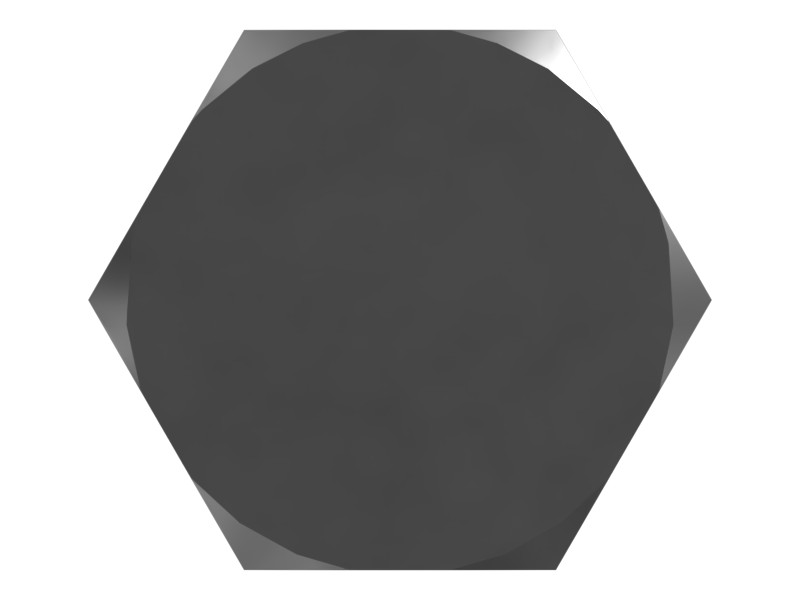

297-7646 M8 Hex Head Bolt
Cat® M8 hex head bolt, secured with a split lock washer for safe fastening.
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
A hex bolt is a threaded bolt characterized by a six-sided hexagonal head. Hex head bolts can be fully threaded or partially threaded. They come in a variety of hex sizes and can be used in custom applications according to their size requirements. Bolts with lock washers should be tightened to the required torque, just below that of conventional fasteners.
Attributes
- Made of steel for high strength
- Comes with split lock washer with a diameter of 14.5 mm
Applications
Hex bolts are used to secure objects inside or against other objects so they do not come loose.
Specifications
| Thread Direction | RH |
|---|---|
| Thread | Rough Milled |
| Thread Size (in – TPI) | M8-1.25 in |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Thread Size | M8 mm (0 in) |
| Locking Feature | Captive Lockwasher |
| Bolt Length | 90 mm (3 1/2 in) |
| Bolt Type | Hex Head |
| Handle Length | 68 mm (2.68 in) |
Compatible Equipment
- Excavators: 320D FM, 314D LCR, 315D L, 311D LRR, 312D L, 320D L, 323D L, 312D, 313D, 318D L, 320D GC, 314D CR, 320D RR, 323D, 320D
