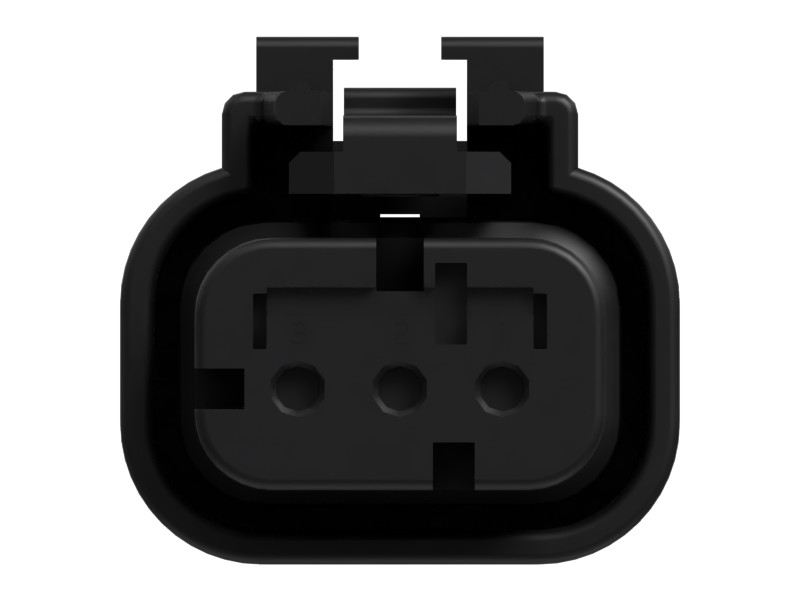

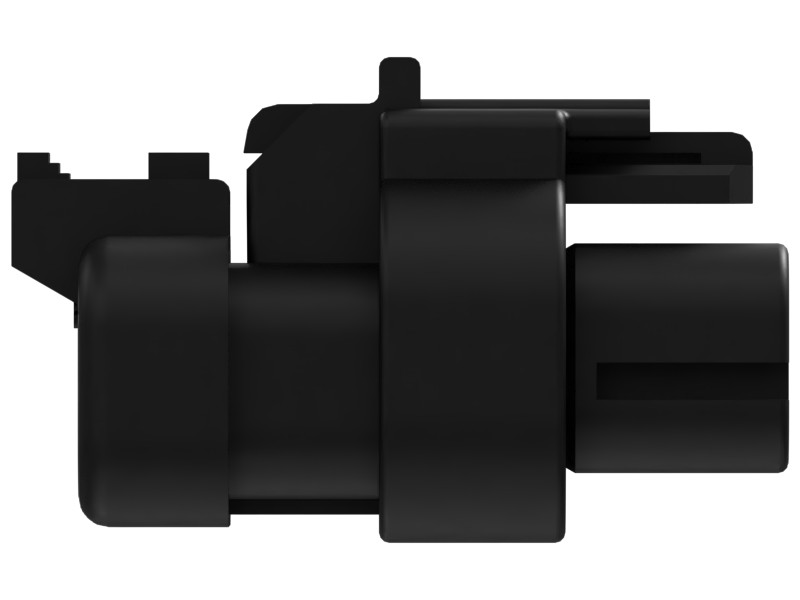

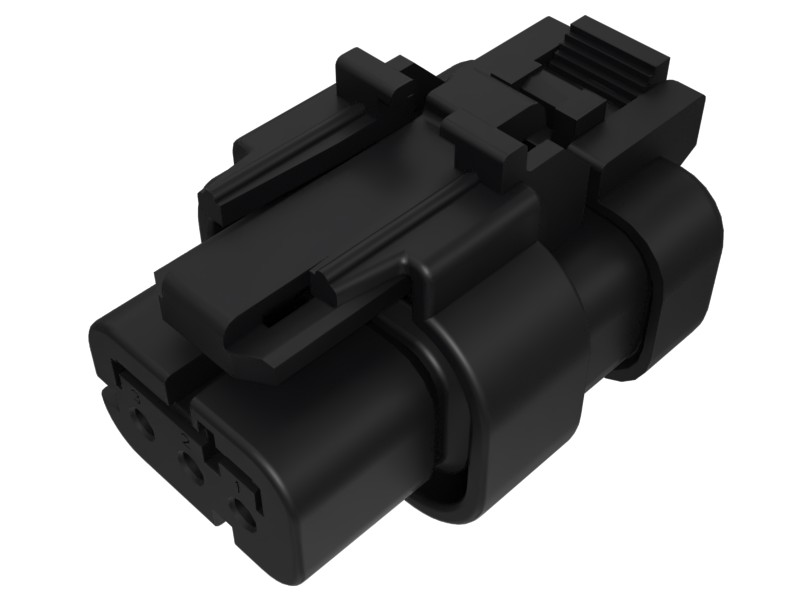

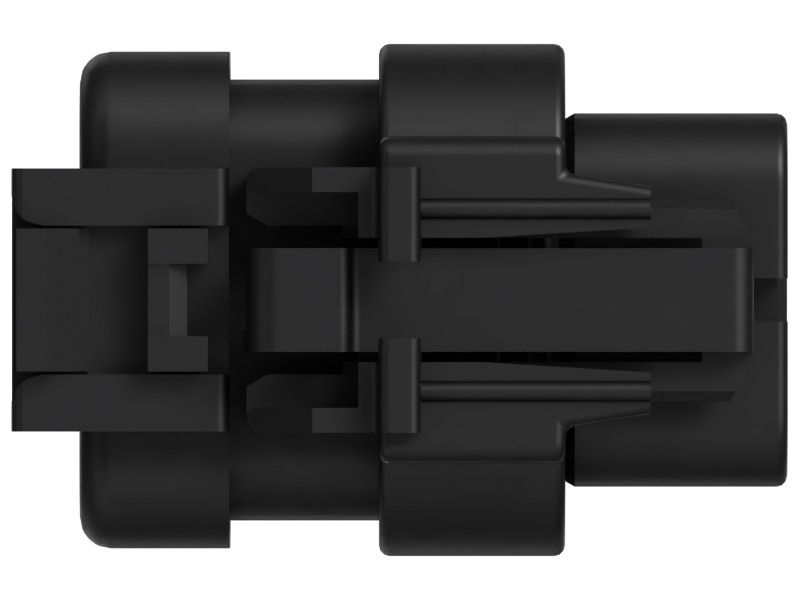

297-5484 3-Pin Connector Plug
Cat® 24.8 mm Wide 3-Pin Connector Plug for Manifold Air Pressure Sensor Wiring Harnesses
Description
Cat plug group connectors provide a pin and socket connection system for extremely durable, sealed electrical connections in Cat heavy-duty equipment
Features
- Polycarbonate/polyester blend 1-key, 3-pin connector plug
- Brown plug body
- Orange terminal position assurance feature
- Tan peripheral seal
- Green wire seals
- V-0 flame retardant
- Durable and long-lasting
Applications
Cat connector plug groups use reliable wires between wires or between a wire and equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Mixed Plastic Plastic |
|---|---|
| Overall Width | 24.8 mm (1 in) |
| Overall Length | 34.3 mm (1.4 in) |
| Overall Depth | 23.5 mm (0.9 in) |
| Material Description | Polycarbonate/Polyester Blend |
| Wire Gauge | 14-18 AWG |
| Pin | 3 |
| Connector Type | 3 Pin |
Compatible Equipment
- Generator Sets: 3516C, 3512E, 3512B
- Engines: C32, C18, C175-16
- Excavators: 3512C, 3516E
- Off-Highway Trucks: 794 AC, 796 AC, 793F, 797F, 798 AC
