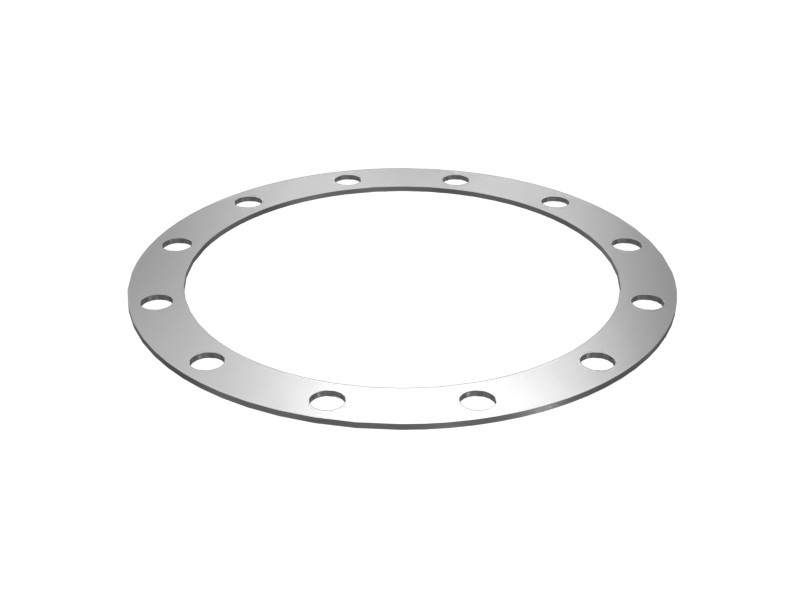

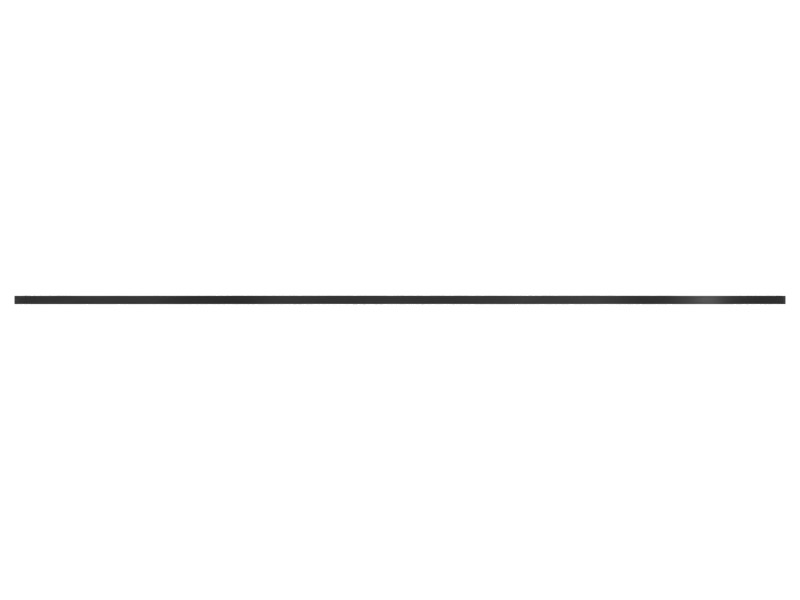

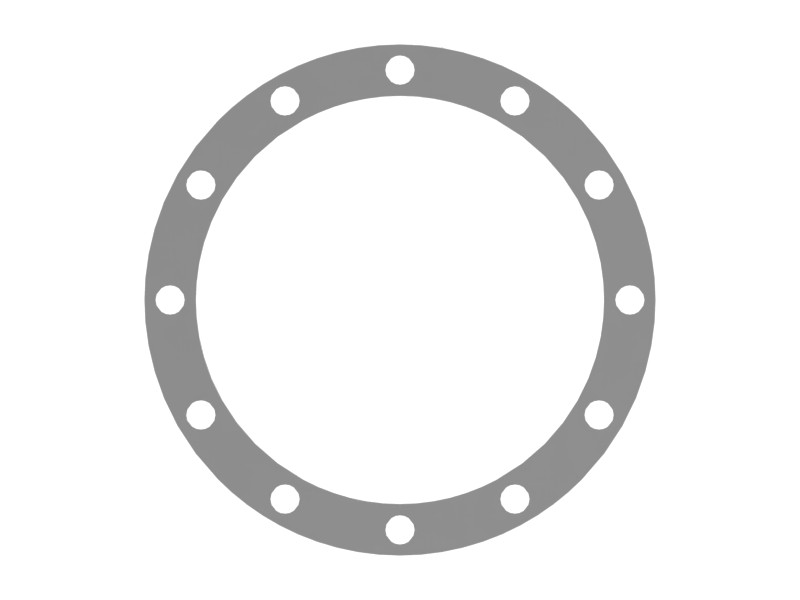

297-5156 Transmission Coupling Assembly Shim Pack
Cat® transmission coupling assembly shim pack, steel shims, ID x OD x thickness: 144.1 x 180 x 1.85 mm, for use with 3/8-16 UNC fasteners.
Description
Parts such as 297-5156 are used in the transmission coupling assembly of power train components. Cat shims secure mechanical parts firmly in place to achieve a tight fit between machined parts and reduce excessive wear on adjacent parts and fasteners. Cat shims are made from premium materials to provide superior protection, long wear life, and the high performance you need.
Features
- Material: Shim Steel.
- For use with 3/8-16 UNC fasteners.
- Overall Thickness: 1.85 mm (0.073 in).
- Outside Diameter: 180 mm (7.087 in).
- Shim pack includes 10 0.15 mm (0.006 in) thick shims, 7 0.05 mm (0.002 in) thick shims.
- Gasket is flat, with no dents or wrinkles.
Applications
- Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hole Size | 10.5 mm (0.41 in) |
|---|---|
| Inside Diameter | 144.1 mm (5.67 in) |
| Material | Shim Steel |
| Outside Diameter | 180 mm (7.09 in) |
| Thickness | 1.85 mm (0.07 in) |
Compatible Equipment
- Cold Planers: TH55-E70
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
