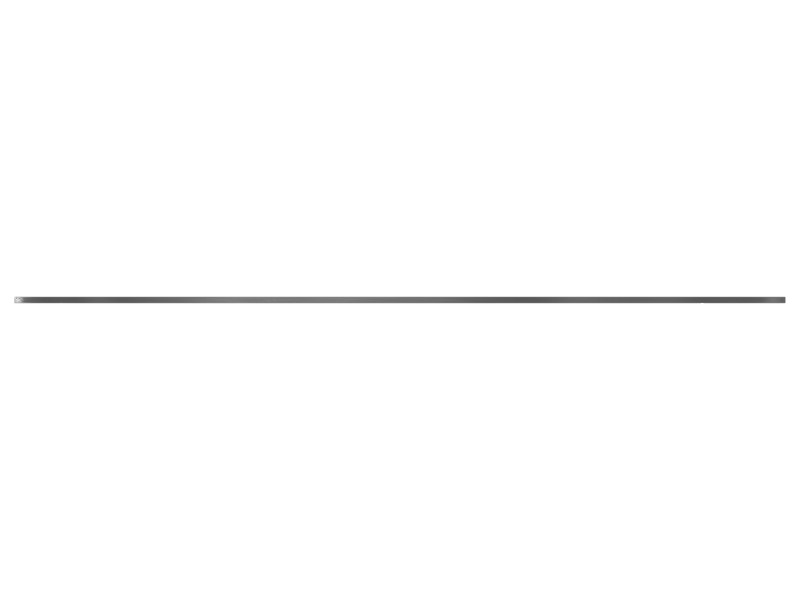

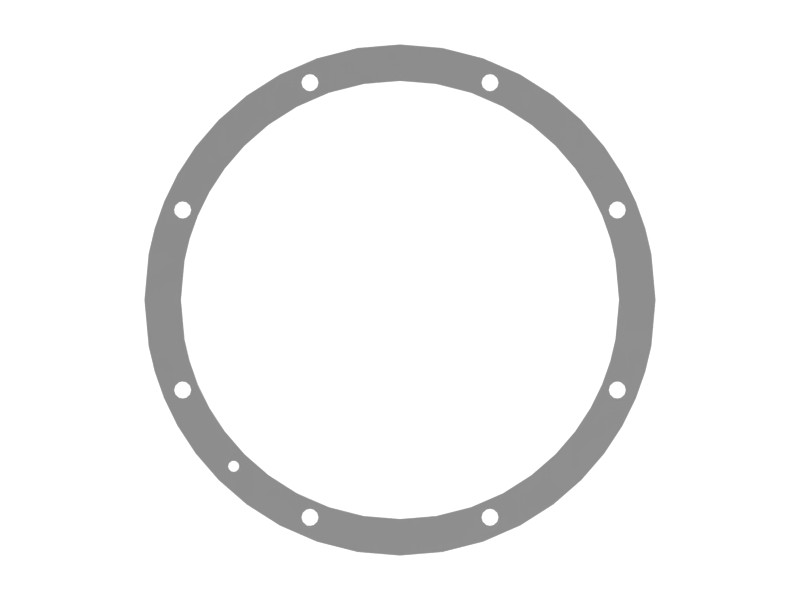

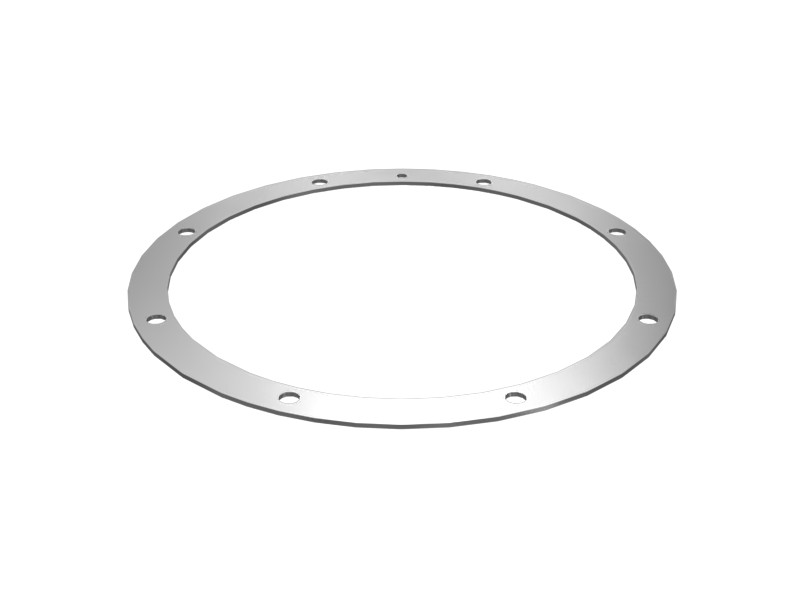

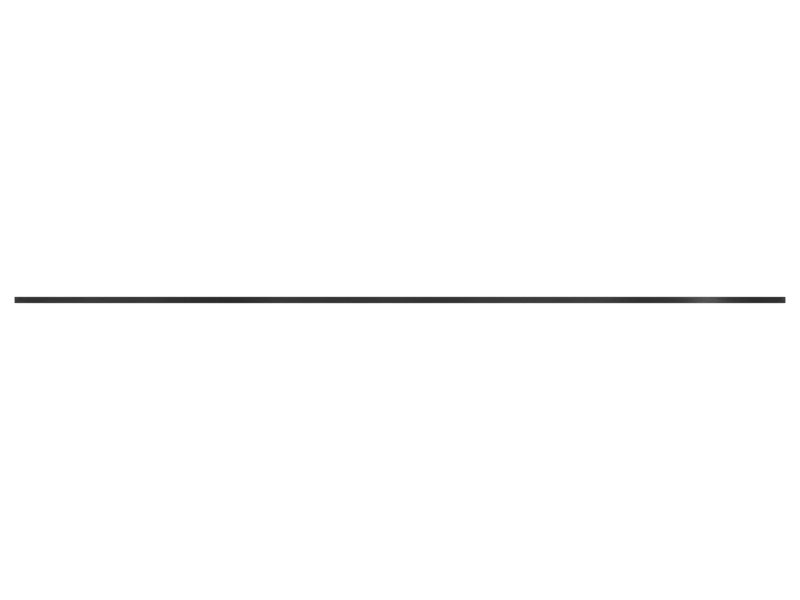

297-5155 Pump Assembly Gear Shim Set
Cat® Pump Assembly Gear Shim Pack, Steel Shim, ID x OD x Thickness: 262 x 305 x 2.4 mm, for Use with 3/8-16 UNC Fasteners
Description
Parts such as 297-5155 are used in the gear-segment pump assembly of power train components. Cat shims secure mechanical parts firmly in place to achieve a tight fit between machined parts and reduce excessive wear on adjacent parts and fasteners. Cat shims are made from premium materials to provide superior protection, long wear life, and the high performance you need.
Features
- Material: Shim Steel.
- For use with 3/8-16 UNC fasteners.
- Overall Thickness: 2.4 mm (0.100 in).
- Outside Diameter: 305 mm (12.010 in).
- Shim pack includes 2 0.4 mm (0.016 in) thick shims, 1 0.8 mm (0.031 in) thick shims, 5 0.12 mm (0.005 in) thick shims, 4 0.05 mm (0.002 in) thick shims.
- Gasket is flat, with no dents or wrinkles.
Applications
- Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Hole Size | 10.5 mm (0.41 in) |
|---|---|
| Inside Diameter | 262 mm (10.32 in) |
| Material | Carbon Steel |
| Outside Diameter | 305 mm (12.01 in) |
| Thickness | 2.4 mm (0.10 in) |
Compatible Equipment
- Cold Planers: TH55-E70
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
