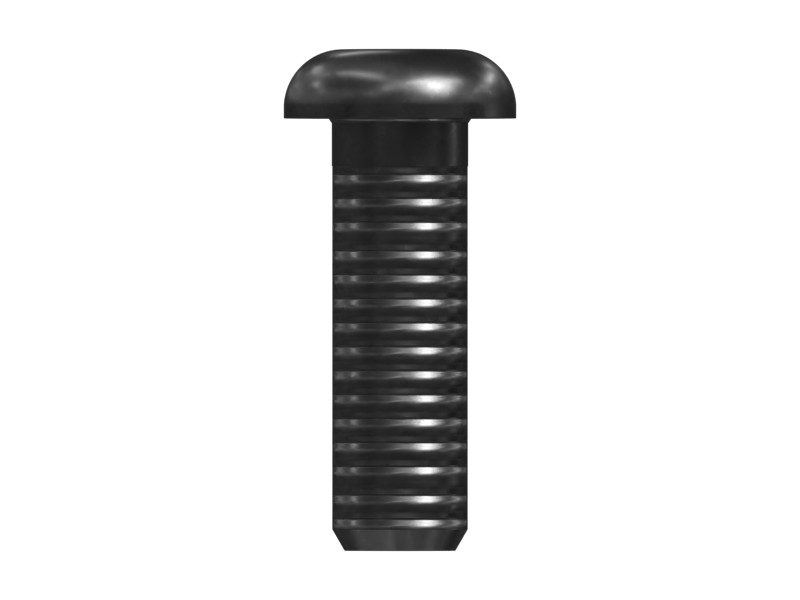

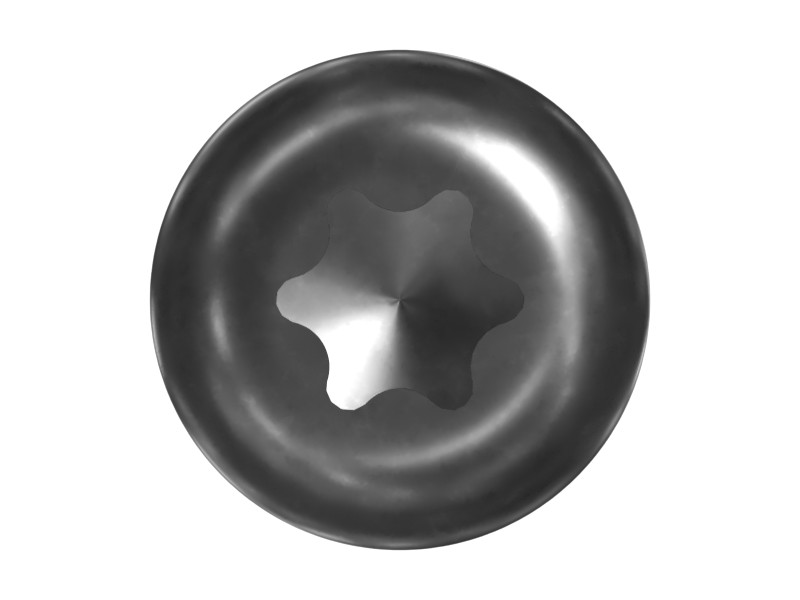

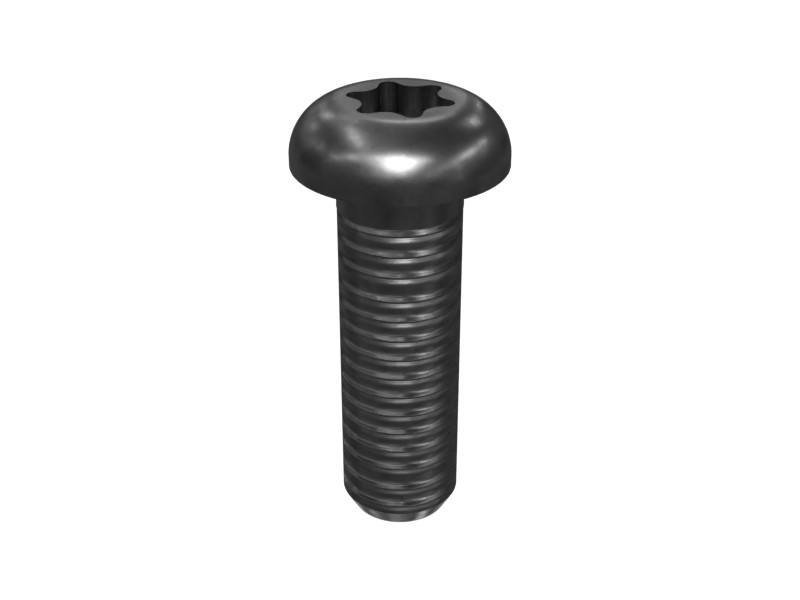

297-1813 40Ip Upgraded Torx Button Head Machine Screw
Cat® Upgraded Torx Drive Pan Head Steel Machine Screw with Thread Sealant
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These are small internal thread-forming screws.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Material | Sealants / Adhesives Adhesive |
|---|---|
| Thread Size | 0.3125 mm (0.012 in) |
| Coating | Oil with Corrosion Inhibitor |
| Class or Grade | ASTM A574 (180 ksi) |
| Bolt Length | 25.4 mm (1 in) |
| Thread Size (Diameter × Pitch) | 5/16×18 mm |
| Locking Feature | Threadlocker – Adhesive |
| Bolt Type | Rounded Head (Pan) |
| Handle Length | 2.82 mm (0.111 in) |
| Thread Direction | RH |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 834H, 826H, 826G, 826K, 824C, 824G
- Cold Planers: PM622, PM620, PL83, PL87, TH255C, PM-200
- Compactors: 825K, 824K, 834K, C-15
- Engines: C15, C18
- Excavators: 374D L, 390F L, 3456, 374F, 390D L, 374, 395, 637G, 637E, 657G, 3508B, 3101, 637K, 385C, 365C, 385C L, 365C L, 385C FS, 374F L, 390F, 390D, 6015 FS, 621G, 6018, 6015
- Asphalt Pavers: AD30, AD45
- Wheel Excavators: MD6200
- Dozers: D8, D8T, D8R, D9T, D9
- Wheel Loaders: R2900 XE, 988K, 836, 834, 980H, 980G, 988H, 988G, 986H, RM500B, R2900G, R3000H
- Off-Highway Trucks: 740B, 740, 772G, 745, 770G, 740 GC, 745C, 735
Additional information
| Machine Model | 3101, 3456, 3508B, 365C, 365C L, 374, 374D L, 374F, 374F L, 385C, 385C FS, 385C L, 390D, 390D L, 390F, 390F L, 395, 6015, 6015 FS, 6018, 621G, 637E, 637G, 637K, 657G, 735, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 824C, 824G, 824K, 825K, 826G, 826H, 826K, 834, 834H, 834K, 836, 980G, 980H, 986H, 988G, 988H, 988K, AD30, AD45, C-15, C15, C18, C9, D8, D8R, D8T, D9, D9T, MD6200, PL83, PL87, PM-200, PM620, PM622, R2900 XE, R2900G, R3000H, RM500B, TH255C |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
