Description

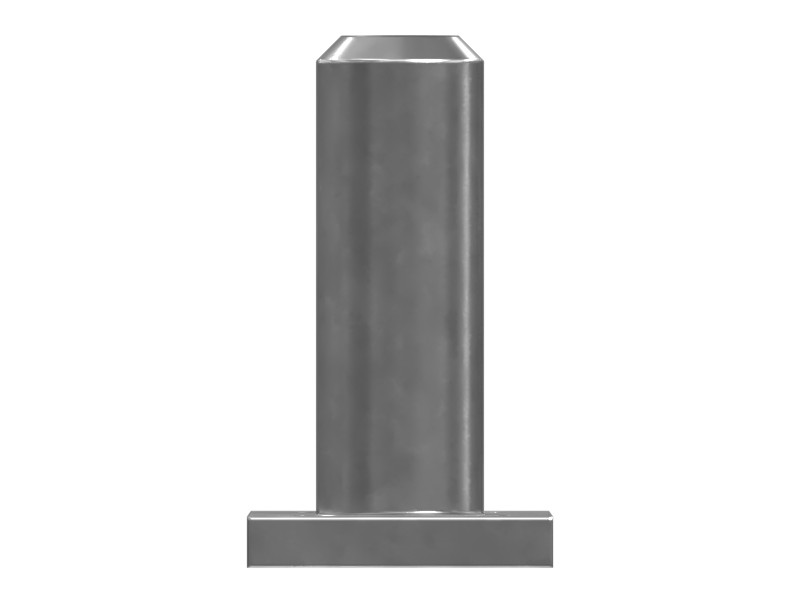

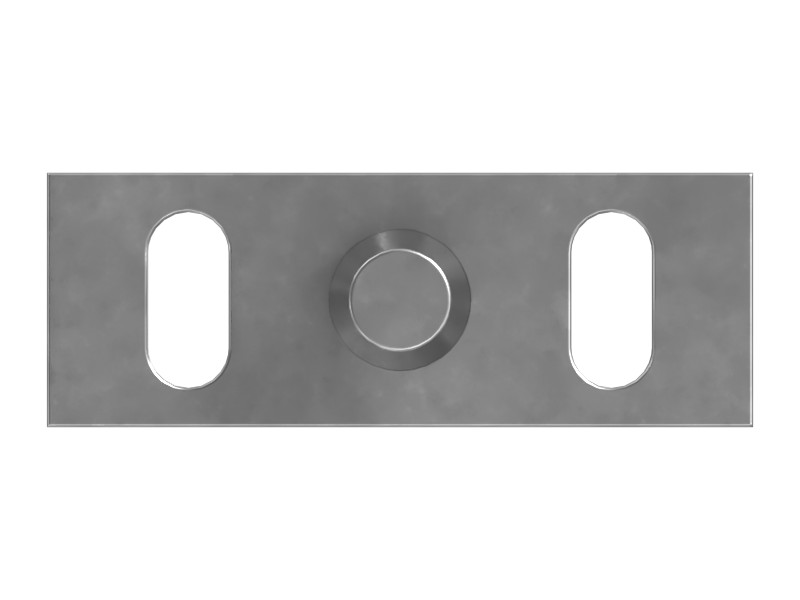

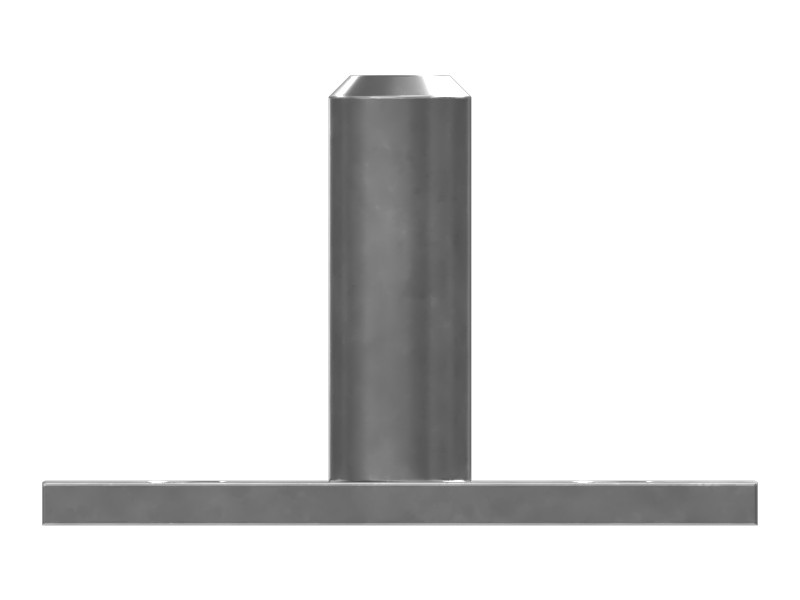

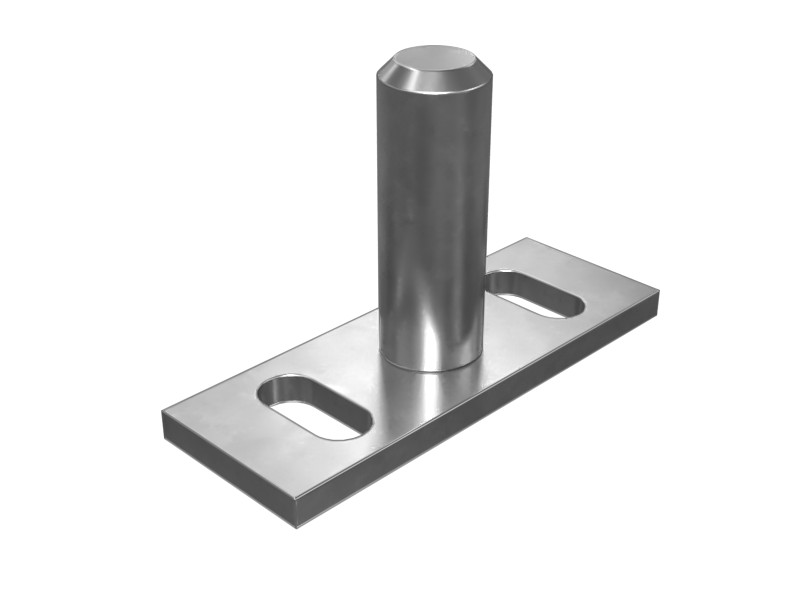

Description: The support pin is a component used to connect and support the rear helmet or trunk lid of the machine
It helps hold the hood in the open position, allowing access to the engine compartment or trunk.
Features
- Supports the weight of the bottom cover.
- Holds the hood securely in place.
Applications
The support post provides support and added stability for the rear helmet or trunk lid when open, allowing safe and easy access to the engine compartment or trunk. They are essential for routine maintenance tasks, inspections, and repairs. Widely used in Cat 950, 950K, 950L, 950M, 962, 962K, 962L, 962M, 966, 966H, 966K, 966L, 966M, 972H, 972K, 972L, 972M, 980, 980H, 980K, 980L, 980M, 982, and 982M wheel loaders.
Specifications
| Outside Diameter | 20 mm (0.787 in) |
|---|---|
| Puller Thread | No |
| Effective Length | 57 mm (2.244 in) |
| Internal Grease Passage Hole | No |
| Pin Type | Flag Pin |
| Pin Diameter | 20 mm (0.79 in) |
| Plating | Unplated |
| Weight | 0.28 kg (0.62 lb) |
| Length | 57 mm (2.24 in) |
| Removal Aid/Feature | Without Puller Hole |
Compatible Equipment
- Track Loaders: 972, 982
- Wheel Loaders: 980M, 966M, 972M, 982M
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
