Description

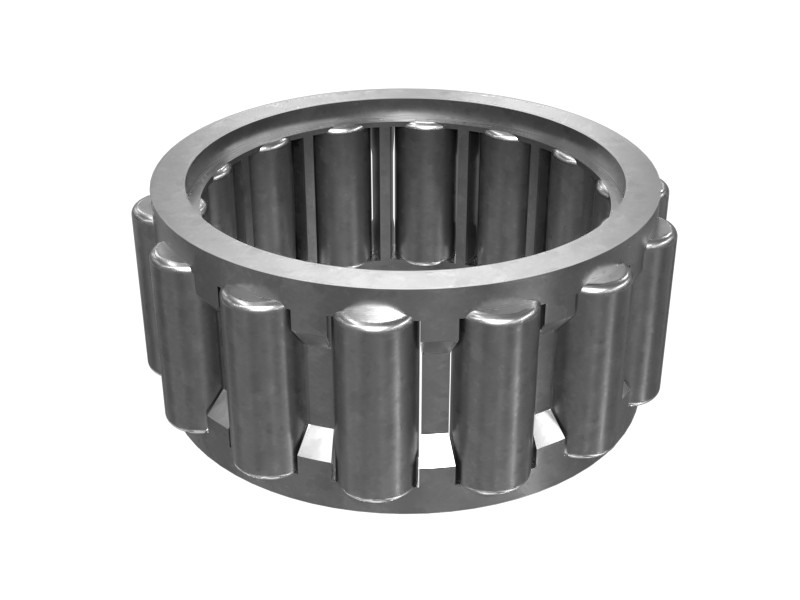

Cat radial needle roller and cage assemblies are self-contained, ready-to-install bearings suited to applications where the housing bore and shaft serve as the raceways. They support heavy loads and run smoothly and reliably at high speeds.
Features
- Housing Diameter: 65.020 mm (2.5598 in)
- Shaft Diameter: 46.991 mm (1.85 in)
- Height: 27.6 mm (1.0866 in)
- High load capacity and rigidity
- Supports high rotational speeds
- Smallest cross section among rolling bearings
- Non-separable unit, easy to handle and install
Applications
Cat radial needle roller and cage assemblies are most commonly used in applications where the housing bore and shaft serve as the raceways. Typical applications for radial needle roller and cage assemblies are planetary gears, constant mesh gears, idler gears, and connecting rods. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Height | 27.6 mm (1.0866 in) |
| Inside Diameter | 46.991 mm (1.85 in) |
| Outside Diameter | 65.020 mm (2.5598 in) |
Compatible Equipment
- Dozers: D3K2 LGP, D5K2 XL, D5K LGP
- Excavators: 320 GC, 320 GX, 323 GX, 320C, 320D GC, 323D2 L, 320D2 L, 320D L, 329D L, 318D2 L, 315C, 320D FM, 323D L, 325C, 318D L, 324D L, 325D L, 320D RR, 325D, 349E L, 349D L, 349E, M325D L MH, 315D L, 320D2 GC, 324D, 320E, 320B, 329E, 329E L, 323D, 326D L, 323, 320D, 349D2 L, 349D2, 320D2, 329D
- Skid Steer Loaders: 313D2 LGP
Additional information
| Machine Model | 313D2 LGP, 315C, 315D L, 318D L, 318D2 L, 320 GC, 320 GX, 320B, 320C, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D, 323D L, 323D2 L, 324D, 324D L, 325C, 325D, 325D L, 326D L, 329D, 329D L, 329E, 329E L, 349D L, 349D2, 349D2 L, 349E, 349E L, D3K2 LGP, D5K LGP, D5K2 XL, M325D L MH |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
