Description

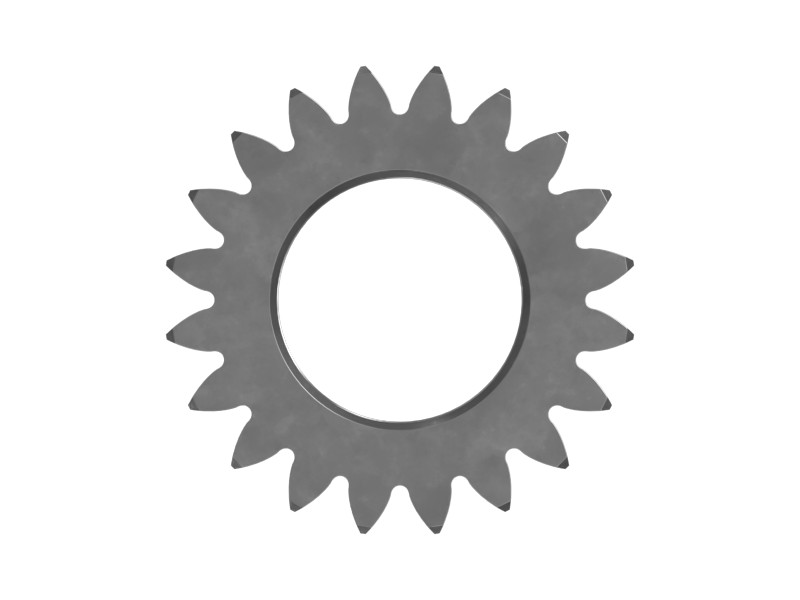

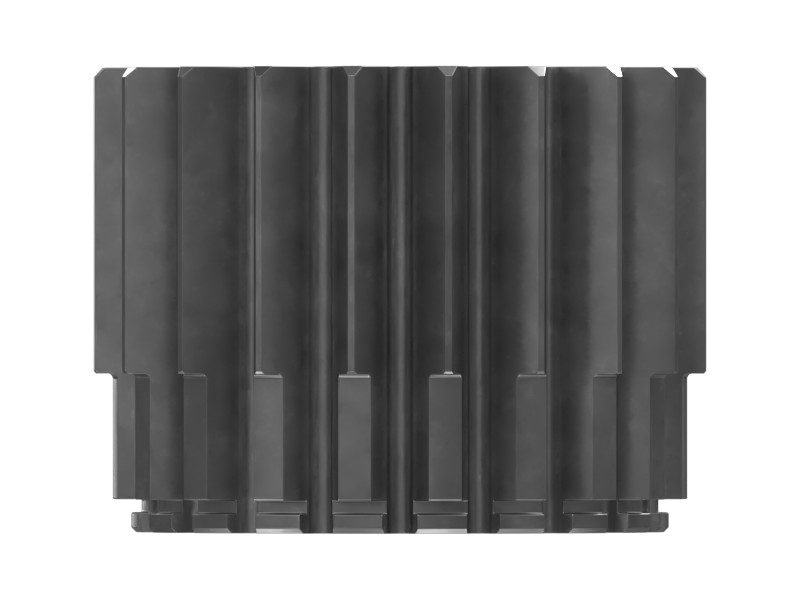

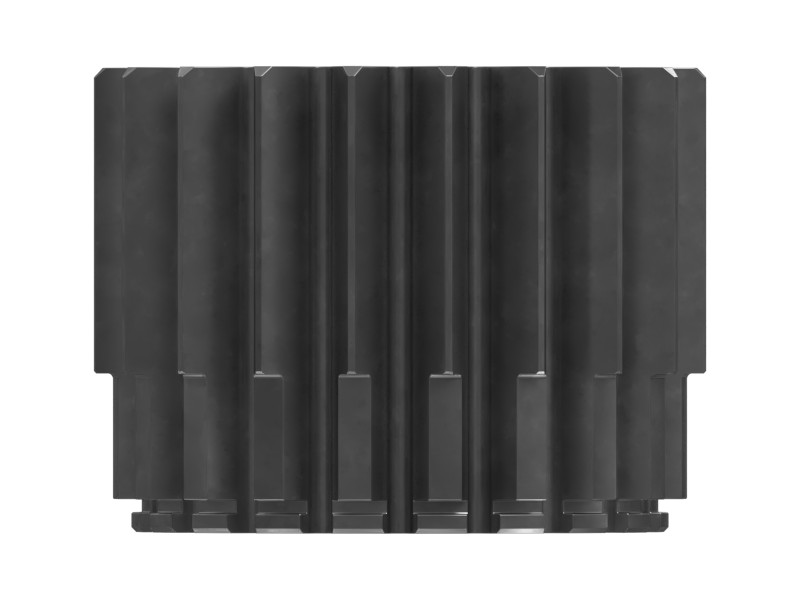

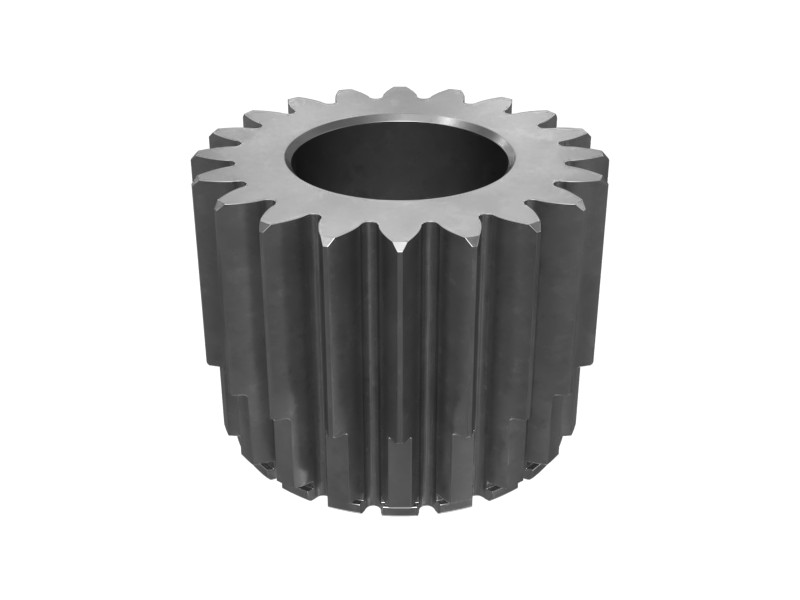

The spur gear is the most common type of gear and consists of a cylinder or disc with teeth projecting straight outward. In addition, the two sides of a spur gear are usually identical, because the teeth extend straight from one side to the other.
Features
- Material: Steel
- Spur Gear Teeth: 20
- Cat® final drive gears are designed to maximize system performance and extend balanced system life. Cat final drive gears are produced through metallurgy, heat treatment, tooth profile, and surface finishing processes that maximize the life of mating gears and ensure the final drive maintains optimum performance
Applications
Cat gears are built specifically for their applications to ensure that all drivetrain parts work and wear as a system. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Height | 96.5 mm (3.799 in) |
| Outside Diameter | 128.81 mm (5.071 in) |
| Inside Diameter | 67 mm (2.637 in) |
Compatible Equipment
- Excavators: 336E L, 336F L, 336D2 L, 336E LH, 336F L XE, 336D2 XE, 336D2 GC, 336F, 340, 336 GC, 336, 336D L, 336F LN, 328D LCR, 336E, 335F LCR, 336E LN, 336E H, 340D2 L, 345 GC, 340D L, 336D2, 336D
