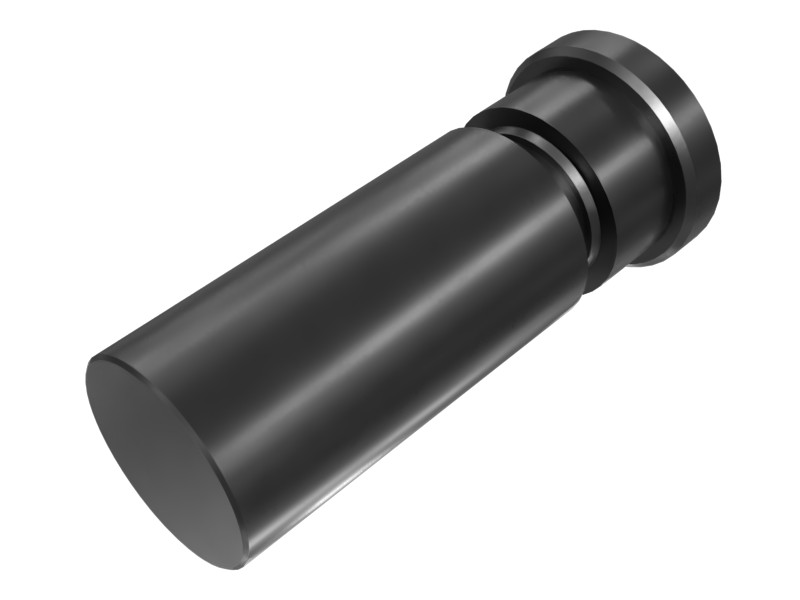

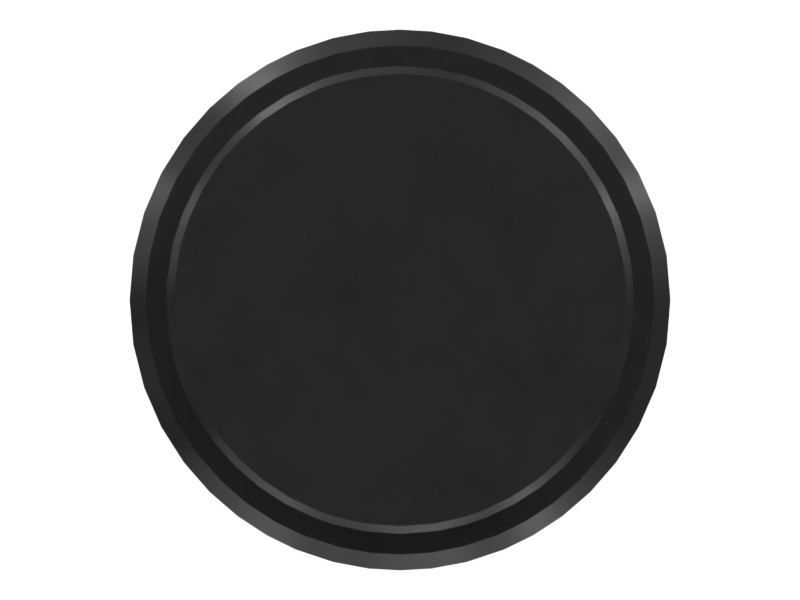

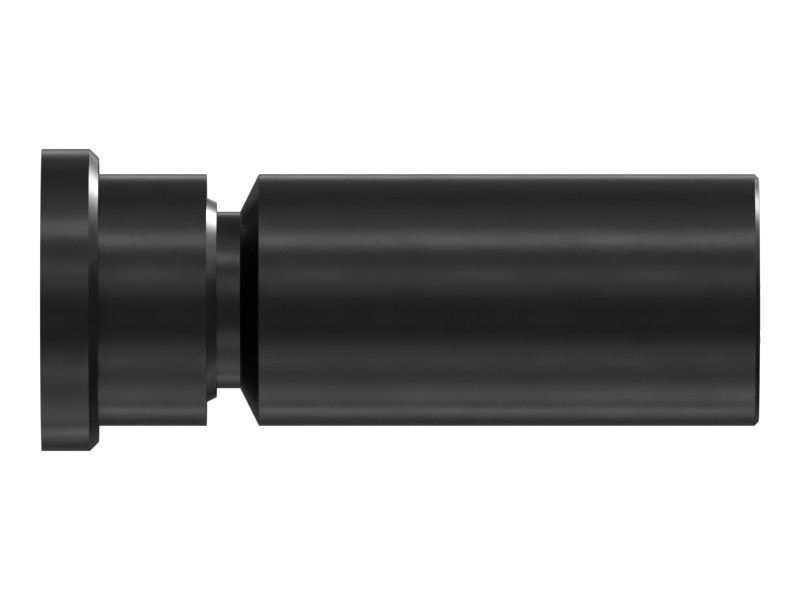

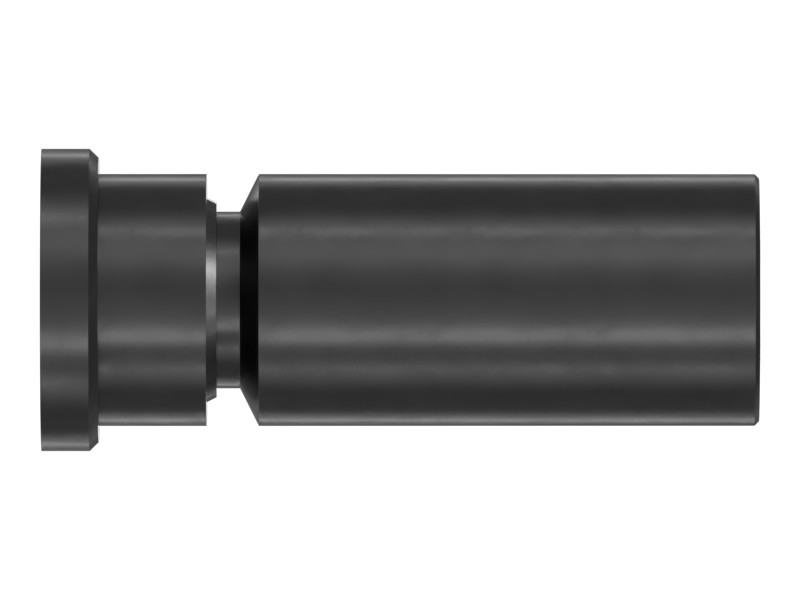

Description
The piston in a swing motor converts hydraulic pressure into mechanical force to produce rotary motion. It is driven by hydraulic oil acting on one side of the piston, which builds pressure and pushes the piston to produce the required swing motion.
Attributes
- This piston group consists of 9 pistons.
- Designed to withstand the high hydraulic pressure and forces generated when swinging heavy loads.
- Designed to promote heat dissipation and prevent overheating.
- Ensures optimal performance and service life.
Applications
The piston in a swing motor converts hydraulic pressure into mechanical motion. It is driven by hydraulic oil, which applies pressure on one side of the piston and generates the force that drives the swing motor to rotate. Widely used in Cat 345, 365B, 365C, 365D, 374D, 374E, 374F, 385B, 385C, 385D, 390D, 390E, 390F, 5090B, and 558 excavators, and 365C, 385C, MH3275, and MH3295 material handlers.
Specifications
| Inside Diameter | 30 mm (1.18 in) |
|---|---|
| Outside Diameter | 36 mm (1.42 in) |
| Overall Length | 85.5 mm (3.37 in) |
| Weight | 3.6 kg (7.94 lb) |
Compatible Equipment
- Excavators: 365B, 365B L, 385B, 345 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
