Description

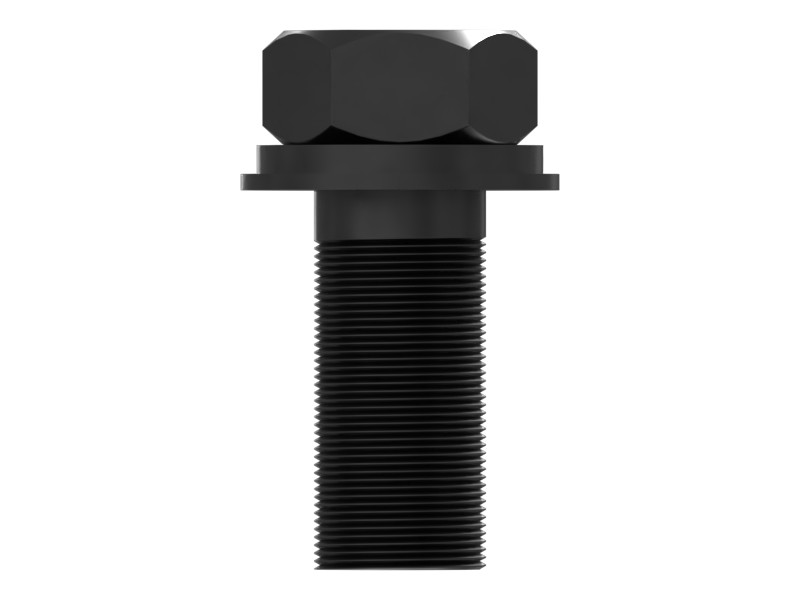

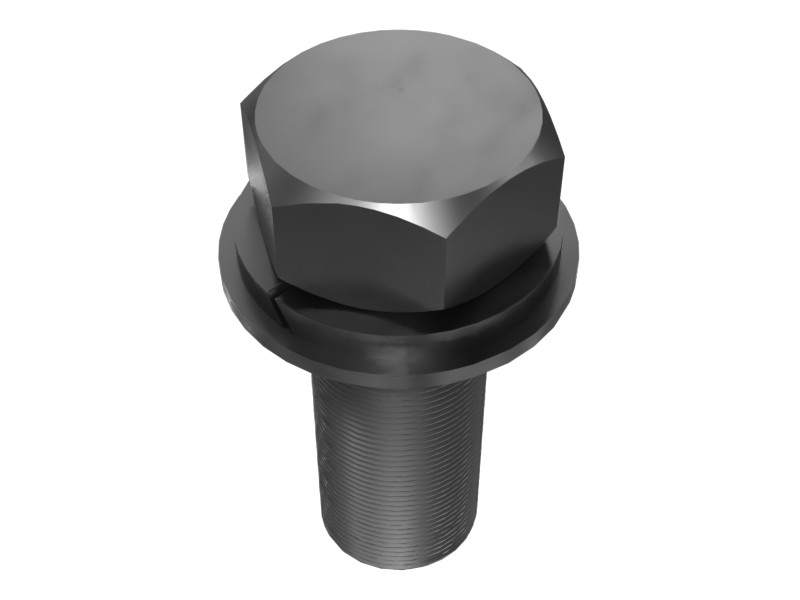

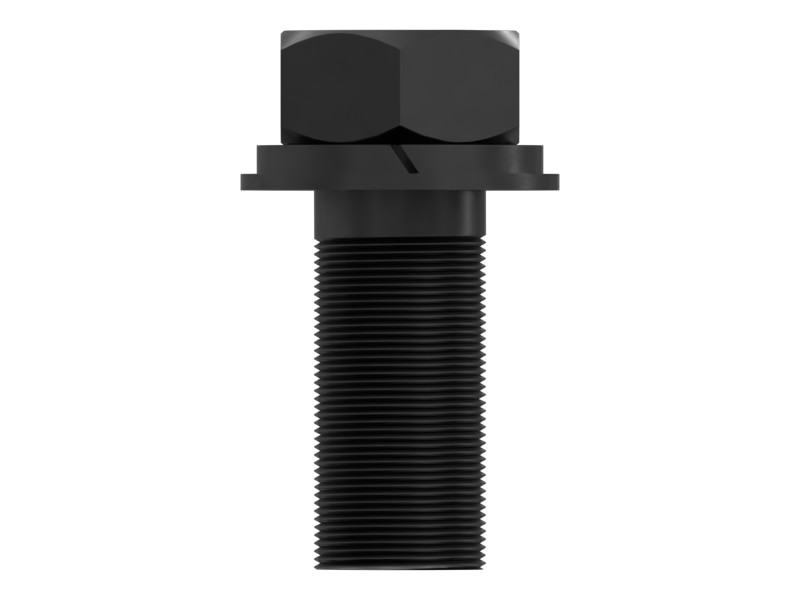

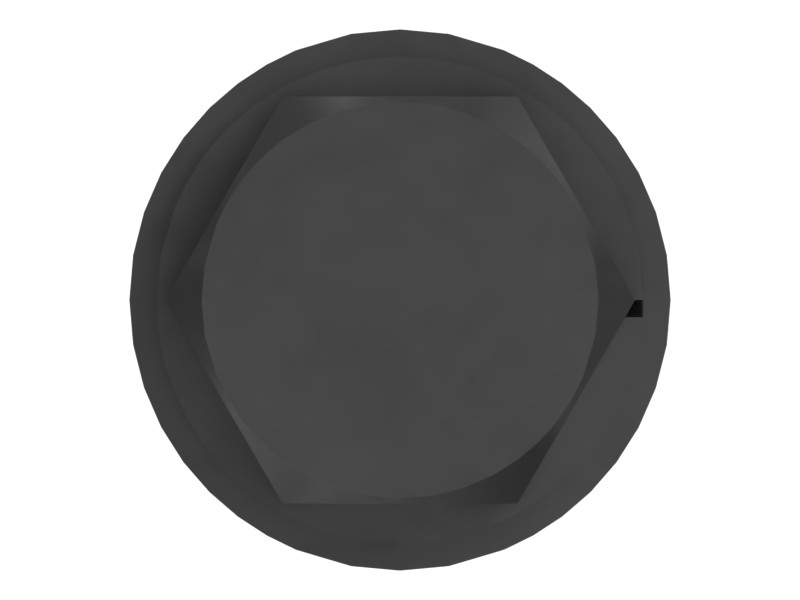

The hex bolt securely fastens two or more parts together by providing a threaded mating surface for a nut or boss. It is made of durable materials to withstand harsh operating conditions. It helps achieve secure fastening by applying axial force, distributes torque effectively during tightening and loosening, and allows adjustment and removal when needed.
Attributes
- Comes with a washer to help prevent the bolt from loosening due to vibration or external forces
- The bolt's hex shape provides a better gripping surface for tightening and loosening
Applications
The hex bolt is used to secure the clamp in the fuel line with a precise, non-slip grip.
Specifications
| Thread Direction | RH |
|---|---|
| Thread Size | M6 mm (0 in) |
| Thread | Rough Milled |
| Locking Feature | None |
| Thread Size (in – TPI) | M6-1 in |
| Thread Size (Diameter × Pitch) | M6x1 mm |
| Bolt Length | 25 mm (1 in) |
| Bolt Type | Hex Head |
| Handle Length | 6 mm (0.24 in) |
Compatible Equipment
- Excavators: 320D L, 312D L, 314D CR, 311D LRR, 318D L, 315D L, 323D L, 320D RR, 313D, 312D, 320D FM, 314D LCR, 323D, 320D GC, 320D
