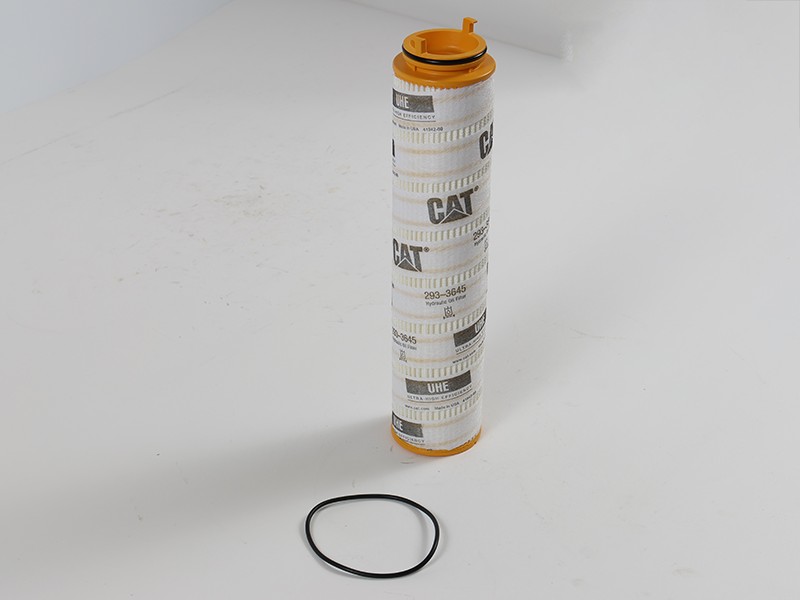

293-3645 Hydraulic/Transmission Oil Filter
Ultra high efficiency hydraulic oil filters use synthetic media to remove most fine particles in the most demanding applications, ensuring optimal contamination control. Cat UHE hydraulic oil filters are not intended for transmission applications.
Description
Cat® hydraulic filters isolate contaminants and abrasives in high-pressure hydraulic systems to keep them from wearing down tight-tolerance systems, providing optimal protection. Cleanliness is key to keeping sensitive hydraulic systems properly lubricated.
Specifications
| Flow Direction | Out-to-In |
|---|---|
| Filter Type | Cartridge |
| Length | 372.4 mm (14.661 in) |
| Diameter | 79.4 mm (3.126 in) |
| Efficiency Rating | Ultra High Efficiency |
| Efficiency Category | Ultra High Efficiency |
Compatible Equipment
- Off-Highway Trucks: 772G, 770G, 797F, 775G, 793F, 777, 773
