Description
Cat hoses are designed to route liquids and gases through machine systems. These hoses are made of quality materials built to withstand the application-specific pressure, vibration resistance and flow requirements of Cat heavy-duty equipment. Cat hydraulic hoses and couplings are tested using some of the most rigorous processes in the industry. Every Cat hose and coupling combination is tested as a system to ensure a perfect fit, maximizing safety and reliability.

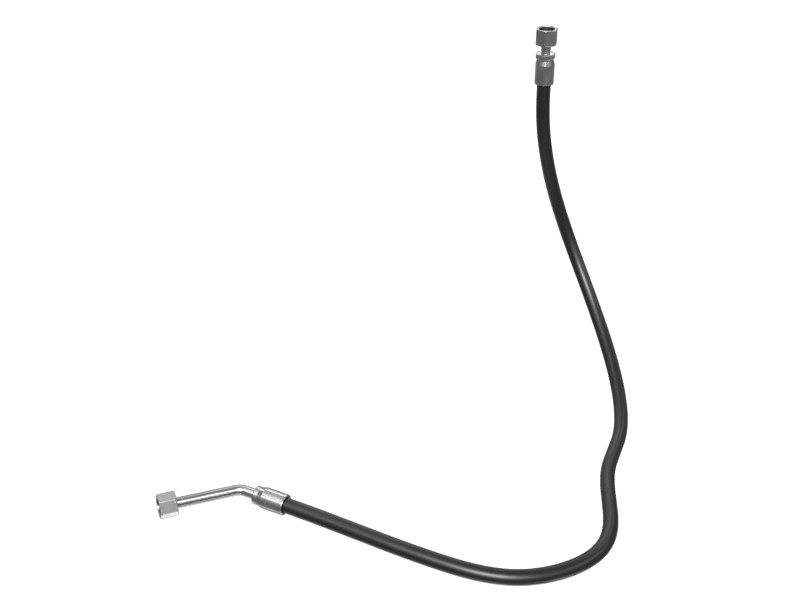

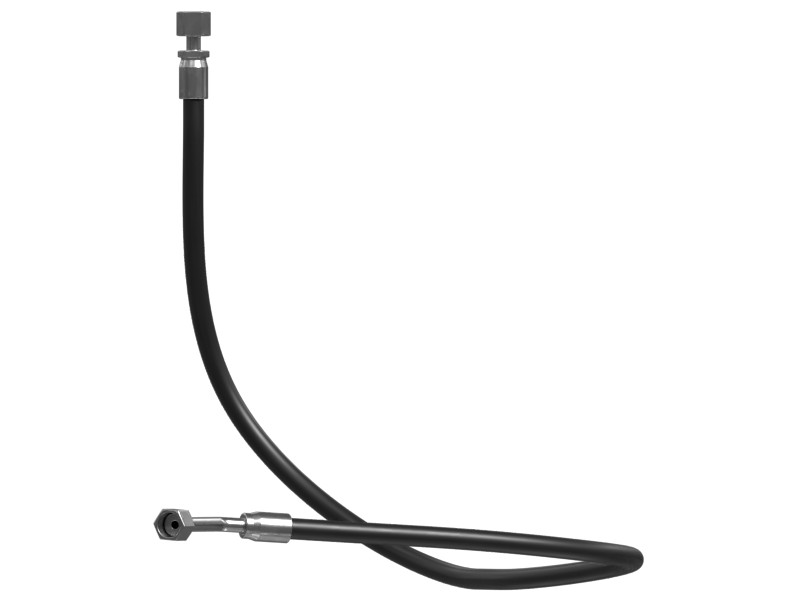

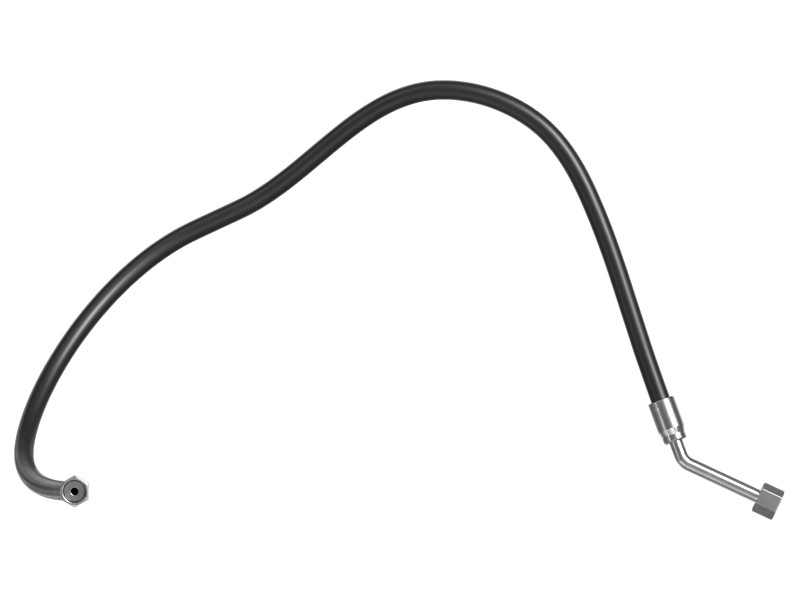

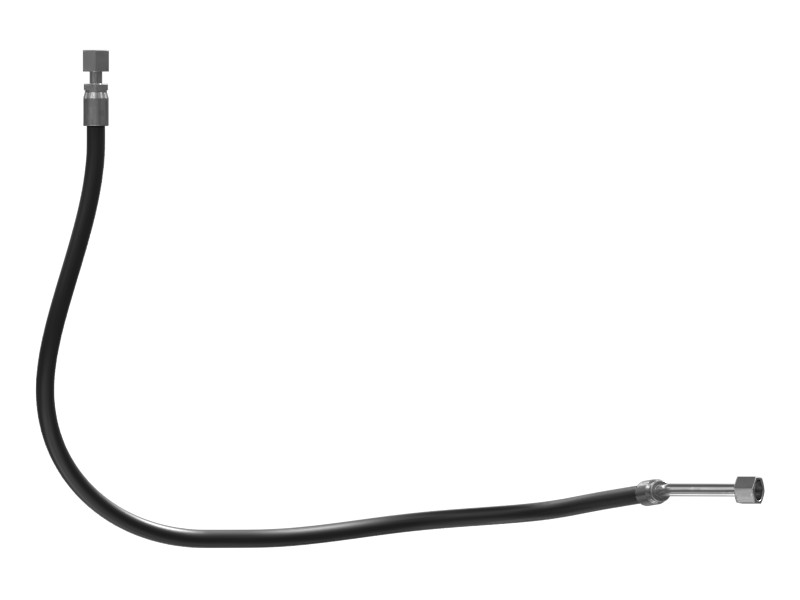

This hose is constructed with a hydraulic-oil-resistant thermoplastic or synthetic rubber inner tube and suitable fiber or wire reinforcement layers. The thermoplastic or synthetic rubber cover is resistant to hydraulic oil and weather.
Specifications
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
|---|---|
| Hose Type | Pilot Lines |
| Hose Inside Diameter | 9.52 mm (0.375 in) |
| Material | Other Hose |
| Overall Length | 1110 mm (43.701 in) |
| Weight | 0.472 kg |
Compatible Equipment
- Generator Sets: 3512B
- Excavators: 330D L, 325D L, 324D L, 320D L, 324D, 329D L, 323D2 L, 320D2 L, 336D L, 323D L, 323D, 330D2 L, 314D LCR, 336D2 GC, 320D RR, 336D2 L, 320D2 GC, 328D LCR, 314D CR, 330D2, 330D, 340D2 L, 345D L, 345C, 345D, 349D L, 340D L, 345C L, 325D, 326D L, 320D GC, 323D2, 320D3, 320D FM, 320D2, 320D, 329D2 L, 336D, 326D2, 336D2, 326D2 L, 329D, 329D2, 349D2 L, 349D2, 349D
Additional information
| Machine Model | 314D CR, 314D LCR, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 323D, 323D L, 323D2, 323D2 L, 324D, 324D L, 325D, 325D L, 326D L, 326D2, 326D2 L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 330D, 330D L, 330D2, 330D2 L, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 340D L, 340D2 L, 345C, 345C L, 345D, 345D L, 349D, 349D L, 349D2, 349D2 L, 3512B |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
