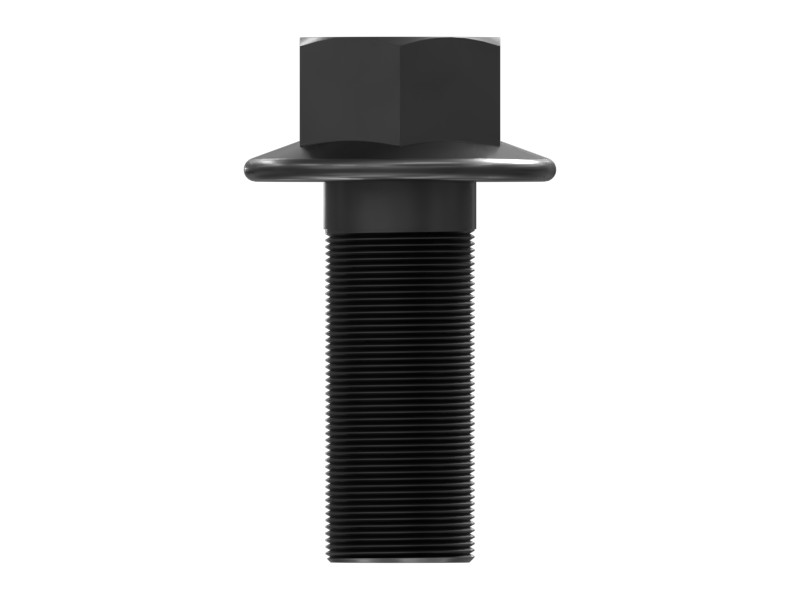

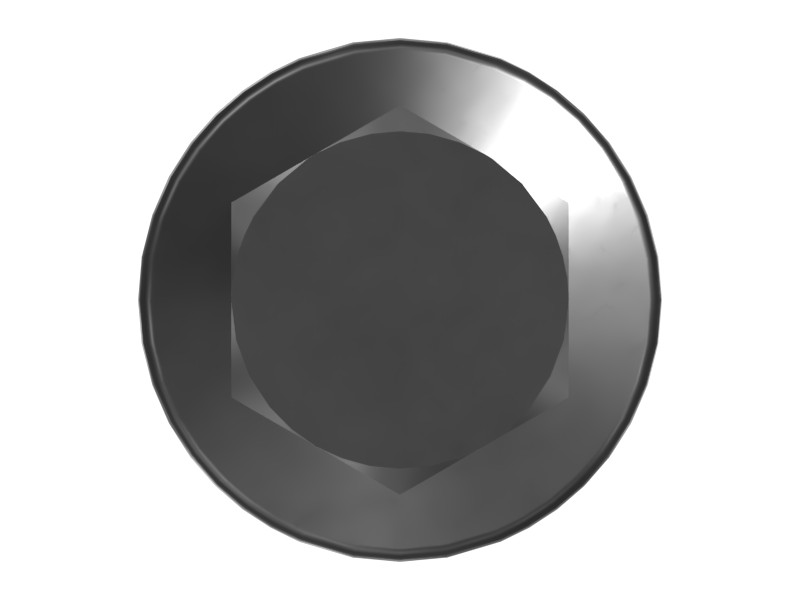

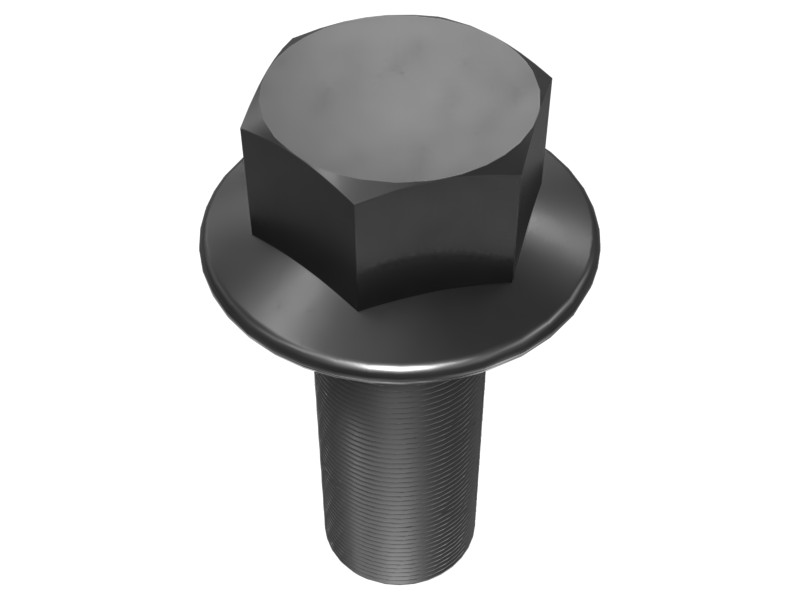

288-6975 M16x2 Flange Head Bolt

Description

The hex flange bolt includes a flange, which is a flat disc attached to the hex head of the bolt. The diameter of the flange is typically larger than the diameter of the bolt head and provides a larger surface area to spread the load over a wider area, which helps prevent damage to the surface being fastened.

Attributes

● Made of steel with high corrosion resistance, low wear, and high strength.

● Induction-hardened tip with high wear resistance.

Applications

Flange hex bolts are used where high strength, reliability, and vibration resistance are required.

Specifications

Thread Size (in – TPI)	M16-2 in
Thread	Rough Milled
Thread Size	M16x2 mm (0 in)
Material Description	Steel
Class or Grade	ISO 898-1 Class 10.9
Thread Size (Diameter × Pitch)	M16x2 mm
Locking Feature	None
Hex Size	21 mm (0.83 in)
Thread Direction	RH
Bolt Length	40 mm (1.57 in)
Bolt Type	Hex Flange Head
Coating	Zinc Flake
Handle Length	5 mm (0.2 in)

Compatible Equipment

Generator Sets: C7.1, 3512B, C7.1DE200E, C4.4
Motor Graders: 140 GC
Track Loaders: 953, 963K, 953K, 953D, 963D, 963
Cold Planers: PL61
Compactors: 815, 816, 814
Engines: C6.6
Dozers: D6N, D6K2, D4
Excavators: 320D L, 333, 330 GC, 323, 336 GC, 336, 320E, 320, 330D2, 326, 323GC, 329E L, 323D2, 323D2 L, 320D2 L, 330GC, 329E, 326GC, 330D2 L, 323D L, 320D2 GC, 320D GC, 335F LCR, 323 GX, 335, 333 GC, 326 GC, XQP200, 320D2, 330, 320D, 326D2, 326D2 L, 329D2, 329D2 L
Wheel Loaders: 950 GC, 938M, 938K, 924K, 926M, 924HZ
Asphalt Pavers: AP655F, AP655F L

Machine Model	140 GC, 320, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D L, 323D2, 323D2 L, 323GC, 326, 326 GC, 326D2, 326D2 L, 326GC, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 3512B, 814, 815, 816, 924HZ, 924K, 926M, 938K, 938M, 950 GC, 953, 953D, 953K, 963, 963D, 963K, AP655F, AP655F L, C4.4, C6.6, C7.1, C7.1DE200E, D4, D6K2, D6N, PL61, XQP200
Equipment Type	Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets
Part Source	Genuine OEM

Machine Model

140 GC, 320, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D L, 323D2, 323D2 L, 323GC, 326, 326 GC, 326D2, 326D2 L, 326GC, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 3512B, 814, 815, 816, 924HZ, 924K, 926M, 938K, 938M, 950 GC, 953, 953D, 953K, 963, 963D, 963K, AP655F, AP655F L, C4.4, C6.6, C7.1, C7.1DE200E, D4, D6K2, D6N, PL61, XQP200

Equipment Type

Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets

Part Source

Genuine OEM
