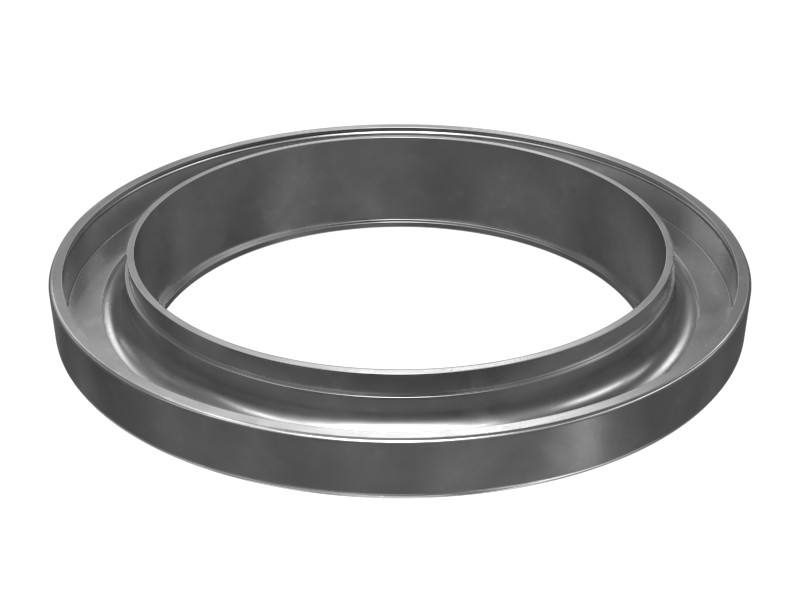

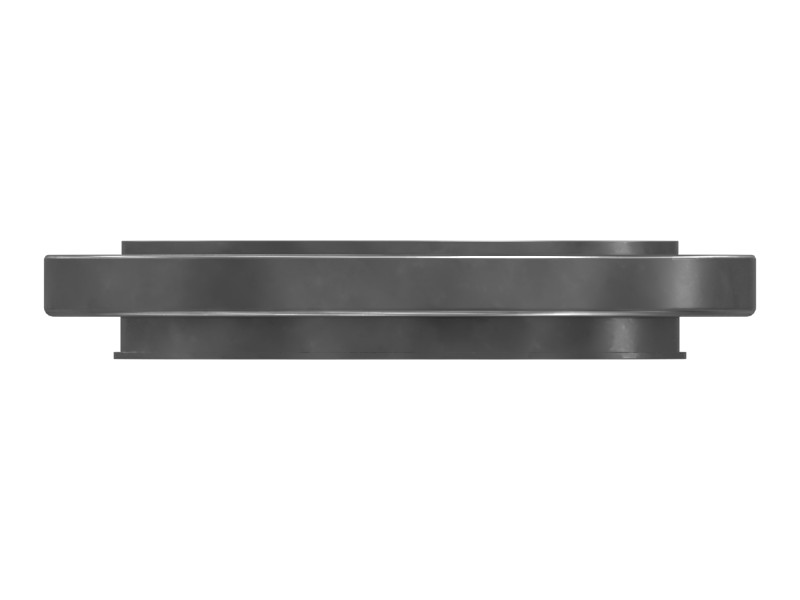

Description
The crankshaft seal assembly is used to retain engine oil and prevent external contaminants from entering the engine oil system.
Seal assemblies for dry applications (air-to-oil interface) typically include a primary sealing lip that prevents engine oil leakage, a dust lip and a wear sleeve. In wet applications (oil-to-oil interface), the dust lip is replaced with an auxiliary lip that can pump external fluid away from the engine.
Features
Cat® crankshaft seal assemblies are precisely engineered to the requirements of the most demanding applications. They must withstand high speeds, high temperatures and frequent axial movement.
The crankshaft seal assembly includes a wear sleeve that protects the crankshaft from wear and provides an optimal contact surface for the lip seal. The wear sleeve also avoids costly crankshaft repair or replacement, making service easier, faster, and more economical.
Cat® sealing systems protect more expensive parts from leakage and contamination. Genuine Cat® seals protect your investment.
Applications
The crankshaft seal assembly is used on engine crankshafts and in other high-speed rotating applications, such as some water pumps.
Note: The entire crankshaft seal assembly should be replaced as a whole and should not be serviced individually.
Specifications
| Material | Ethylene propylene diene terpolymer (EPDM) Rubber |
|---|---|
| Shaft Diameter | 92 mm |
| Primary Seal Material | Plastic |
| Hole Diameter | 117 mm |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 973K, 972
- Cold Planers: PL72
- Motor Graders: 14, 349 GC
- Compactors: C9.3B, C-9
- Engines: C7
- Dozers: D6T, D7E, D6T LGP, D7
- Excavators: 336, 336F L, 336F, 336E LN, 336E L, 336D2 GC, 340, 336D2 L, 336D2 XE, 336E H, 336F LN, 336F L XE, 336E, 336E LH, 637K, 340D2 L, 345 GC, 350, 3516B, 350MHPU, 336D2
- Wheel Loaders: 966K, 972L, 966L, 966, RM400
- Off-Highway Trucks: 725C2, 725
Additional information
| Machine Model | 14, 336, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D2 L, 345 GC, 349 GC, 350, 350MHPU, 3516B, 637K, 725, 725C2, 966, 966K, 966L, 972, 972L, 973K, C-9, C7, C9, C9.3B, D6T, D6T LGP, D7, D7E, PL72, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
