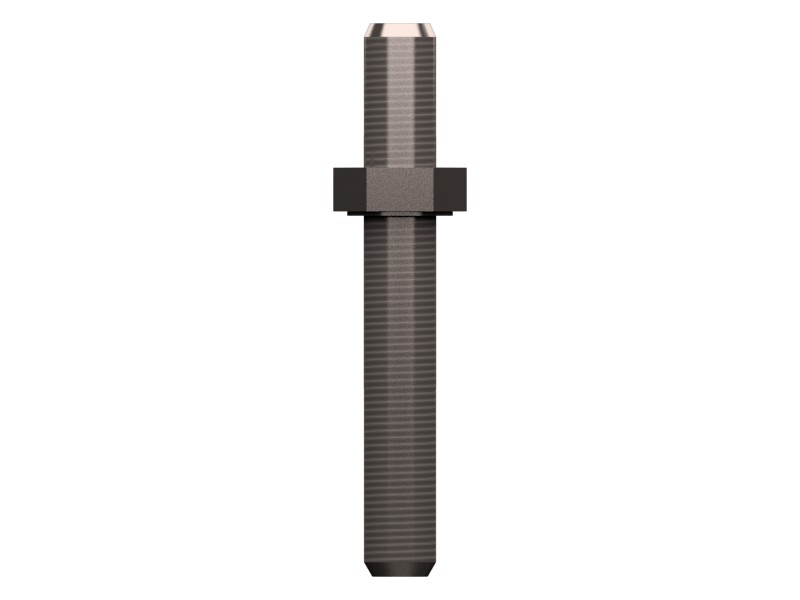

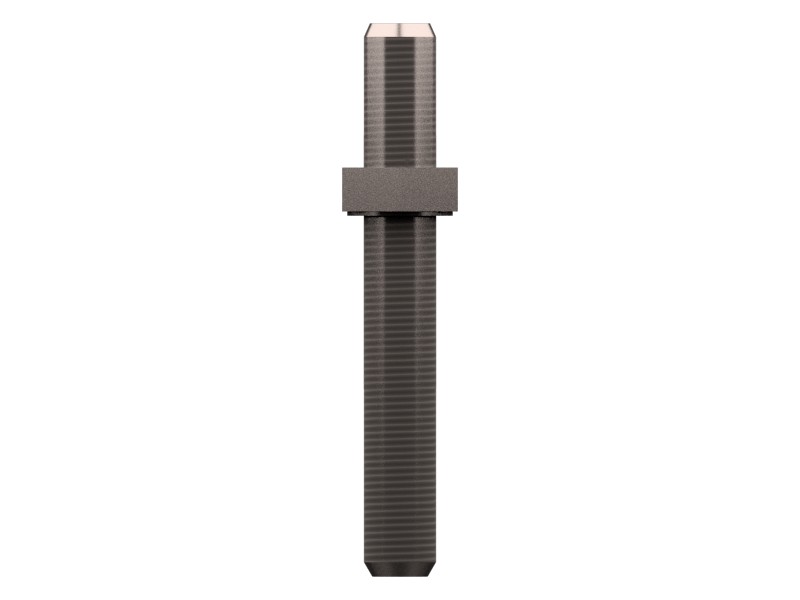

287-3049 M10X1.5 Thread Stud Bolt
Bolt Stud
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These bolts are used where a separate washer is not needed.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Stud Thread Size | M10 |
|---|---|
| Hole Thread Pitch | 1.50 |
| Stud Thread Pitch | 1.50 |
| Overall Length | 76.63 mm |
| Thread Size | M10 mm |
| Handle Length | 35.13 mm |
| Head Height | 6.63 mm |
| Material | Alloy Zinc |
| Material Description | ISO 898-1 Class 10.9 (1040 MPa Minimum Ultimate Tensile Strength) heat-treated steel, metric fasteners. |
| Locking Feature | Dimensions and Tolerances of Metric Hex Head Fasteners |
| Coating | Zinc Phosphate + Oil Coating, Up to 72 Hours to Red Rust |
| Drive Chain | 16 mm |
Compatible Equipment
- Generator Sets: C9
- Track Loaders: 963, 973K, 992, 982, 995, 953, 953K, 834H, 963K
- Cold Planers: PL87
- Compactors: C13B, C9.3B, 814, 816, 815, C-9
- Engines: C13, C7, C11, C15, C12
- Excavators: 390F L, 374F, 120 GC, 336F L, 336F LN, 336E, 336F L XE, 336E LH, 336E L, 336E H, 637K, 3508B, 374F L, 390F, 352, 336E LN, 336F, 345D L
- Motor Graders: 18, 16, 14, 16M3
- Dozers: D4, D6T, D6T LGP, D10T2, D11
- Wheel Loaders: 950, 988H, R1700 XE, R1700K, 980, 966H, 962L, 966K, 972H, 950L, 980L, R2900 XE
- Off-Highway Trucks: 798 AC, 797F, 793, 794 AC, 793F, 796 AC, 789
Additional information
| Machine Model | 120 GC, 14, 16, 16M3, 18, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 345D L, 3508B, 352, 374F, 374F L, 390F, 390F L, 637K, 789, 793, 793F, 794 AC, 796 AC, 797F, 798 AC, 814, 815, 816, 834H, 950, 950L, 953, 953K, 962L, 963, 963K, 966H, 966K, 972H, 973K, 980, 980L, 982, 988H, 992, 995, C-9, C11, C12, C13, C13B, C15, C7, C9, C9.3B, D10T2, D11, D4, D6T, D6T LGP, PL87, R1700 XE, R1700K, R2900 XE |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
