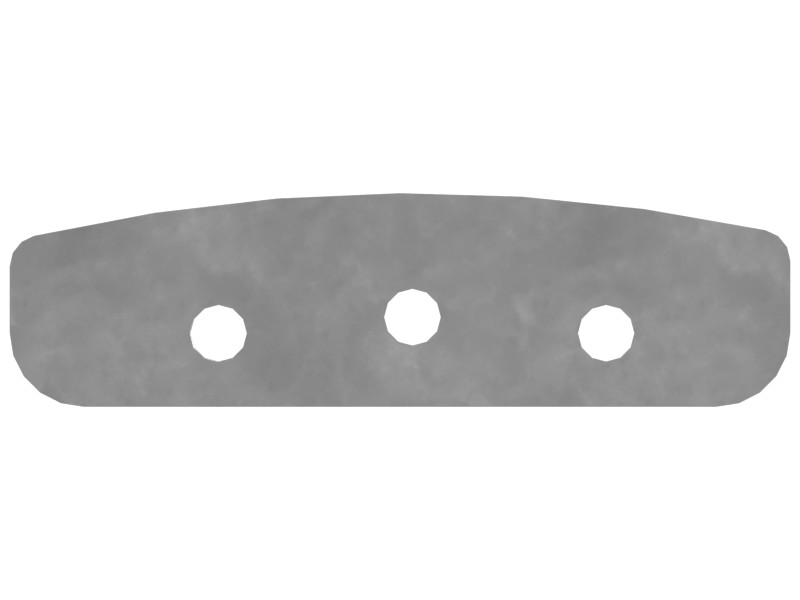

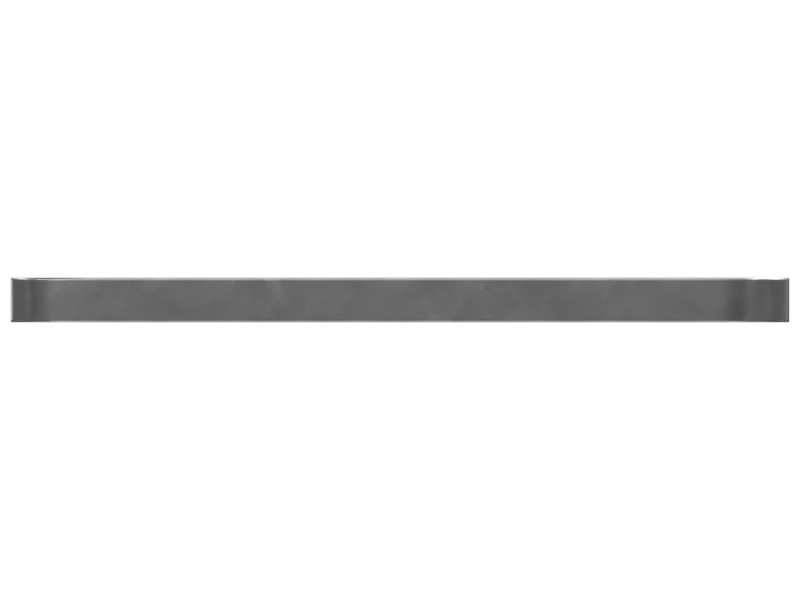

286-2956 8.5 mm Thick Hardened Steel Retainer
Cat® 150 mm long flat steel retainer, secures bolts in the hub drive, meets 650 MPa yield strength.
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat retainers are used to hold components in the correct position for the application. Their rugged construction and materials ensure long service life.
Features
Cat® parts are built to exact specifications and are durable, reliable, efficient, environmentally friendly and reusable.
Applications
- Retainers are used, among other purposes, to position and secure the reaction hub on the spindle in the final drive assembly, and to position and secure the bearing on the wheel spindle in the wheel and brake assembly.
- Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Coating | Not Specified |
|---|---|
| Length | 150 mm (5.901 in) |
| Width | 41 mm (1.614 in) |
| Thickness | 8.5 mm (0.335 in) |
| Hole Size | 11 mm (0.433 in) |
| Fits Bolt Size | M10 X 1.5 mm (3/8-16 in) |
Compatible Equipment
- Dozers: D10R
- Off-Highway Trucks: 773E, 773F, 775G, 773D, 773
