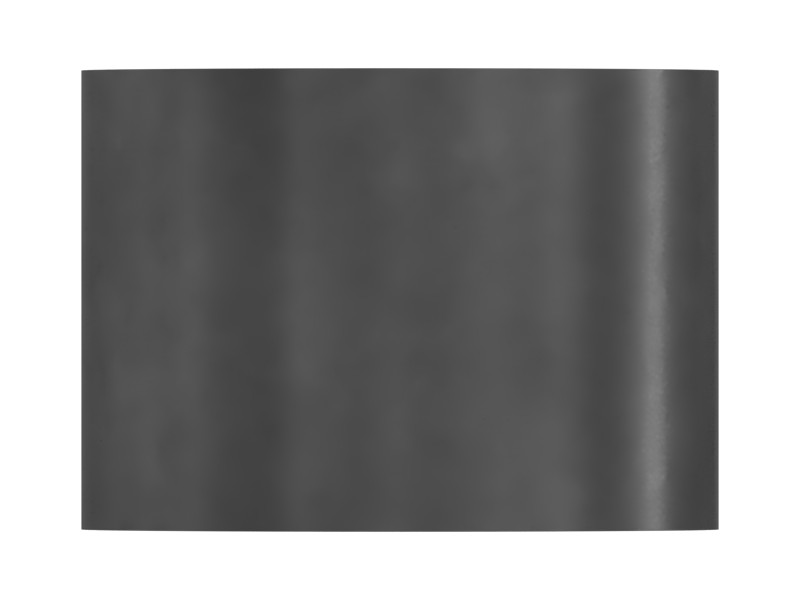

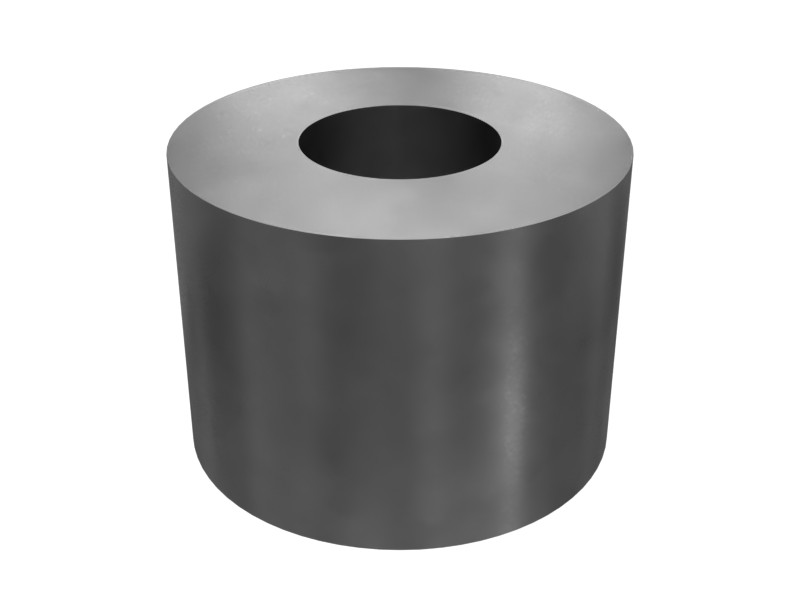

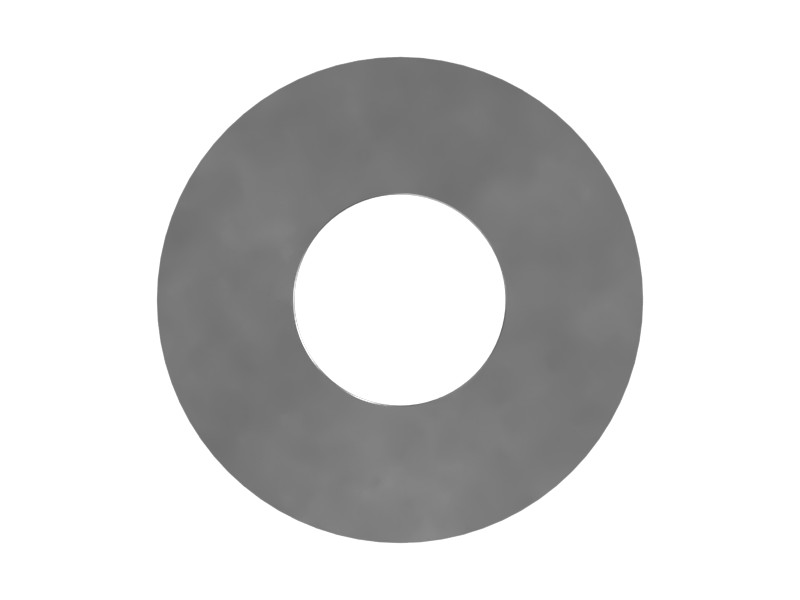

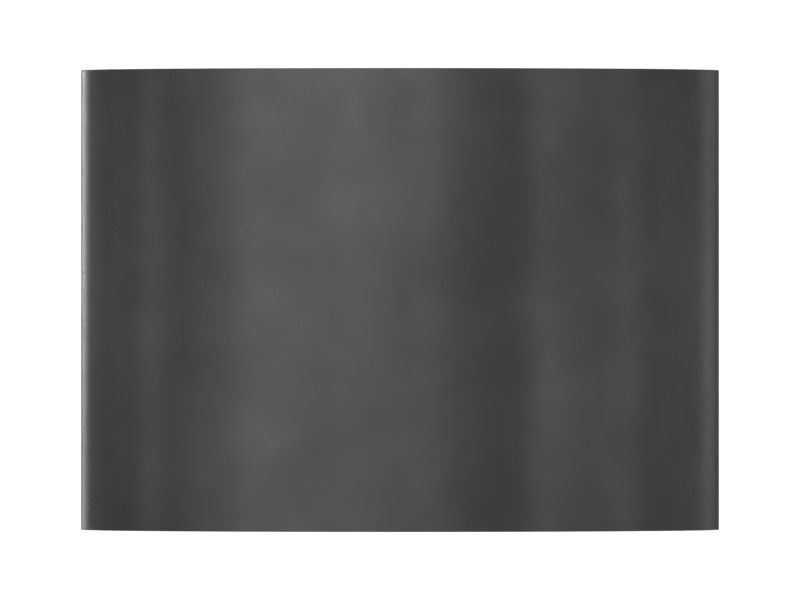

286-0693 11 mm ID Hard Shim

Description

A shim is a thick ring made of metal, rubber, or plastic that is held under a nut or bolt head to spread pressure or provide equalization between two surfaces when tightened.

Features

Material: Hardened Steel
Used with M10 or 3/8 in fasteners
Outside Diameter: 25 mm (0.98 in)
Inside Diameter: 11 mm (0.43 in)
Length: 18 mm (0.7 in)
Coating: Zinc
Color: Black

Applications

Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Material	Alloy Zinc
Length	18 mm (0.7 in)
Center Hole Shape	Non-Threaded
Gasket Type	Flat
Outside Diameter	25 mm (0.98 in)
Inside Diameter	11 mm (0.43 in)
Thickness	18 mm (0.709 in)
Coating	Zinc Flake-Black

Compatible Equipment

Generator Sets: 3516C, 3512E, C7.1
Track Loaders: 972, 826K, 963D, 982, 973K
Cold Planers: PM622, PL87, PL72, PM620, PL83
Compactors: 825K, 834K, 824K
Wheel Excavators: MD6200
Engines: C32, C15, C175-16, C18
Dozers: D7, D10T2, D6T LGP, D10, D8, D11
Excavators: 3516E, 6060, 6015B, 432, 6015, 637K, 3508B
Wheel Loaders: 972H, 966H, 980L, 972L, 962L, 950L, 988K, 966L, 966, 950, 980, RM500B, R2900 XE, 836, 950 GC, 966K, 834
Off-Highway Trucks: 770G, 740 GC, 793D, 793F, 797F, 796 AC, 789, 745C, 794 AC, 740, 789D, 798 AC, 793, 745, 772G
Asphalt Pavers: AD45

Machine Model	3508B, 3512E, 3516C, 3516E, 432, 6015, 6015B, 6060, 637K, 740, 740 GC, 745, 745C, 770G, 772G, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 824K, 825K, 826K, 834, 834K, 836, 950, 950 GC, 950L, 962L, 963D, 966, 966H, 966K, 966L, 972, 972H, 972L, 973K, 980, 980L, 982, 988K, AD45, C15, C175-16, C18, C32, C7.1, D10, D10T2, D11, D6T LGP, D7, D8, MD6200, PL72, PL83, PL87, PM620, PM622, R2900 XE, RM500B
Equipment Type	Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets
Part Source	Genuine OEM

Machine Model

3508B, 3512E, 3516C, 3516E, 432, 6015, 6015B, 6060, 637K, 740, 740 GC, 745, 745C, 770G, 772G, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 824K, 825K, 826K, 834, 834K, 836, 950, 950 GC, 950L, 962L, 963D, 966, 966H, 966K, 966L, 972, 972H, 972L, 973K, 980, 980L, 982, 988K, AD45, C15, C175-16, C18, C32, C7.1, D10, D10T2, D11, D6T LGP, D7, D8, MD6200, PL72, PL83, PL87, PM620, PM622, R2900 XE, RM500B

Equipment Type

Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets

Part Source

Genuine OEM
