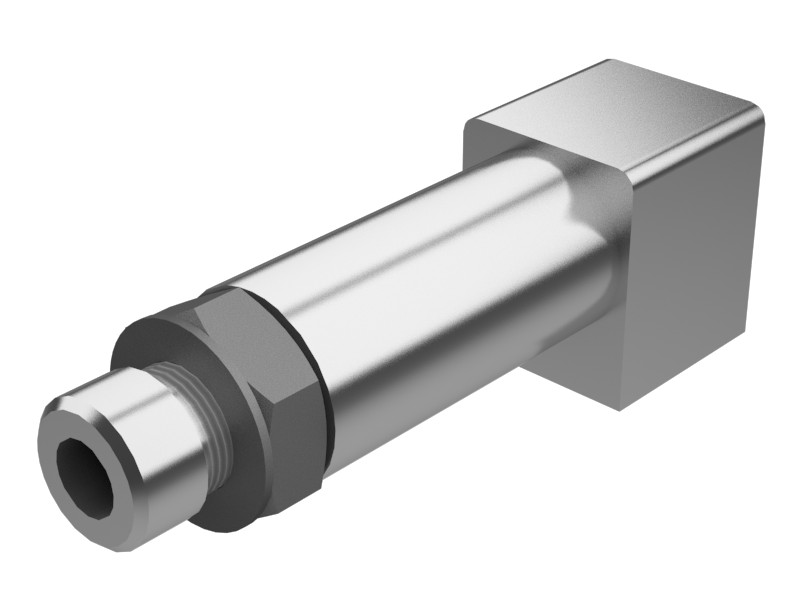

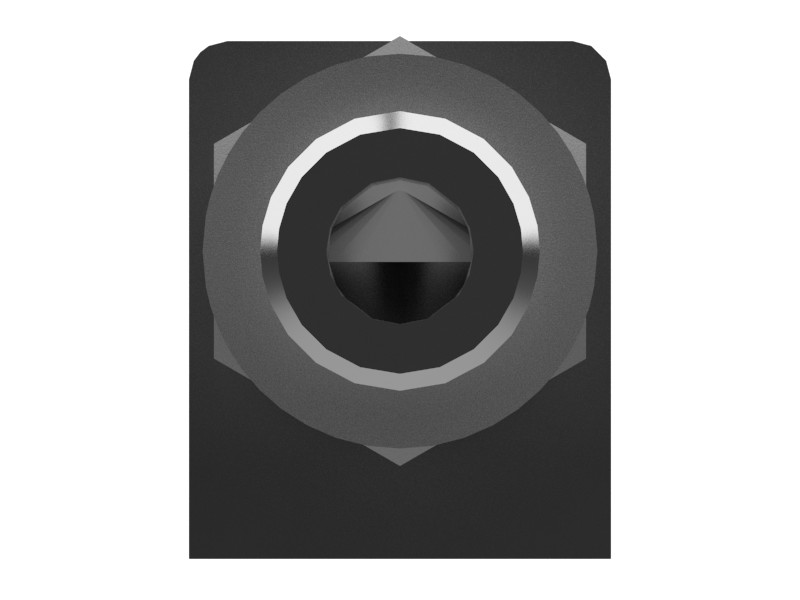

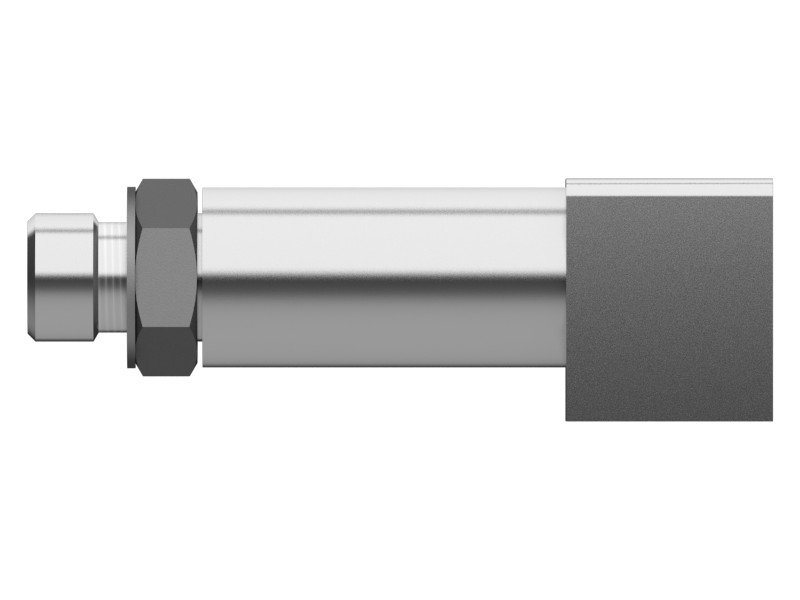

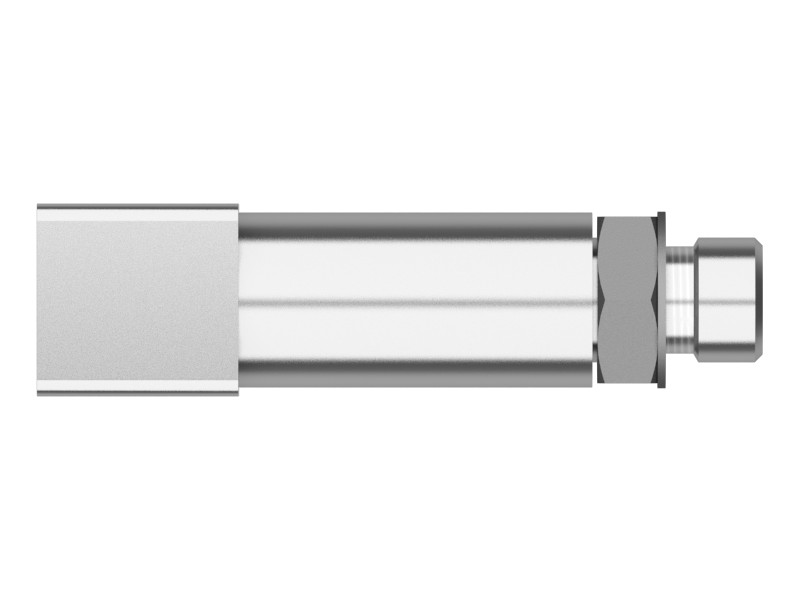

Description
Cat fluid-carrying adapters meet extremely high standards of quality and reliability. These adapters are manufactured to tight tolerances to ensure leak-free connections. Every Cat fluid-carrying adapter meets or exceeds industry standards for working pressure, assembly torque capability and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Plated steel adapter
- End 1: Male STOR
- End 2: STOR Port
- End 1 Thread Size: 9/16-1
- End 2 Thread Size: 9/16-18
- Hex Size: 19.05 mm (0.75 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Overall Length | 83.8 mm (3.3 in) |
| Overall Height | 22.8 mm (0.9 in) |
| Material Description | Steel |
| Overall Width | 26.7 mm (1.05 in) |
| Hose Warning | Improper selection of hose and coupling combinations will void the warranty and may result in serious personal injury or death, property damage, or failure of components and machine systems. Cat® hose assembly products are designed and tested as a system to provide reliable connections that maximize hydraulic system safety and reliability. In addition, properly maintained, appropriate Caterpillar tooling is recommended to ensure hoses are crimped to technical specifications. Using Caterpillar hose with another manufacturer's couplings, or Caterpillar couplings with another manufacturer's hose, may result in unreliable, unsafe, or poorly performing hose assemblies. Caterpillar does not recommend or authorize this practice. For more information, refer to SAE J1273 Section 6.3 and ISO 17165-2 Section 6.3. |
| Transmission and Hydraulic Oil Compatible Seals | 3J-1907 (9/16-18) |
| Oil and Fuel Compatible Seals | 214-7568 (9/16-18) |
| Coolant and DEF Compatible Seals | 6V-3250 (9/16-18) |
Compatible Equipment
- Motor Graders: 16, 18, 16M3, 316F
- Wheel Excavators: M315, M315GC
- Compactors: CB-44B
- Excavators: 349F L, 374, 313, 336, 340, 333, 311D LRR, 336 GC, 315 GC, 325, 323, 315D L, 312D L, 314D LCR, 314D CR, 336E L, 326, 313D2, 336F L, 336F LN, 336F, 320, 312E, 320 GC, 312D, 312D2, 329E, 315F LCR, 320E, 313D2 GC, 336E, 320D2 L, 336E LH, 329E L, 330 GC, 336F L XE, 313D2-GC, 312D2 GC, 313D, 315, 313F LGC, 312D2 L, 335F LCR, 312E L, 323D2 L, 318D2 L, 312F, 313F L, 318D2, 330GC, 336E LN, 326GC, 374F L, 345 GC, 349, 390F, 352, 352F, 335, 330, 320D2, 390F L, 374F
- Wheel Loaders: R2900 XE, 938K, 938M, 924K, 926M
- Skid Steer Loaders: 313D2 LGP, 226D3, 239D3
Additional information
| Machine Model | 16, 16M3, 18, 226D3, 239D3, 311D LRR, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313D, 313D2, 313D2 GC, 313D2 LGP, 313D2-GC, 313F L, 313F LGC, 314D CR, 314D LCR, 315, 315 GC, 315D L, 315F LCR, 316F, 318D2, 318D2 L, 320, 320 GC, 320D2, 320D2 L, 320E, 323, 323D2 L, 325, 326, 326GC, 329E, 329E L, 330, 330 GC, 330GC, 333, 335, 335F LCR, 336, 336 GC, 336E, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 345 GC, 349, 349F L, 352, 352F, 374, 374F, 374F L, 390F, 390F L, 924K, 926M, 938K, 938M, CB-44B, M315, M315GC, R2900 XE |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Motor Graders, Compactors |
| Part Source | Genuine OEM |
