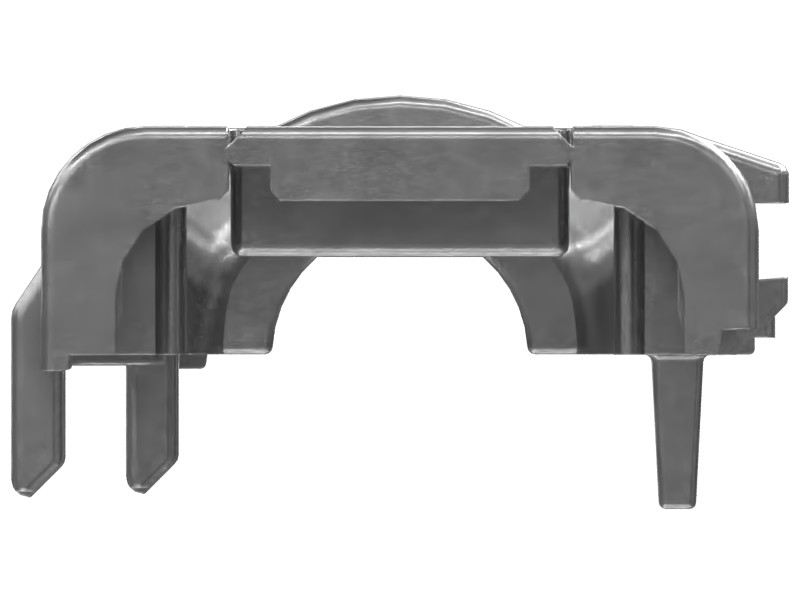

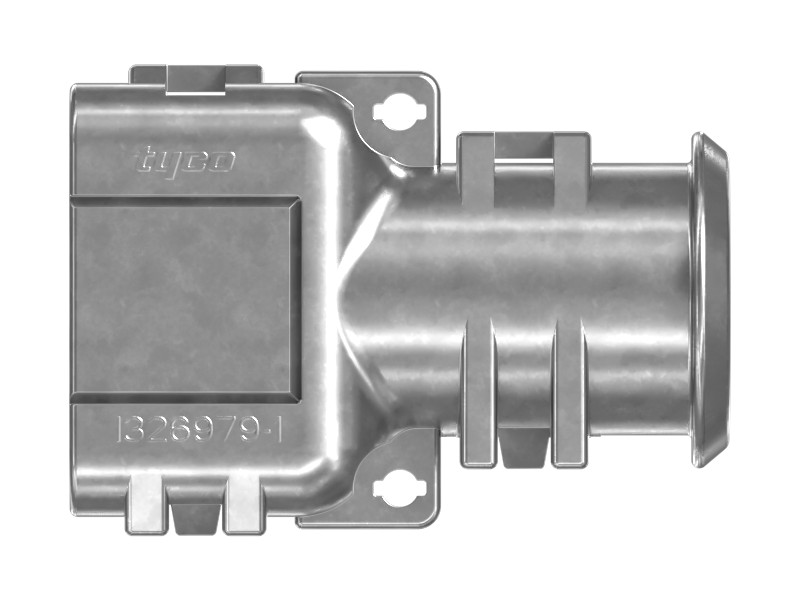

283-0056 Connection Adapter
Cat® Engine Oil Filter Inlet Pressure Sensor Harness Connector Adapter helps connect the engine oil filter inlet pressure sensor to the wiring harness.
Description
Cat adapter connectors are used to secure and protect wiring harness connection points. Cat adapters serve as connection points for conflicting/non-standard size components.
Features
- Half self-locking nylon 3-pin wire adapter
- Heat-shrink retention feature
- Windows must be half disengaged to complete the connection
- Optional self-tapping screw slot for added strength
Applications
The adapter is used to bring engine electronics into compliance with wiring harness standards and to connect incompatible wire connections. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Polyamide Plastic |
|---|---|
| Connector Type | 3 Pin |
| Material Description | Nylon |
| Overall Height | 16.2 mm (0.6 in) |
| Overall Length | 42 mm (1.7 in) |
| Overall Width | 30 mm (1.2 in) |
| Pin | 3 |
Compatible Equipment
- Generator Sets: 3512B, 3516C, G3516, C7.1, 3512E
- Motor Graders: 349 GC
- Wheel Excavators: M315GC
- Engines: C32, C175-16, C18
- Dozers: D8
- Excavators: 316 GC, 313 GC, 313, 355, 3512C, 333, 312 GC, 352, 320D L, 340, 330 GC, 315 GC, 326, 326 GC, 336, 325, 350, 350MHPU, 3516B, 3508B, 621K, 315, 323, 333 GC, 320 GC, 323 GC, 320, 313 GX, 330
- Off-Highway Trucks: 793, 772G, 775G, 770G, 789, 797F, 777
Additional information
| Machine Model | 312 GC, 313, 313 GC, 313 GX, 315, 315 GC, 316 GC, 320, 320 GC, 320D L, 323, 323 GC, 325, 326, 326 GC, 330, 330 GC, 333, 333 GC, 336, 340, 349 GC, 350, 3508B, 350MHPU, 3512B, 3512C, 3512E, 3516B, 3516C, 352, 355, 621K, 770G, 772G, 775G, 777, 789, 793, 797F, C175-16, C18, C32, C7.1, D8, G3516, M315GC |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Dozers, Motor Graders, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
