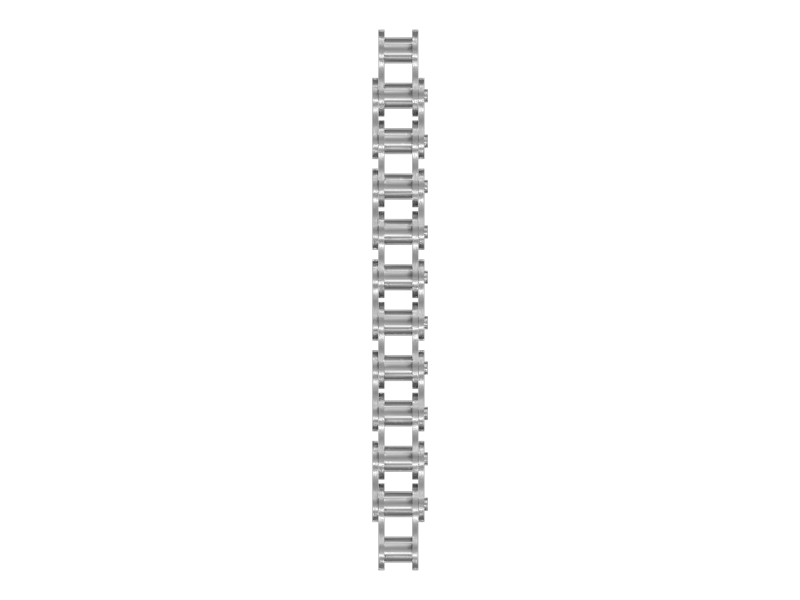

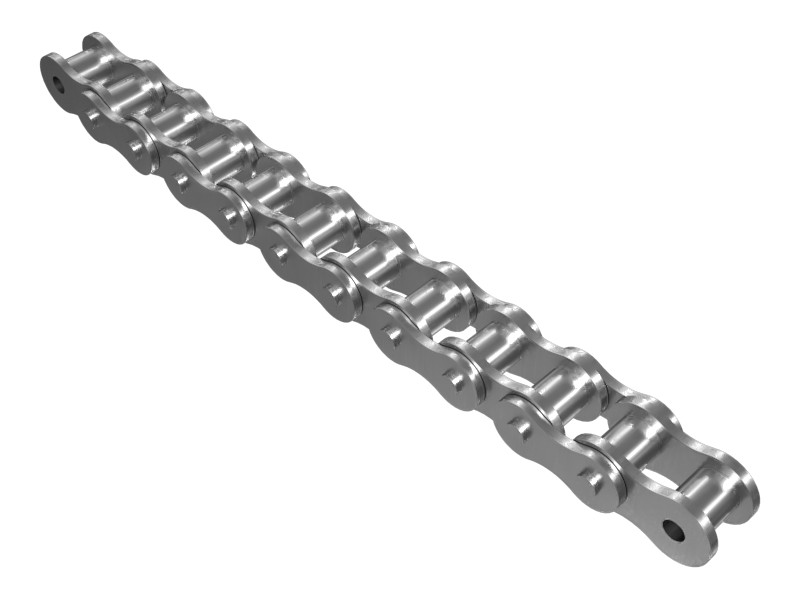

Description
:
The chain drive is a basic component of the drive system. It consists of a series of interconnected links used to transmit power from a motor or engine to driven components. When the motor rotates, it drives the drive sprocket, which in turn rotates the chain. The chain then transfers this rotational motion to the driven sprocket, causing the driven component to move or be driven.
Features

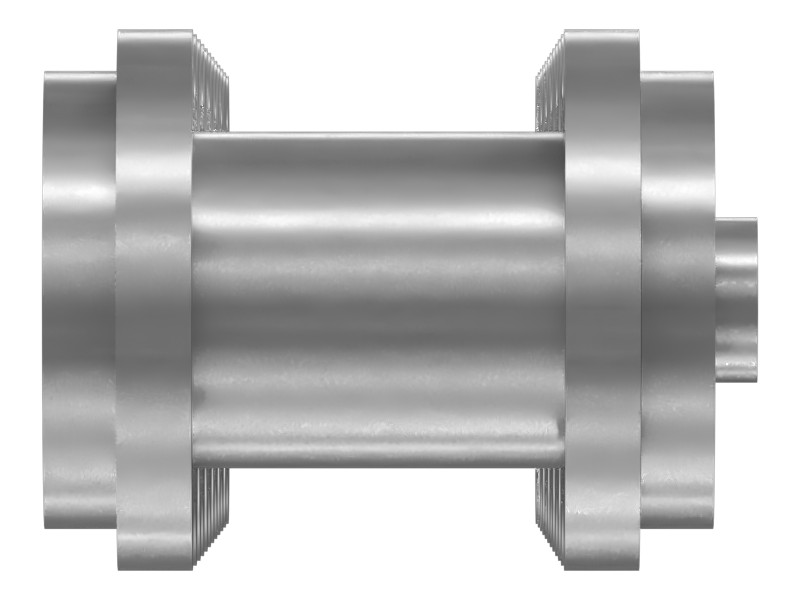

- Roller Diameter: 28.5 mm (1,122 in)
- Number of Inner Links (Roller): 25
- Number of Outer Links (Rigid): 24
- Designed to withstand tensile loads, wear, and fatigue
Applications
The chain drive is a reliable and efficient method of power transmission that keeps machinery and vehicles in all industries running smoothly and efficiently. It is used in Cat 112E, 12, 120, 120, 120B, 120B, 120K, 12E, 12F, 12G, 12H, 12K, 130G, 140, 140C, 140G, 140H, 140K, 140M, 143H, 160G, 160K, SEM918, SEM919, SEM920F, SEM921, SEM92.2, and SEM922F motor graders.
Specifications
| Inside Diameter | 0.37 in |
|---|---|
| Material | Rubber, Steel |
| Outside Diameter | 1.25 in |
| Pitch | 50.45 mm |
| Thickness | 0.5 in |
Compatible Equipment
- Motor Graders: 140K, 140G, 140H, 12H, 12K, 140 GC
