Description

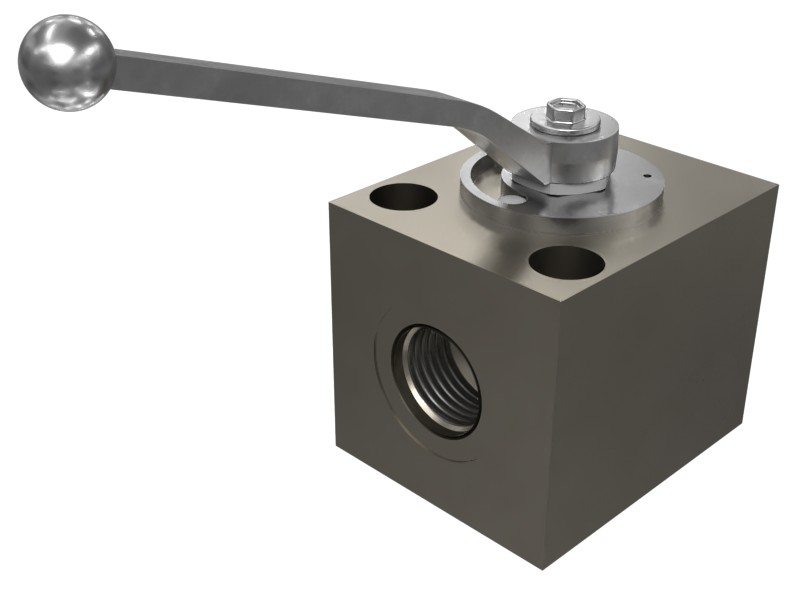

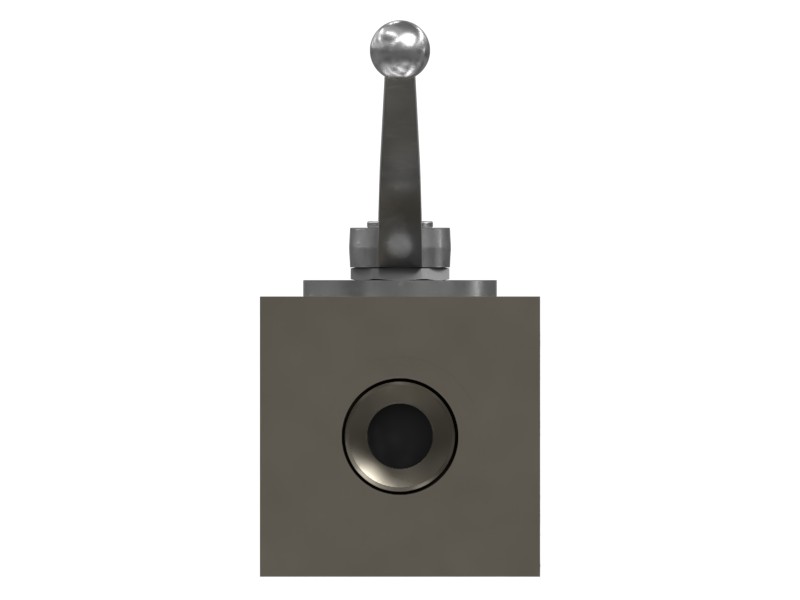

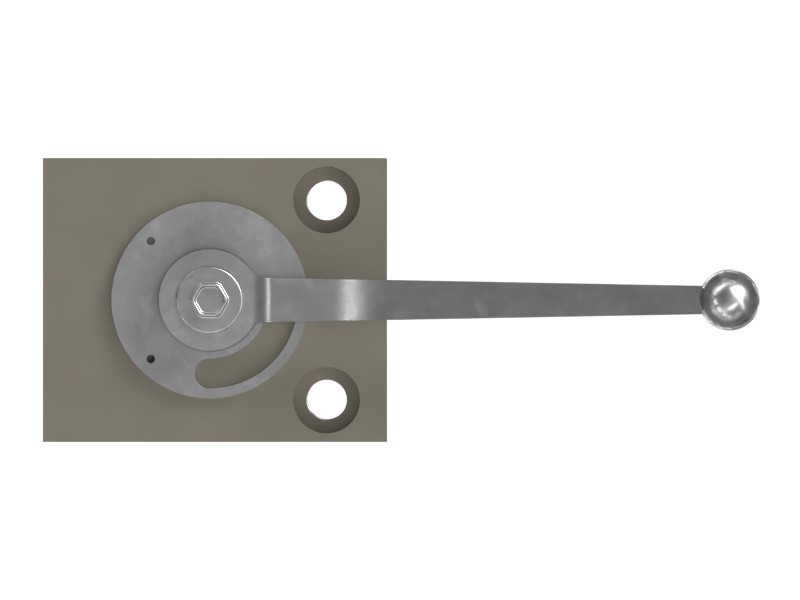

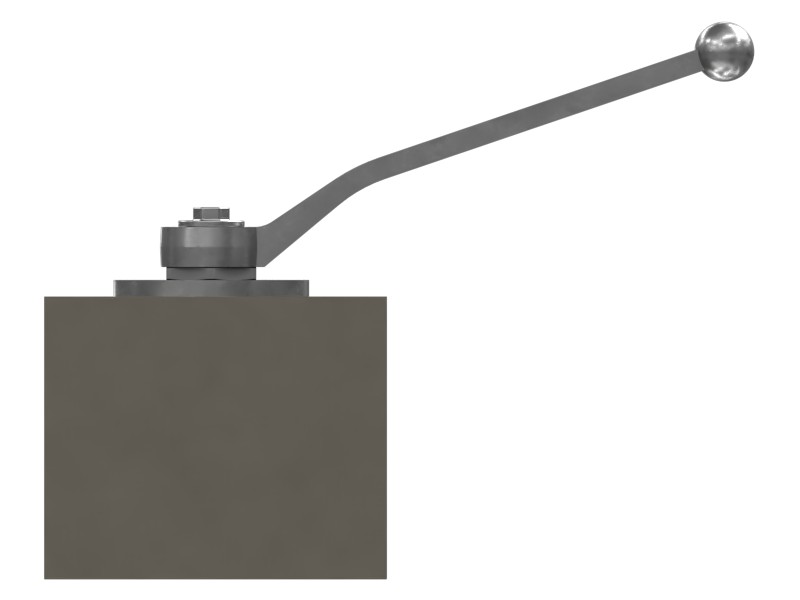

A ball valve is an in-line component that can manually shut off fluid flow when the handle is turned a quarter turn.
Features
- Manual ball valve
- Carbon steel valve body
- Port Size: -16 STOR, 1-5/16-12 UN
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Material Description | Carbon Steel |
| Length | 103 mm (4.05 in) |
| Width | 85 mm (3.35 in) |
| Thread Size | 1-5/16 in |
Compatible Equipment
- Motor Graders: 316F
- Wheel Excavators: M315, M315GC
- Excavators: 313 GC, 316 GC, 313, 314C, 312D2, 312C L, 311C, 318D2 L, 313D2 GC, 315D L, 314D CR, 311D LRR, 312 GC, 312 GX, 313 GX, 316 GX, 313F L, 312D L, 312D2 GC, 312D, 312C, 313F LGC, 315F LCR, 318D2, 312D2 L, 315C, 314D LCR, 312E L, 313D2, 312E, 312F, 313D2-GC, 315, 315 GC
Additional information
| Machine Model | 311C, 311D LRR, 312 GC, 312 GX, 312C, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 312E, 312E L, 312F, 313, 313 GC, 313 GX, 313D2, 313D2 GC, 313D2-GC, 313F L, 313F LGC, 314C, 314D CR, 314D LCR, 315, 315 GC, 315C, 315D L, 315F LCR, 316 GC, 316 GX, 316F, 318D2, 318D2 L, M315, M315GC |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
