Description

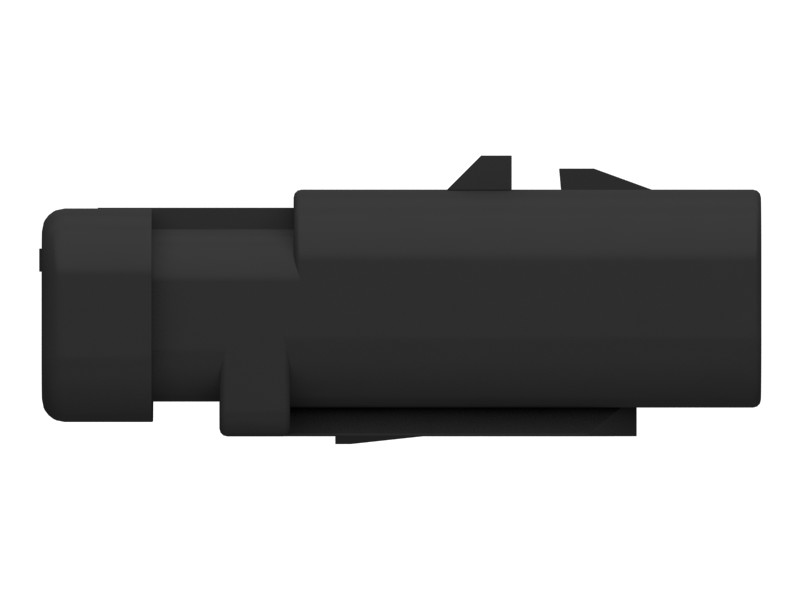

Cat connectors use a pin-and-socket connection system to provide reliable electrical connections in a range of electrical applications on Cat heavy equipment. Quality suited to machine requirements, meeting your expectations.
Features
- Plastic receptacle
- 14-20 AWG
- Number of Contacts: 3
- Body Color: Black
- Seal Color: Green
- RoHS compliant
Applications
Cat connector plug groups provide a reliable mating connection between wires or between a wire and equipment.
Specifications
| Length | 47.6 mm (1.87 in) |
|---|---|
| Width | 24.1 mm (0.95 in) |
| Height | 19.2 mm (0.76 in) |
| Material | Nylon, 6, 6/12, 6/6 Plastic |
Compatible Equipment
- Generator Sets: C7.1, 3512B, C4.4, C9
- Track Loaders: 953, 963, 963K, 953K
- Cold Planers: PL61
- Compactors: CS12, CB16, CW-34, CB-64B, CB-44B, CB-66B, 816, 815, 814, CS11, CB15, CB13, CB10, CS-533E, CS-54B
- Engines: C27, C32, C6.6, C13
- Excavators: 320D2, 320D, 326D2 L, 329D2 L, 329D2, 326D2, 390F L, 374F, 316 GC, 374, 349F L, 352, 3516E, 350, 3101, 336F L, 320D2 L, 312D2, 323, 318D2 L, 313D2-GC, 320 GC, 320D2 GC, 313D2, 329E L, 312E L, 312D2 GC, 313D2 GC, 315F LCR, 323D2 L, 320E, 312F, 320, 395, 355, 312E, 330D2 L, 318D2, 320D GC, 312D2 L, 336F L XE, 330D2, 336F LN, 335F LCR, 320D L, 336F, 329E, 323D2, 313F L, 323D L, 637K, 657G, 637G, 621G, 352F, 621K, 621H, 390F, 349, 374F L, 434F2, 416F2, 428F, XQP200, 350MHPU
- Asphalt Pavers: AP655F, AD63
- Skid Steer Loaders: 313D2 LGP, 24
- Motor Graders: 120, 12K, 140K, 160K, 316F, 140 GC, 349 GC
- Dozers: D6N, D4, D5K2 XL, D3K2 LGP, D6K2, D7, D10R
- Wheel Loaders: 950 GC, 926M, 938M, 966F, 938K, 924K, R2900G, R3000H
- Off-Highway Trucks: 740B, 773, 773F, 794 AC, 772G, 770G, 797F, 793F, 798 AC, 796 AC, 725C2, 785D, 775G, 793D, 745C, 725, 740, 730, 735, 789
