Description
Cat receptacle group connectors secure wiring connections based on pin count and locking mechanism.
Features

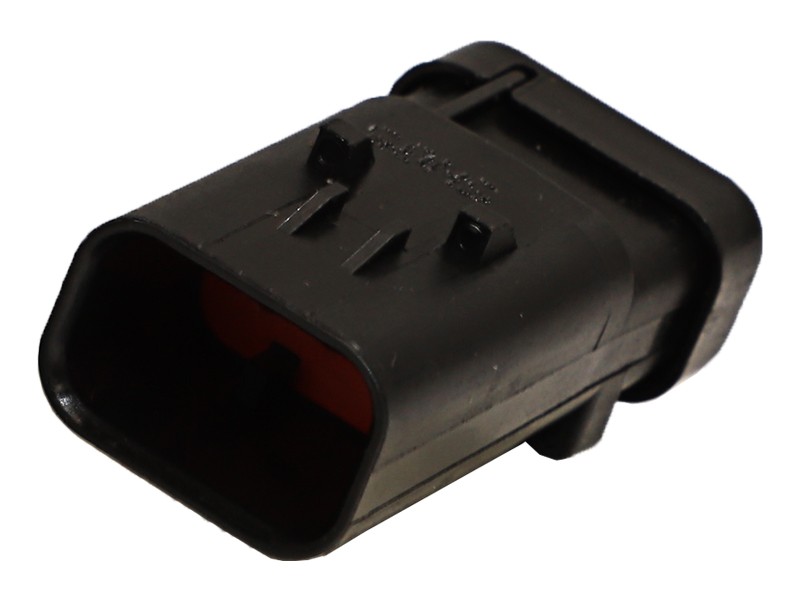

Black 3-Pin Receptacle Connector
Applications
Receptacle group connectors serve as electrical connectors in wiring harnesses. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Overall Height | 19.2 mm (0.8 in) |
|---|---|
| Standard Color | Black |
| Overall Length | 47.6 mm (1.9 in) |
| Connector Type | Pin |
| Overall Width | 24.1 mm (0.9 in) |
| Pin | 3 |
| Material | Nylon, 6, 6/12, 6/6 Plastic |
Compatible Equipment
- Generator Sets: 3512B, 3512E, C9, C4.4, G3516C, G3516
- Track Loaders: 963, 972, 982
- Compactors: CB-66B, CB-64B, CB-44B, C13B, CB16, CB15, CB13, CB10
- Engines: C32, C15, C13, C7, C18
- Excavators: 330, 320D, 313, 316 GC, 313 GC, 374, 320, 312 GX, 316 GX, 350, 352, 315, 340, 336, 323, 325, 330 GC, 320 GC, 326, 3512C, 3516B, 315 GC, 3101, 320D L, 350MHPU, 312 GC, 336 GC, 330GC, 395, 349, 432, 434F2, 416F2, 313 GX, 335, 355, 3508B, 3516E
- Wheel Excavators: M320, M315, M315GC
- Dozers: D6T LGP, D11, D10, D11T, D3K2 LGP, D6T, D8T, D7E, D9T, D5K2 XL, D7R II, D10T2, D9, D8
- Wheel Loaders: 950, 950 GC, 966, 972L, 980L, 966L, 962L, 950L, 966K, M314, RM400, 980
- Off-Highway Trucks: 770G, 740B, 785D, 793D
Additional information
| Machine Model | 3101, 312 GC, 312 GX, 313, 313 GC, 313 GX, 315, 315 GC, 316 GC, 316 GX, 320, 320 GC, 320D, 320D L, 323, 325, 326, 330, 330 GC, 330GC, 335, 336, 336 GC, 340, 349, 350, 3508B, 350MHPU, 3512B, 3512C, 3512E, 3516B, 3516E, 352, 355, 374, 395, 416F2, 432, 434F2, 740B, 770G, 785D, 793D, 950, 950 GC, 950L, 962L, 963, 966, 966K, 966L, 972, 972L, 980, 980L, 982, C13, C13B, C15, C18, C32, C4.4, C7, C9, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, D10, D10T2, D11, D11T, D3K2 LGP, D5K2 XL, D6T, D6T LGP, D7E, D7R II, D8, D8T, D9, D9T, G3516, G3516C, M314, M315, M315GC, M320, RM400 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
