Description

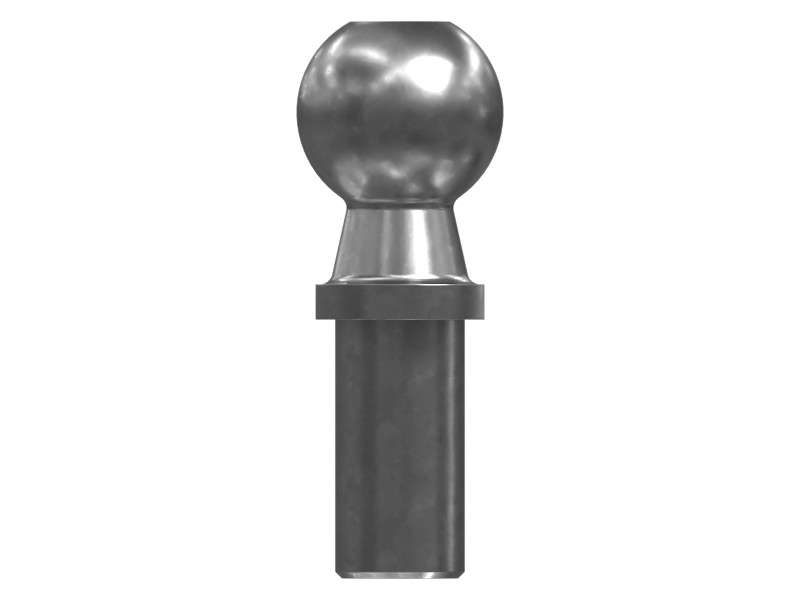

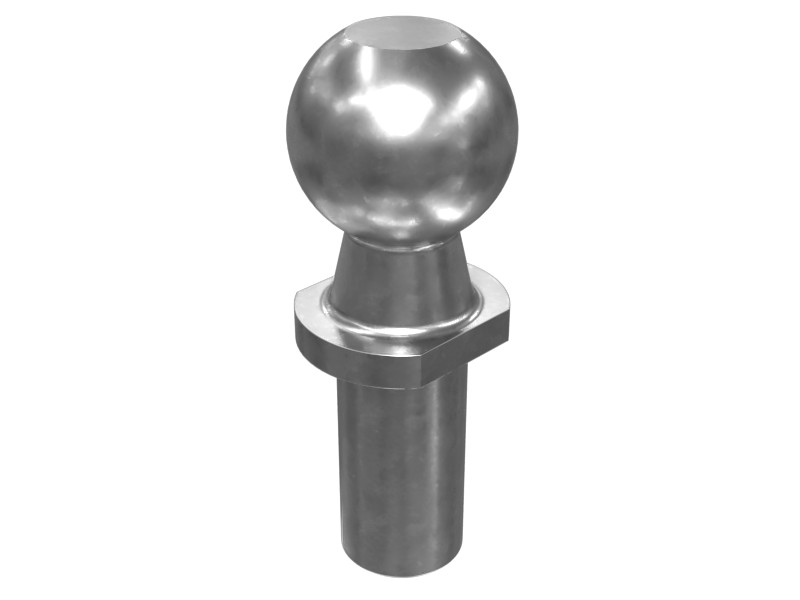

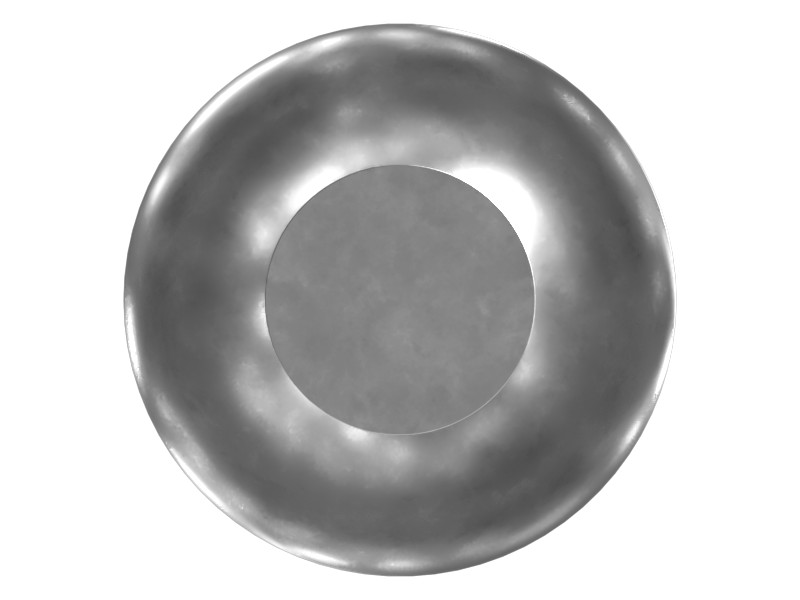

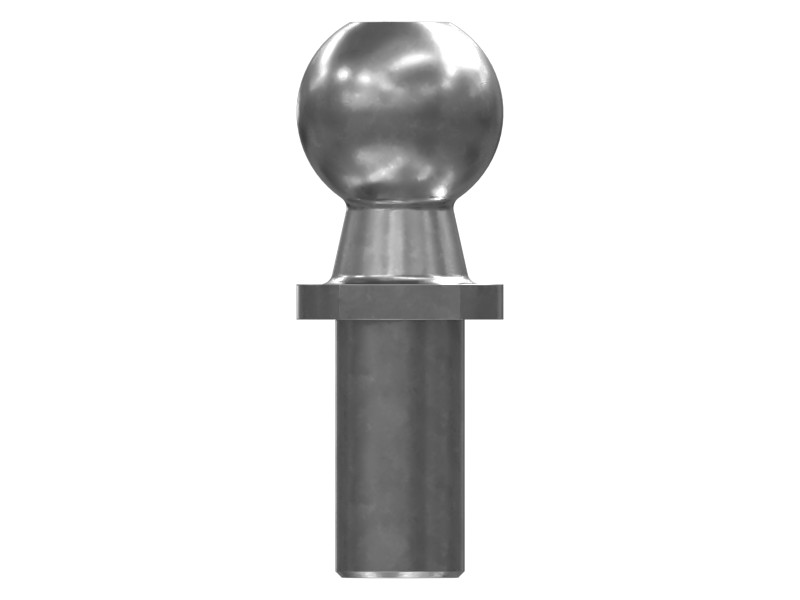

Cat ball studs are used to mount gas spring cylinders that support the weight of the hinge group when opened.
Features
- Steel ball stud
- Wrench Flats: 13 mm (0.51 in)
- Ball Diameter: 16 mm (0.63 in)
- Thread Size: M10X1.5
- Thread Length: 20 mm (0.79 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Steel |
|---|---|
| Length | 43 mm (1.69 in) |
| Head Diameter | 16 mm (0.63 in) |
| Thread Size | M10X1.5 mm |
Compatible Equipment
- Cold Planers: PM620, PM622
- Compactors: CS-56, CS12, CS7, CS74B, CC-34B, CW-34, CB-24B, CP54B, CB-34B, CS68B, CW-16, CS79B, CS56B, CP56B, CS54B, CS78B, CS11, CS-54B, CS64B
- Wheel Loaders: RM500B, R1700K
- Asphalt Pavers: AP655F, AP655F L, AP-600D
