Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Thread Size | M8 mm (0 in) |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Class or Grade | ISO 898-1 Class 10.9 |
| Coating | Zinc Phosphate + Oil |
| Bolt Length | 55 mm (2.165 in) |

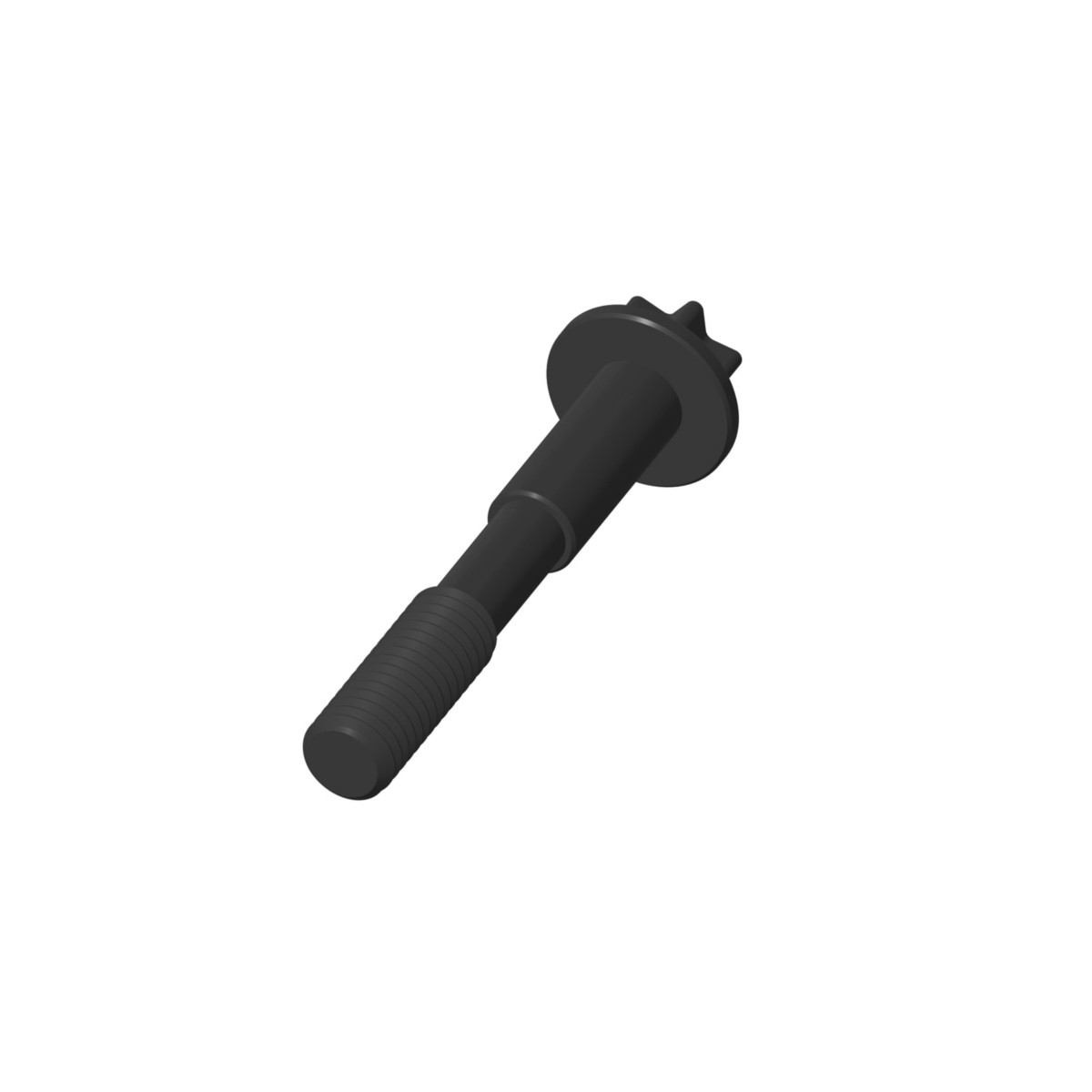

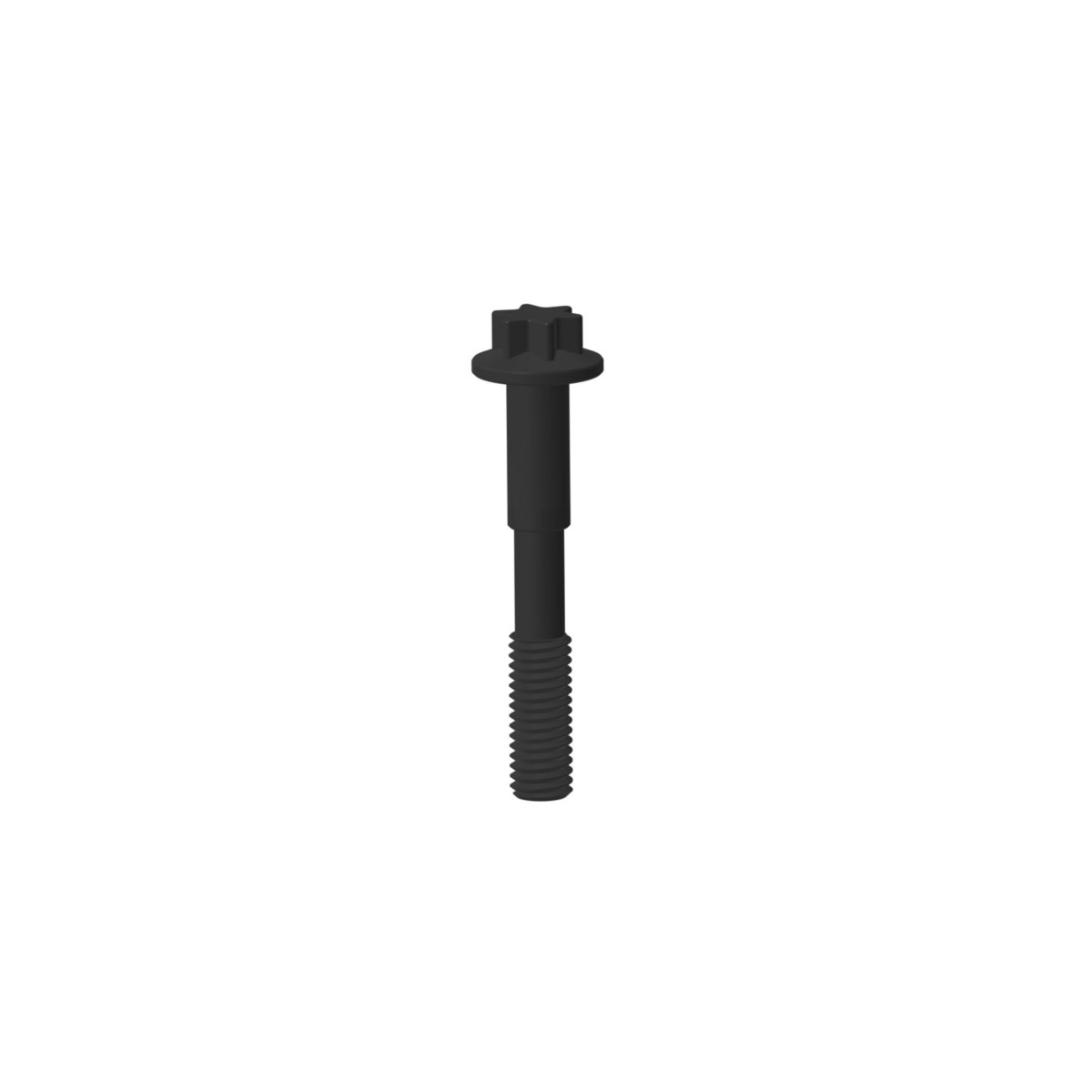

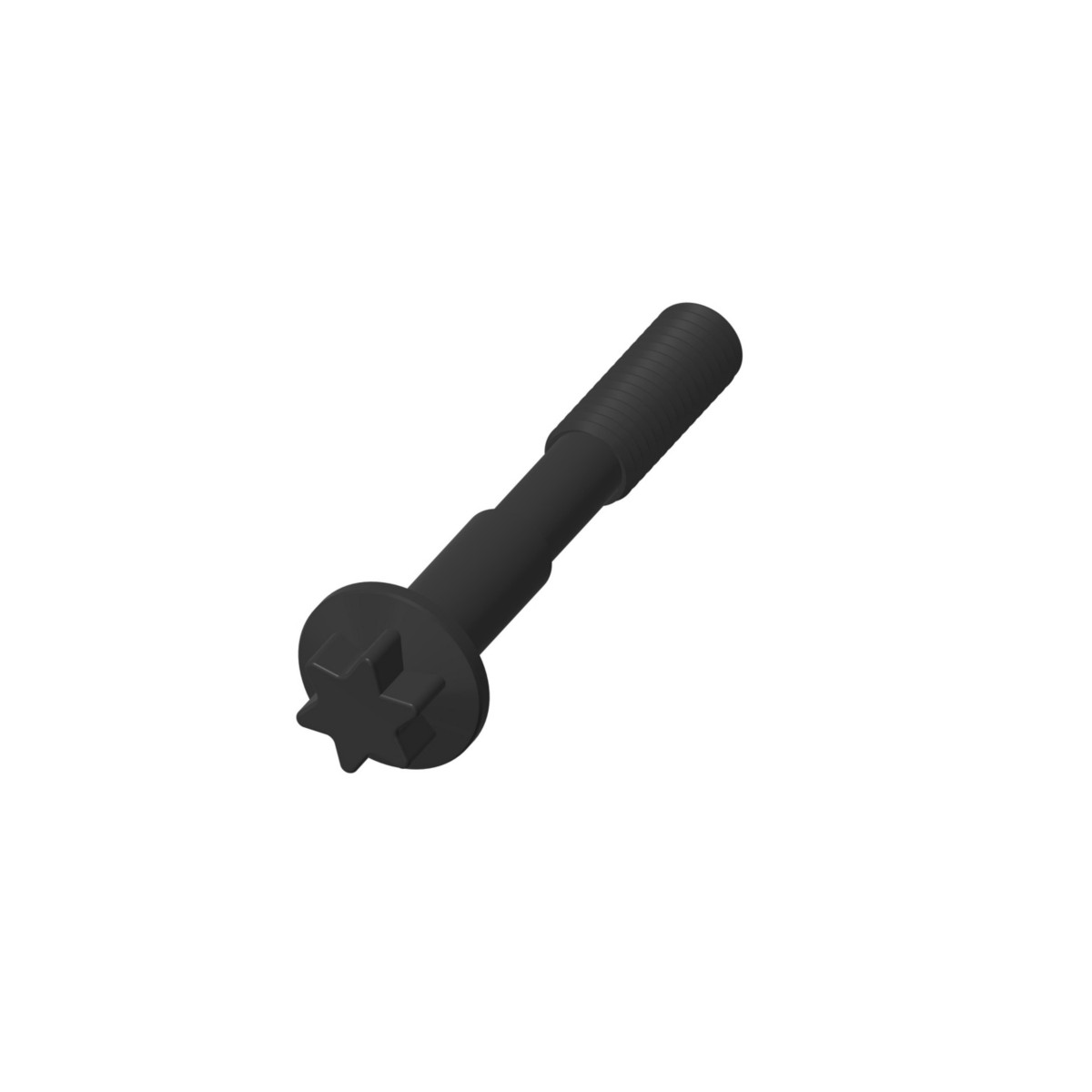

| Bolt Type | External Hexalobular (Torx) |
| Handle Length | 33 mm (1.299 in) |
Compatible Equipment
- Generator Sets: C7.1, C4.4, 3512B, C4.4DE88E0
- Track Loaders: 963, 953, 953K, 953D, 963K, 963D
- Cold Planers: PL61
- Compactors: CS12, CS7, 815, 816, 814, CS11, CW-34, CS54B, CS68B, CS79B, CB-66B, CP56B, CS56B, CS-56, CS74B, CS78B, CB-64B, CB-44B, CW-16, CP54B, CB16, CS-54, CB13, CB10, CB15, CS-54B, CS64B
- Engines: C6.6
- Excavators: 320D, 320D2, 330, 326D2, 329D2, 326D2 L, 329D2 L, 320 GX, 320 GC, 320, 336 GC, 323D L, 320D GC, 320D L, 333, 330 GC, 323D2 L, 323D2, 330D2, 323GC, 330D2 L, 320D2 GC, 323, 313D2 GC, 318D2, 326GC, 318D2 L, 326, 313D2-GC, 313D2, 323 GX, 333 GC, 326 GC
- Asphalt Pavers: AP655F, AP655F L, AP-600D
- Motor Graders: 140 GC, 120
- Wheel Excavators: M320, M315, M315GC, M313D, M317D2, M322D, IT14G, M315D2, M320D2, M315D
- Dozers: D4, D6K2, D5K LGP, D5K XL, D6N, D5K2 XL, D3K2 LGP
- Wheel Loaders: 950 GC, 924HZ, 962L, 950L, 924K, 938K, 928HZ
Additional information
| Machine Model | 120, 140 GC, 313D2, 313D2 GC, 313D2-GC, 318D2, 318D2 L, 320, 320 GC, 320 GX, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 323, 323 GX, 323D L, 323D2, 323D2 L, 323GC, 326, 326 GC, 326D2, 326D2 L, 326GC, 329D2, 329D2 L, 330, 330 GC, 330D2, 330D2 L, 333, 333 GC, 336 GC, 3512B, 814, 815, 816, 924HZ, 924K, 928HZ, 938K, 950 GC, 950L, 953, 953D, 953K, 962L, 963, 963D, 963K, AP-600D, AP655F, AP655F L, C4.4, C4.4DE88E0, C6.6, C7.1, CB-44B, CB-64B, CB-66B, CB10, CB13, CB15, CB16, CP54B, CP56B, CS-54, CS-54B, CS-56, CS11, CS12, CS54B, CS56B, CS64B, CS68B, CS7, CS74B, CS78B, CS79B, CW-16, CW-34, D3K2 LGP, D4, D5K LGP, D5K XL, D5K2 XL, D6K2, D6N, IT14G, M313D, M315, M315D, M315D2, M315GC, M317D2, M320, M320D2, M322D, PL61 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
