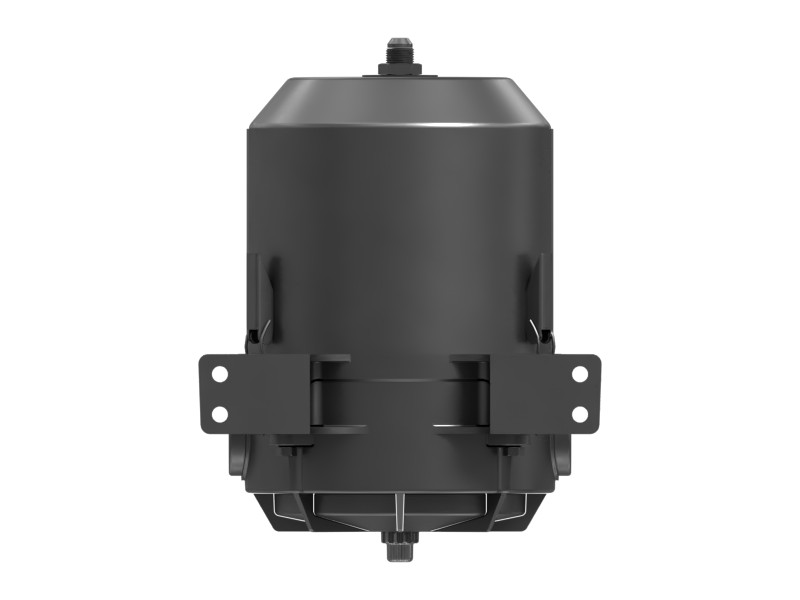

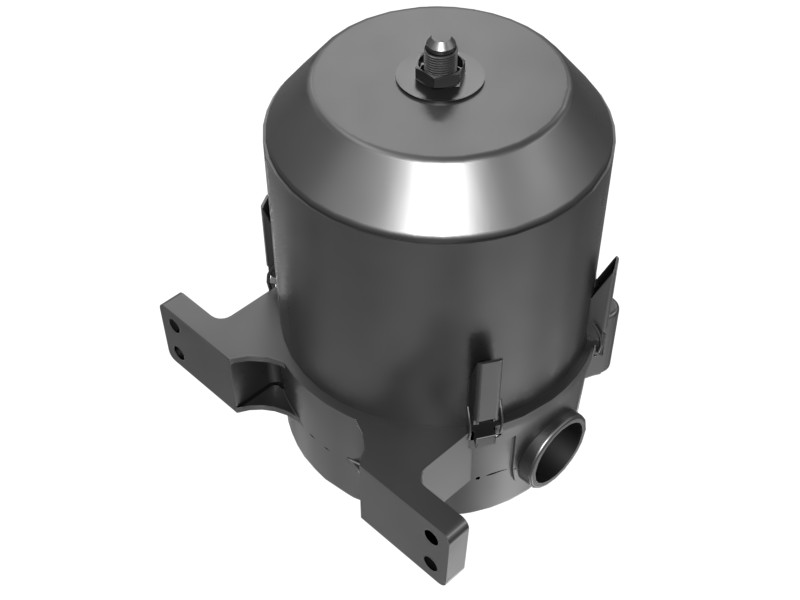

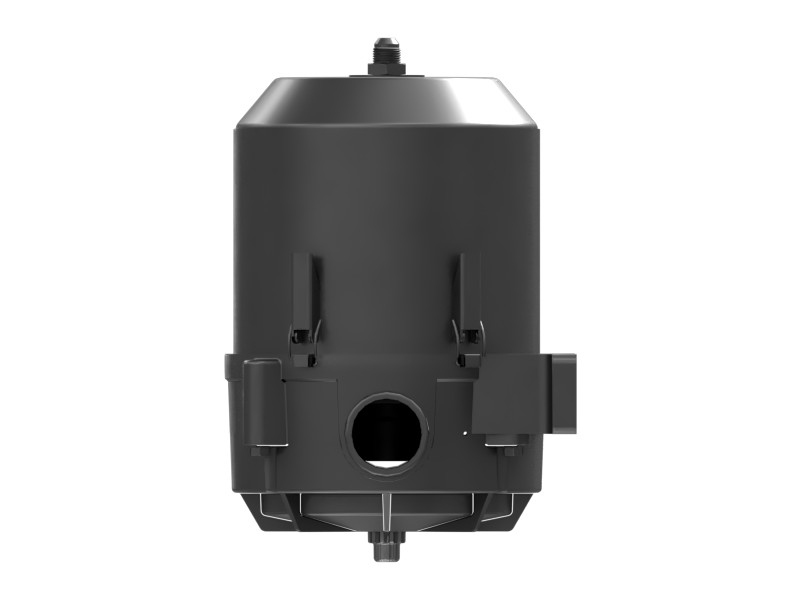

279-2475 203.7 mm Diameter Fumes Disposal Filter
Cat® 203.7 mm Diameter Aluminum Fumes Disposal Filter for Positive-Pressure Crankcase Ventilation Systems
Description
The fumes disposal filter is used to capture and remove fumes or exhaust gases from a system or process. The filter is configured for the left side of the engine. It provides a sealed enclosure to contain the fumes and keep them from escaping into the surrounding environment. The housing is designed with a left-side inlet that allows fumes to enter the filter.
Attributes
- When the filter unit is pressurized to 6.2 kPa for 15 seconds, the maximum allowable leakage is 0.25 kPa
- The filter housing has a maximum operating temperature of 120°C
- Provides 4 mounting holes with a diameter of 10.8 mm
Applications
The fumes disposal filter is used to treat captured fumes. It uses suitable filter media to effectively capture and remove contaminants.
Specifications
| Material | Alloy Copper |
|---|
Compatible Equipment
- Generator Sets: 3516C
- Engines: C32, C18
- Excavators: 3512C
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
