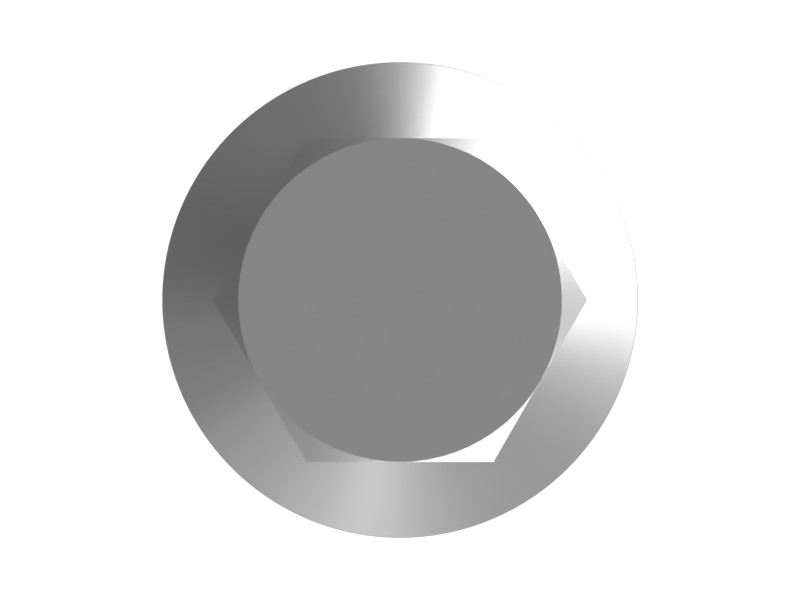

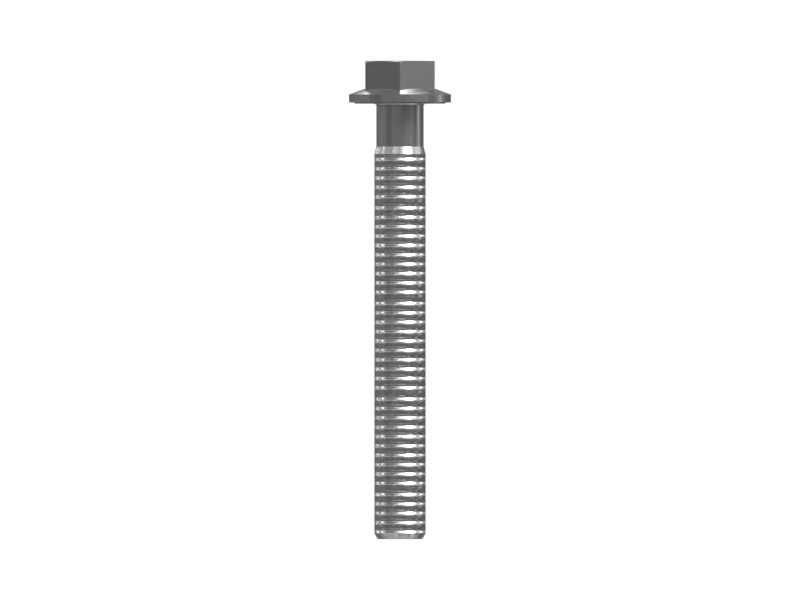

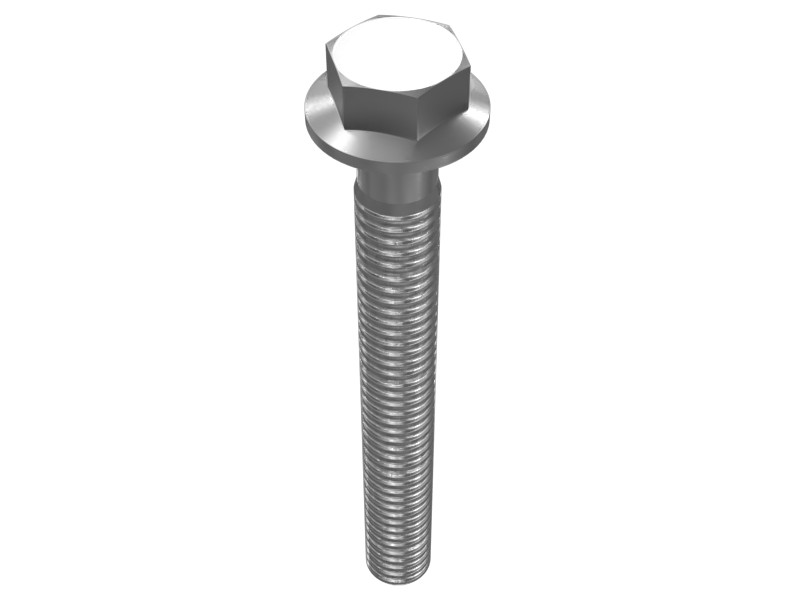

276-5600 Flange Head Bolt

Description

Fastener parts (such as 276-5600) are designed for specific applications based on size, strength, clamp load, and past performance. This information is not available to other manufacturers. They are carefully selected to last until the machine is rebuilt or reaches the end of its life. Non-Cat hardware and fasteners may appear to work for your machine, but other companies don't know your equipment the way we do.

These bolts are used where a separate washer is not needed.

Features

Hex flange head bolt
Drive: 19 mm
Thread Size: M14X1.5
Bolt Length: 120 mm
Grip Length: 14 mm
Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.

Applications

Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.

Specifications

Thread Direction	RH
Class or Grade	ISO 898-1 Class 10.9
Locking Feature	None
Thread Size	M14 mm (0 in)
Bolt Length	120 mm (4.724 in)
Material	Not Specified
Bolt Type	Flange Head Bolt
Coating	Not Specified
Handle Length	14 mm (0.551 in)
Flange Type	Smooth Flange Face
Thread Size (Diameter × Pitch)	M14 X 1.5 mm
Flange Diameter	Not Specified mm

Compatible Equipment

Generator Sets: C7.1, C7.1DE200E, C4.4, 3512B
Track Loaders: 963, 963K, 953K, 953
Cold Planers: PL61
Compactors: CS12, 815, 816, 814, CS74B, CS79B, CS56B, CS68B, CP56B, CS78B, CB10
Engines: C6.6
Excavators: 320D2, 330, 320D, 329D2 L, 329D2, 326D2, 326D2 L, 313 GC, 313, 320D L, 315 GC, 335, 320D2 L, 320D GC, 323D L, 320, 326, 336 GC, 323D2, 330D2, 323D2 L, 323, 329E L, 330GC, 326GC, 330 GC, 323GC, 329E, 315, 330D2 L, 320E, 335F LCR, 320D2 GC, 333 GC, 326 GC, XQP200, 336, 333, 432, 323 GX
Asphalt Pavers: AP655F, AP-600D, AP655F L
Motor Graders: 140 GC, 120
Wheel Excavators: M320, M320D2
Dozers: D6K2, D6N, D1, D4
Wheel Loaders: 950 GC, 926M, 938K, 938M, 950L, M314, 924K, 962L, 966F, 950

Machine Model	120, 140 GC, 313, 313 GC, 315, 315 GC, 320, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D L, 323D2, 323D2 L, 323GC, 326, 326 GC, 326D2, 326D2 L, 326GC, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 3512B, 432, 814, 815, 816, 924K, 926M, 938K, 938M, 950, 950 GC, 950L, 953, 953K, 962L, 963, 963K, 966F, AP-600D, AP655F, AP655F L, C4.4, C6.6, C7.1, C7.1DE200E, CB10, CP56B, CS12, CS56B, CS68B, CS74B, CS78B, CS79B, D1, D4, D6K2, D6N, M314, M320, M320D2, PL61, XQP200
Equipment Type	Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets
Part Source	Genuine OEM

Machine Model

120, 140 GC, 313, 313 GC, 315, 315 GC, 320, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D L, 323D2, 323D2 L, 323GC, 326, 326 GC, 326D2, 326D2 L, 326GC, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 3512B, 432, 814, 815, 816, 924K, 926M, 938K, 938M, 950, 950 GC, 950L, 953, 953K, 962L, 963, 963K, 966F, AP-600D, AP655F, AP655F L, C4.4, C6.6, C7.1, C7.1DE200E, CB10, CP56B, CS12, CS56B, CS68B, CS74B, CS78B, CS79B, D1, D4, D6K2, D6N, M314, M320, M320D2, PL61, XQP200

Equipment Type

Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets

Part Source

Genuine OEM
