Description

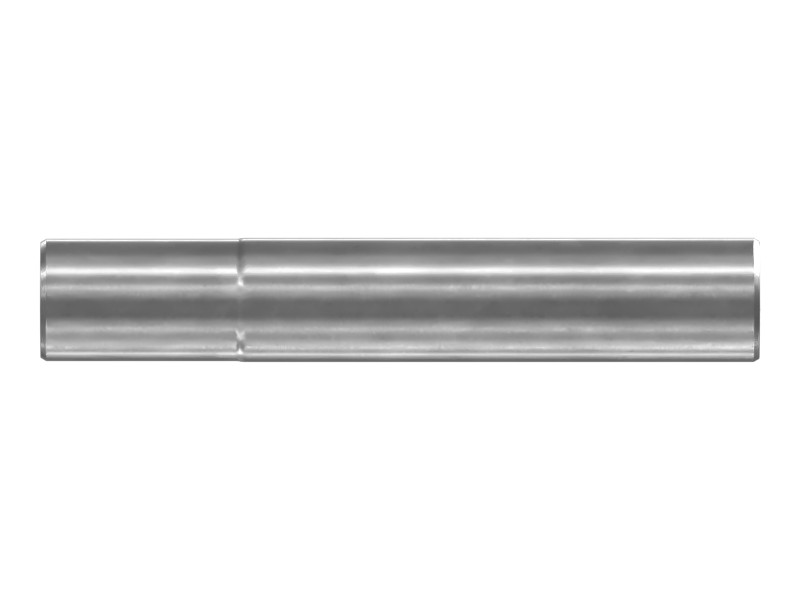

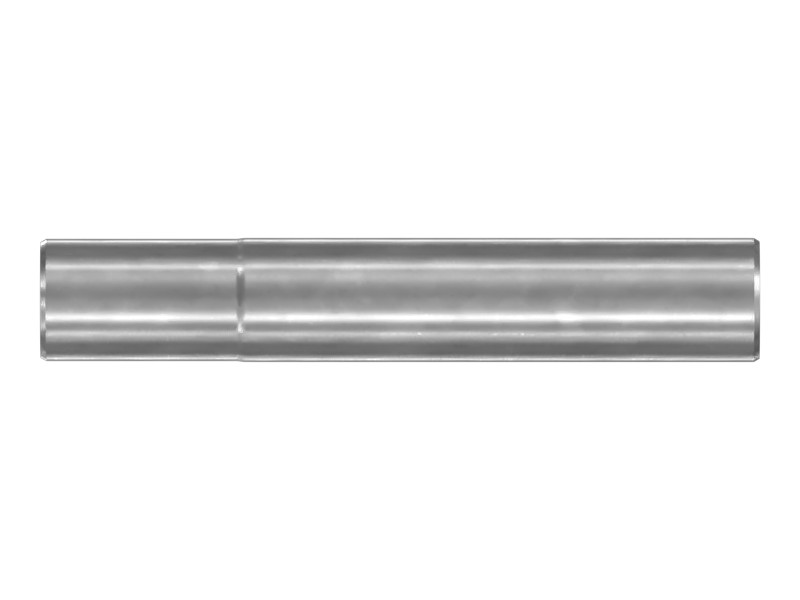

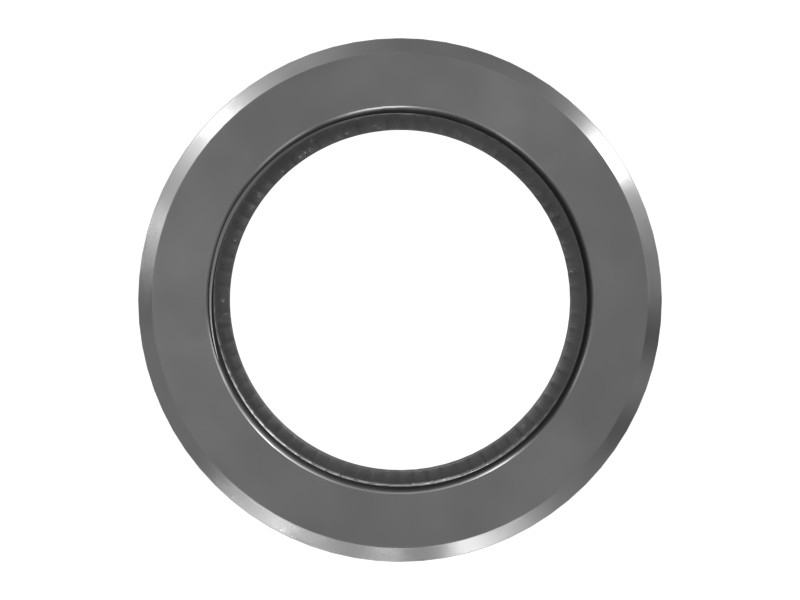

The valve guide is a component used in the cylinder head of an internal combustion engine. It is made of gray cast iron and is firmly mounted on the valve stem. The guide ensures proper alignment and guidance of the valve during operation.
Features
- Magnesium phosphate coating provides excellent corrosion resistance and improves paint adhesion
- Prevents lateral movement and guides the valve stem in a controlled manner
- Built to exact specifications for durability and reliable performance
Applications
The valve guide is used in the cylinder head to support and guide the intake and exhaust valves as they open and close within their respective valve seats.
Specifications
| Hole Size | 0.96 in |
|---|---|
| Inside Diameter | 13.6 mm |
| Length | 103 mm (4.05 in) |
| Material | Cast Iron |
| Outside Diameter | 22.02 mm (0.69 in) |
| Overall Length | 706.9 mm (17.44 in) |
| Overall Width | 17.17 in |
| Weight | 0.09 kg (81.17 lb) |
Compatible Equipment
- Generator Sets: 3516C, 3512B, C4.4
- Dozers: D11R, D11N
- Excavators: 3516B, 3512C, 3508B, 3516E
- Off-Highway Trucks: 789D, 785D, 785, 789, 777D, 793D, 777
