Description
Cat® Advanced Efficiency engine oil filters provide superior particle protection,
Prevent them from entering the lube system during service or component wear. In addition to being built into equipment, Advanced Efficiency lube filters are also available as upgrades for some Standard Efficiency filters.
While all engine oil filters remove some abrasive particles, many premium filter elements are not efficient at capturing and holding the particles that do the most damage to lube system components. Cat engine oil filters are manufactured in our own facilities with a robust one-piece design and non-metallic center tube to maximize cleanliness and reduce the potential for leaks.
Our filter elements not only improve performance but also protect critical components, ultimately extending service life and increasing resale value.
Choosing Genuine Cat filters is a smart business decision that pays off every day.
Features

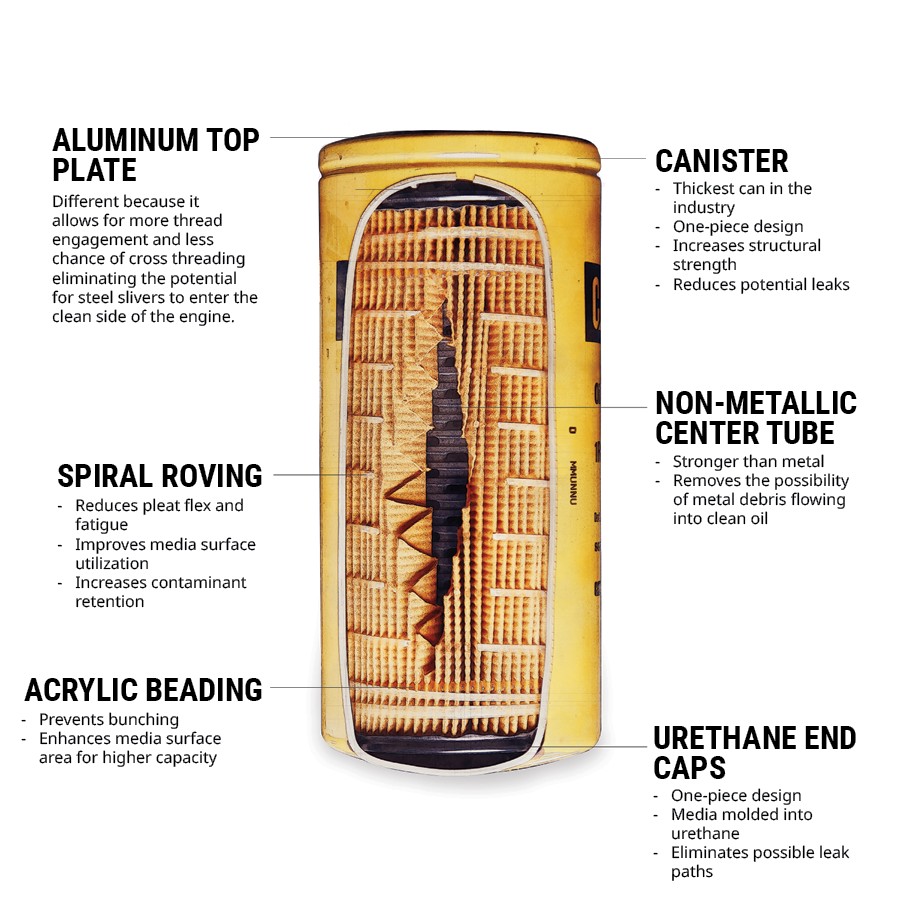

- Spiral roving and beading ensure pleat stability and improve particle retention
- Properly cured filter media ensures long-lasting, consistent performance
- One-piece aluminum base plate
- One-piece polyurethane plastic end caps eliminate leakage problems
Specifications
| Material | Carbon Steel |
|---|---|
| Efficiency Rating | Advanced Efficiency |
| Length | 307 mm (12.185 in) |
| Diameter | 135.8 mm (5.346 in) |
| Flow Direction | Out-to-In |
| Filter Type | Spin-On |
| Efficiency Category | Advanced High Efficiency |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3512E, G3516C, C4.4
- Dozers: D11R, D11N
- Excavators: 3516E, 3512C, 3508B, 3516B, 6060
- Wheel Loaders: R2900G
- Off-Highway Trucks: 789D, 777D, 789, 793D, 785D, 785, 777, 793
- Asphalt Pavers: AD30
