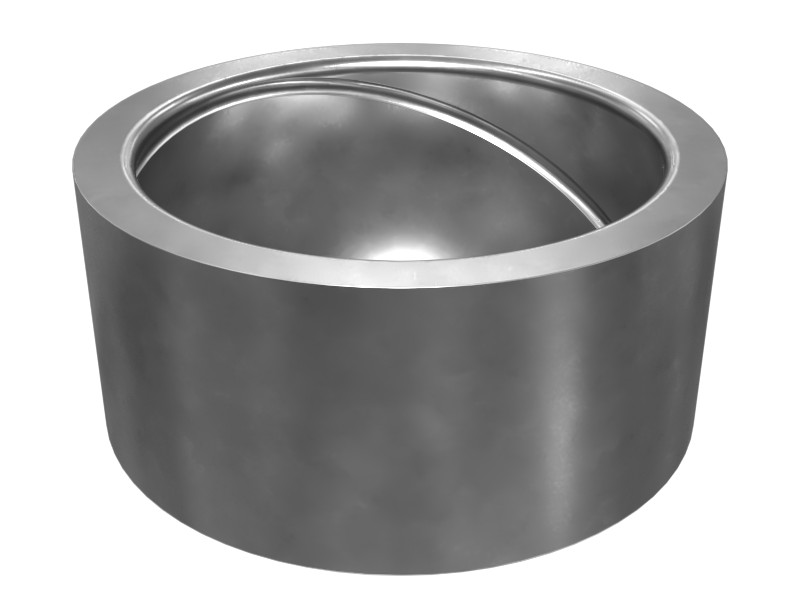

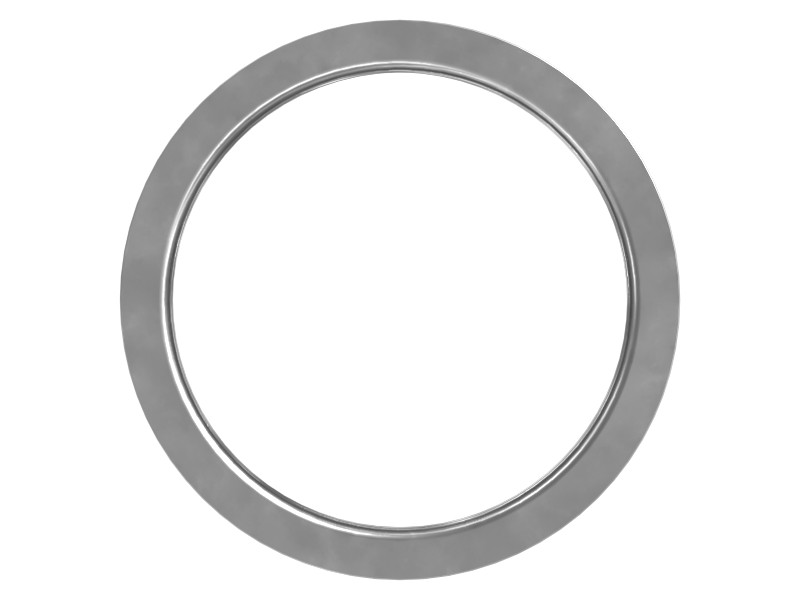

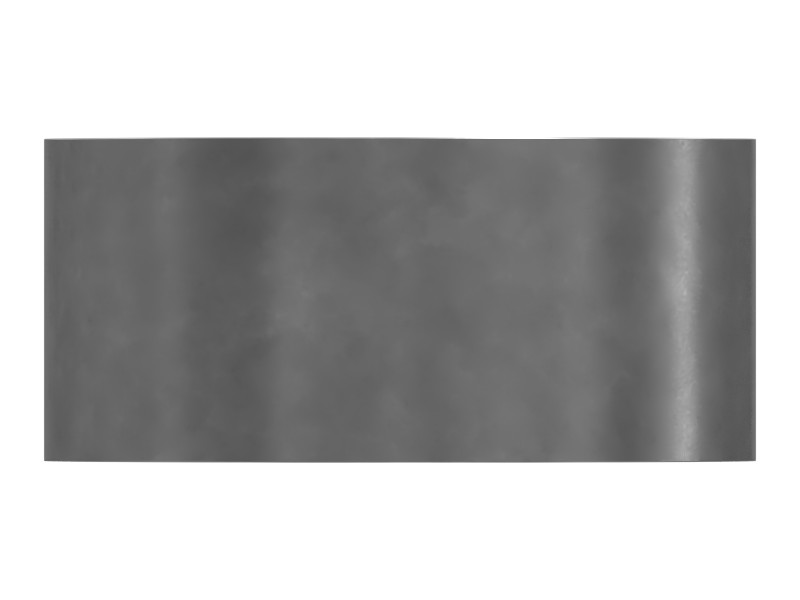

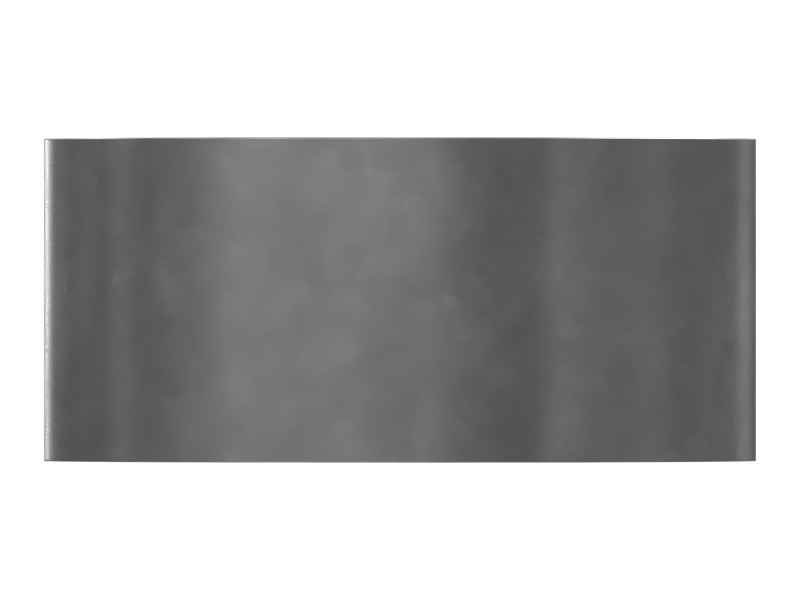

274-9256 58.4 mm ID Outer Race
Cat® 58.4 mm inside diameter spherical bearing outer race for steering cylinder rod ends and steering joints
Description
Cat bearings are designed for specific applications based on load, operating speed, temperature range, size and past performance, and are manufactured to the highest quality standards for long life and high performance.
Features
- Spherical plain bearing outer race
- Double Crack
- Lubrication groove
- Ball Diameter: 64.021 mm (2.5205 in)
Applications
Cat spherical bearings are used in applications with severe misalignment, whether the misalignment comes from installation or shaft deflection or the shaft may bend during operation. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Carbon Steel |
|---|---|
| Outside Diameter | 71.431 mm (2.812 in) |
| Inside Diameter | 58.4 mm (2.299 in) |
| Height | 32.262 mm (1.270 in) |
| Internal Groove | Yes |
Compatible Equipment
- Dozers: D10R
- Off-Highway Trucks: 773E, 777D, 773F, 777E, 773D
- Skid Steer Loaders: 24
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
