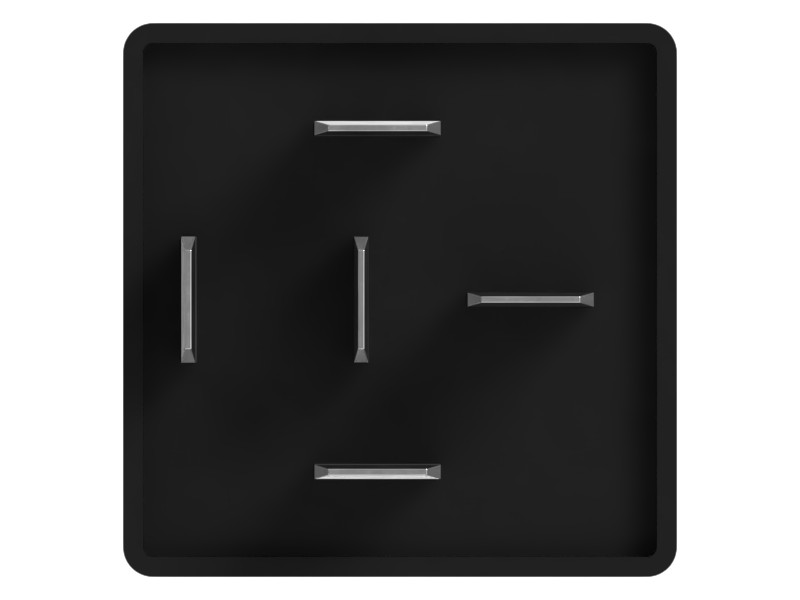

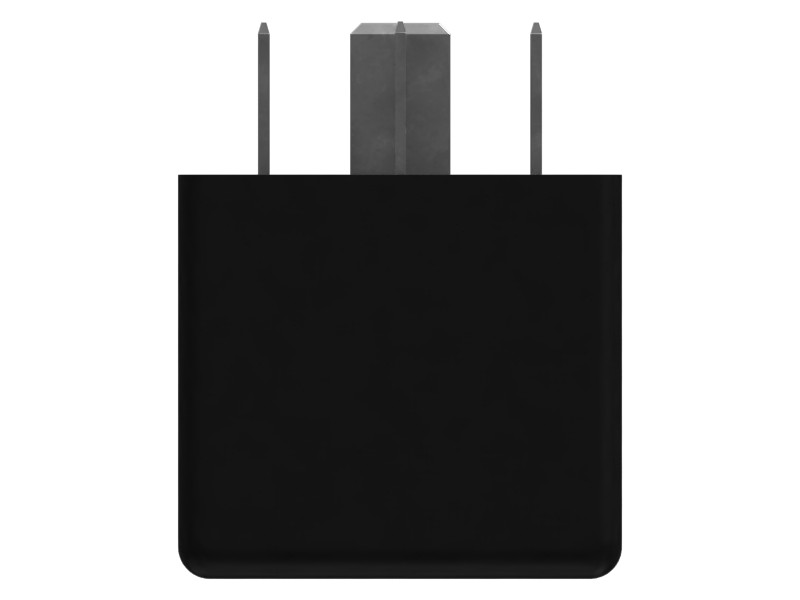

274-8263 24 Volt 5-Pin Continuous Duty Cycle Relay
Cat® 24 Volt 5-Pin Continuous Duty Cycle Relay
Description
When current is applied to a Cat relay, it energizes an electromagnet. The electromagnet closes the open contacts to energize the circuit. Meets your quality expectations in demanding working environments.
Features
- Rated Voltage: 24 V
- Rated Current: 30-50 Amps
- Contacts: SPDT
- Contact Type: Plug-in
Applications
Used to turn components on or off in the electrical systems of heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Voltage | 24 Volts |
|---|---|
| Current | 30-50 Amps |
| Length | 37 mm (1.46 in) |
| Width | 28 mm (1.10 in) |
| Height | 28 mm (1.10 in) |
Compatible Equipment
- Off-Highway Trucks: 730, 740, 725, 735
- Asphalt Pavers: AP655F L, AP655F
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
