Description
Metric

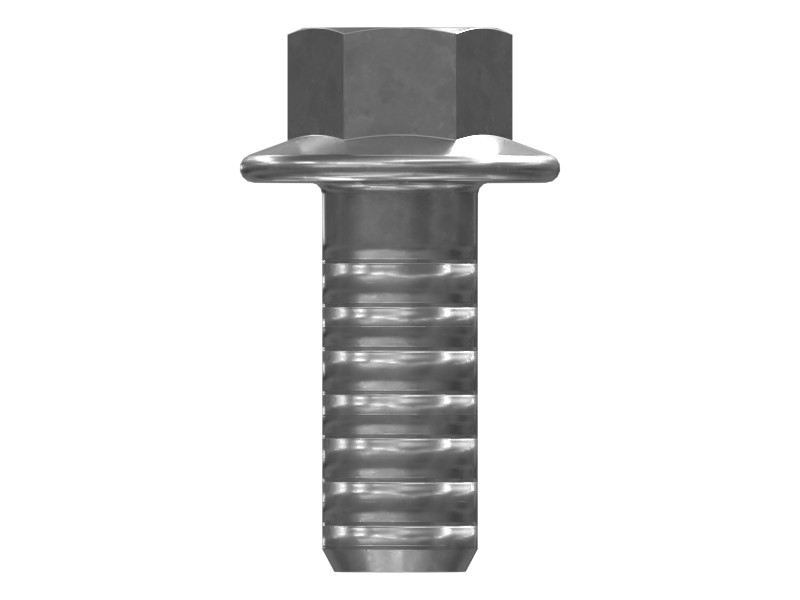

Cat bolts form a matched system with mating hardened washers and nuts to produce sustained high clamping force.
Features
- Thread Size: M12
- Material: Steel
- Zinc flake
Specifications
| Material | Carbon Steel |
|---|---|
| Thread Direction | RH |
| Locking Feature | None |
| Thread Size | M12 mm (0 in) |
| Thread Size (Diameter × Pitch) | M12x1.75 mm |
| Class or Grade | ISO 898-1 Class 10.9 |
| Hex Size | 15 mm (0.59 in) |
| Bolt Length | 30 mm (1.18 in) |
| Bolt Type | Hex Flange Head Bolt |
| Coating | Zinc Flake-Black |
| Handle Length | 5.25 mm (0.207 in) |
Compatible Equipment
- Motor Graders: 140 GC, 120
- Generator Sets: 3512B, C4.4, C7.1, C7.1DE200E
- Track Loaders: 953, 963D, 963K, 953D, 953K, 963
- Cold Planers: PL61
- Wheel Excavators: M320, M322D, M320D2
- Compactors: CS12, CS68B, CP56B, CS56B, CS79B, CS74B, CS-56, CS78B
- Engines: C6.6
- Dozers: D4, D6N, D6K2
- Excavators: 333, 336, 330 GC, 323, 320, 326, 336 GC, 333 GC, 326 GC, 330D2 L, 320E, 329E L, 320D2 L, 330D2, 320D2 GC, 323D2 L, 323D L, 330GC, 323GC, 329E, 323 GX, 320D L, 320D GC, 323D2, 335F LCR, 326GC, 335, 330, 320D2, 320D, 326D2, 326D2 L, 329D2 L, 329D2
- Wheel Loaders: 950 GC, 950, 938M, 938K, 966F, 950L, 924K, 924HZ, 962L, 926M, 928HZ
- Asphalt Pavers: AP655F, AP655F L
Additional information
| Machine Model | 120, 140 GC, 320, 320D, 320D GC, 320D L, 320D2, 320D2 GC, 320D2 L, 320E, 323, 323 GX, 323D L, 323D2, 323D2 L, 323GC, 326, 326 GC, 326D2, 326D2 L, 326GC, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330D2, 330D2 L, 330GC, 333, 333 GC, 335, 335F LCR, 336, 336 GC, 3512B, 924HZ, 924K, 926M, 928HZ, 938K, 938M, 950, 950 GC, 950L, 953, 953D, 953K, 962L, 963, 963D, 963K, 966F, AP655F, AP655F L, C4.4, C6.6, C7.1, C7.1DE200E, CP56B, CS-56, CS12, CS56B, CS68B, CS74B, CS78B, CS79B, D4, D6K2, D6N, M320, M320D2, M322D, PL61 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
