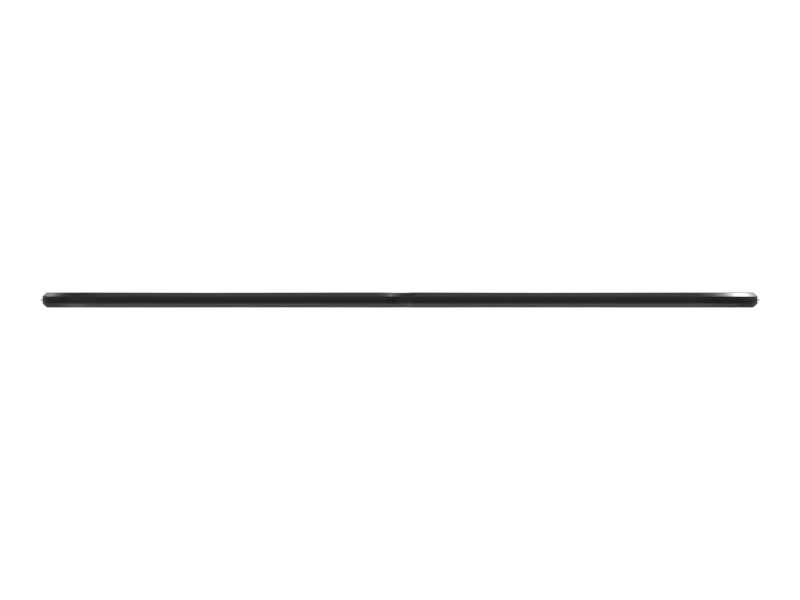

272-0758 Camshaft Cover Press-In Seal
Cat® camshaft cover pressure gasket prevents leakage and ensures engine integrity.
Description
Leakage at the connection point Description:
Press-in-place gaskets are used to stay fixed in a groove to improve the joint and prevent leakage and contamination. These are custom designs specific to application requirements.
Features
Push-in gaskets are made of materials suited to the fluids, temperatures, and pressures in Cat® engines and machines. These materials are wear-resistant and extrusion-resistant, providing the seal with outstanding resistance to compression set.
Cat® sealing systems go through a reliable design, testing and validation process. Protect your investment with the latest Genuine Cat® gaskets.
Applications
Press-in seals are widely used in many static joints on Cat® engines and machines. These are specifically designed for inverted or vertical equipment.
Specifications
| Overall Length | 251 mm |
|---|---|
| Seal/O-Ring Type | PIP |
| Overall Width | 144 mm |
| Cross-Section Height | 5.2 mm (0.2 in) |
| Cross-Section Width | 6.8 mm (0.27 in) |
| Material | Nitrile / NBR / HNBR / XNBR Rubber |
| Material Description | FKM rubber has a service temperature range of -40 to 150C and is resistant to air, fuel (including biodiesel), lubricants and engine oil. FKM rubber should not be used in applications requiring water or coolant resistance. |
Compatible Equipment
- Generator Sets: 3516C, 3512E, 3512B, G3516C, G3516, C4.4
- Track Loaders: 994K, 995
- Engines: C13
- Dozers: D11N, D11R
- Excavators: 3516B, 3512C, 3508B, 3516E, 320, 6060
- Off-Highway Trucks: 789, 789D, 785, 793D, 777D, 785D, 793, 777
Additional information
| Machine Model | 320, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6060, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 994K, 995, C13, C4.4, D11N, D11R, G3516, G3516C |
|---|---|
| Equipment Type | Excavators, Track Loaders, Dozers, Off-Highway Trucks, Engines, Generator Sets |
| Part Source | Genuine OEM |
