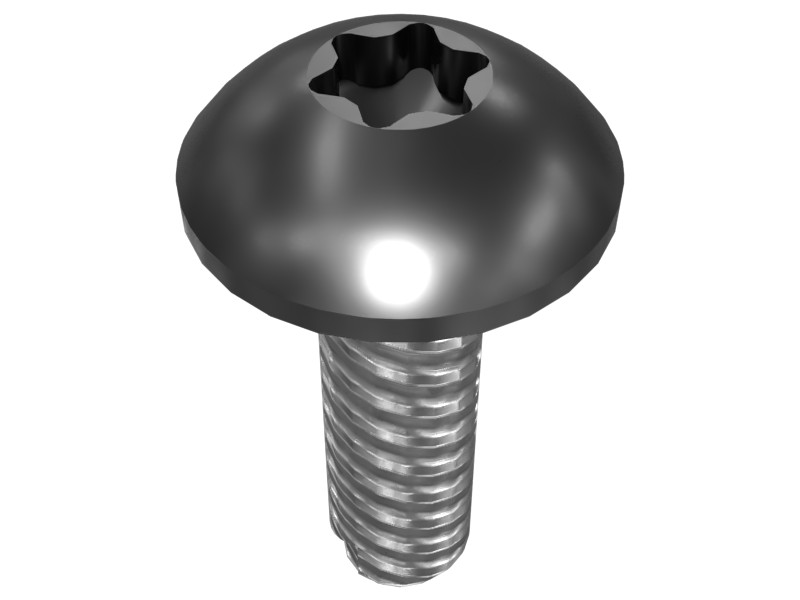

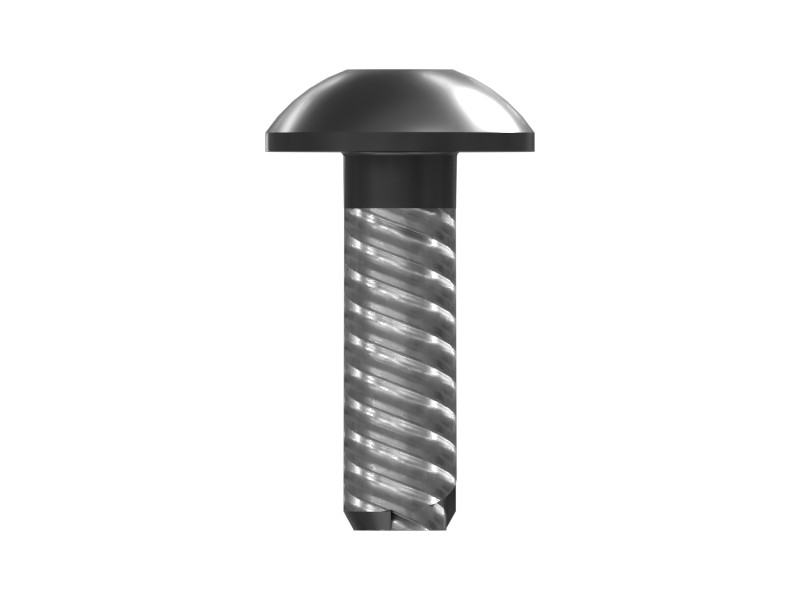

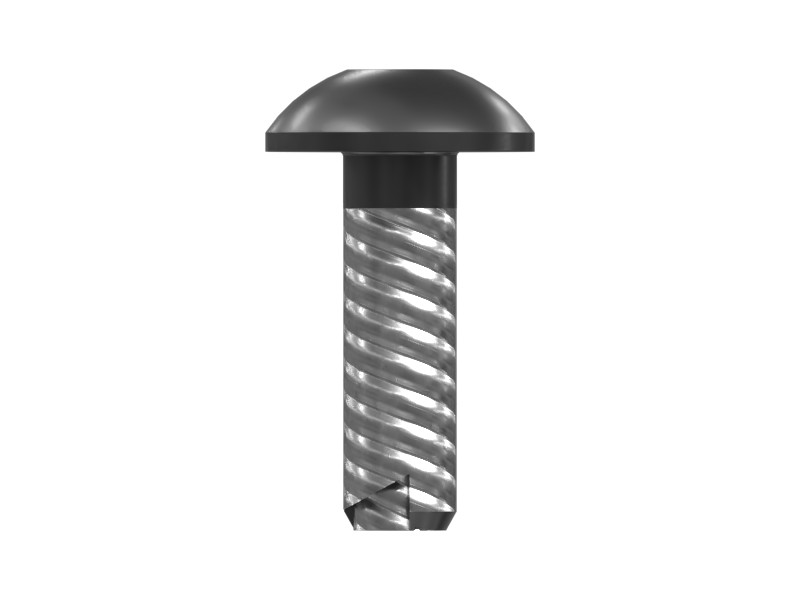

270-9442 20 mm Long Paint-Finished Truss Head Screw
Machine Screw
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These are small internal thread-forming screws.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | M6 mm (0 in) |
|---|---|
| Class or Grade | ISO 898-1 Class 10.9 |
| Thread Size (Diameter × Pitch) | M6x1 mm |
| Bolt Length | 20 mm (0.787 in) |
| Coating | Zinc Flake (720 Hour Salt Spray Test) |
| Locking Feature | Threadlocker – Adhesive |
| Handle Length | 2 mm (0.079 in) |
| Thread Direction | RH |
| Material | Low Alloy Steel |
| Bolt Type | Rounded Head (Pan) |
Compatible Equipment
- Wheel Excavators: MD6310, MD6250, MD6200
- Compact Track Loaders: 279D3, 299D3
- Dozers: D7E, D10R
- Wheel Loaders: 966M, 972M
- Off-Highway Trucks: 773, 775G, 773F, 730, 735, 725, 777
- Skid Steer Loaders: 242D3, 262D, 279C, 236D3, 232D, 272D3 XE, 299D3 XE, 236D, 259D3, 246D3, 262D3, 232D3, 246D, 226D3, 262C, 246C, 289D3, 239D3, 249D3, 272D3
Additional information
| Machine Model | 226D3, 232D, 232D3, 236D, 236D3, 239D3, 242D3, 246C, 246D, 246D3, 249D3, 259D3, 262C, 262D, 262D3, 272D3, 272D3 XE, 279C, 279D3, 289D3, 299D3, 299D3 XE, 725, 730, 735, 773, 773F, 775G, 777, 966M, 972M, D10R, D7E, MD6200, MD6250, MD6310 |
|---|---|
| Equipment Type | Wheel Excavators, Wheel Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Off-Highway Trucks |
| Part Source | Genuine OEM |
