Description

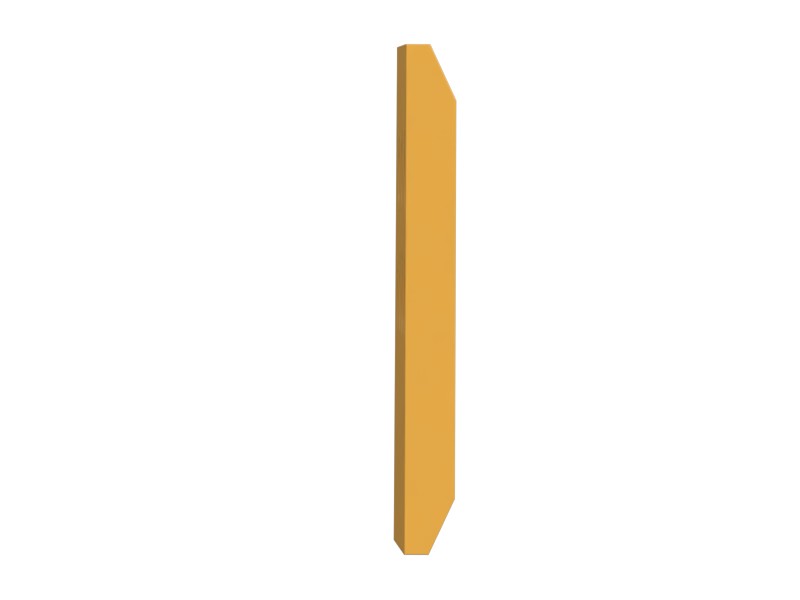

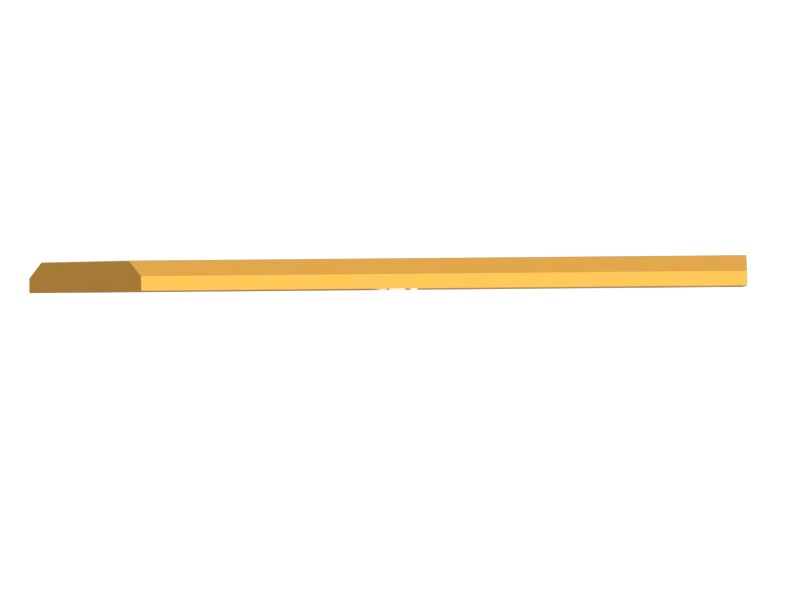

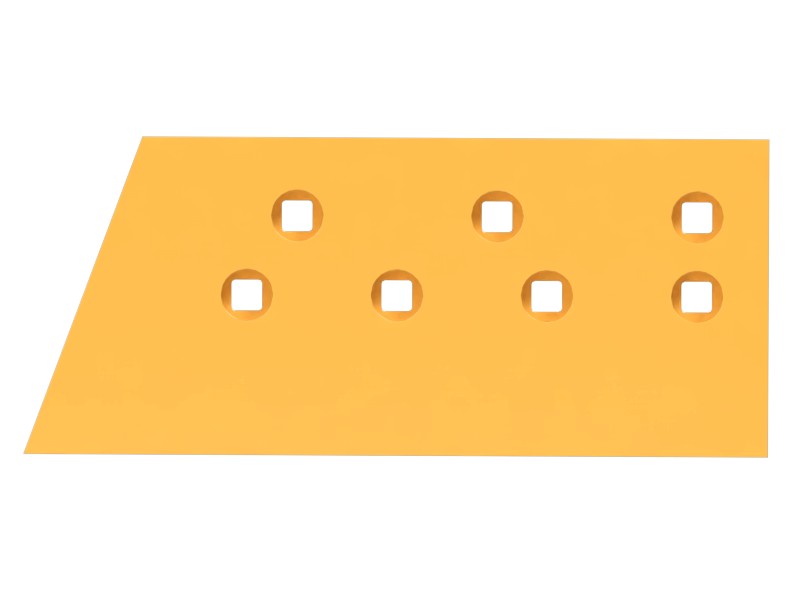

Cat® horizontal cut end bits offer unmatched manufacturing precision to protect machine blades from damage. Our Ground Engaging Tools (GET) are designed around the inherent characteristics of your Cat equipment to provide consistently superior protection.
Cat general purpose end bits feature a flat design with angled ends suited to work near curbs, minimizing windrows and shortening the time of finish grading applications. Reversible and extended reversible models are also available, doubling wear life when curb work is not required.
Our end bits are durable, cast from DH-2 steel that retains its hardness, and offer long wear life so your machine delivers the performance you need. Always choose Genuine Cat Ground Engaging Tools to protect your investment.
Features
- Matches cutting edge depth
Applications
- Finish and semi-finish dozing in sand, loose soil, and aggregate
Specifications
| Position | LH |
|---|---|
| Material | Boron Steel |
| Lower Hole Spacing | 120 mm (4.724 in) |
| Thickness | 25 mm (0.984 in) |
| End Bit Type | Level Cut |
| Upper Hole Pattern | 3 |
| Hole Size | 7/8-in Plow Bolt (25 mm square) |
| Upper Hole Spacing | 160 mm (6.299 in) |
| Width | 254 mm (10 in) |
| Overall Length | 595 mm (23.425 in) |
| Lower Hole Pattern | 4 |
| Wear or Durability | Standard |
Compatible Equipment
- Dozers: D7G2
