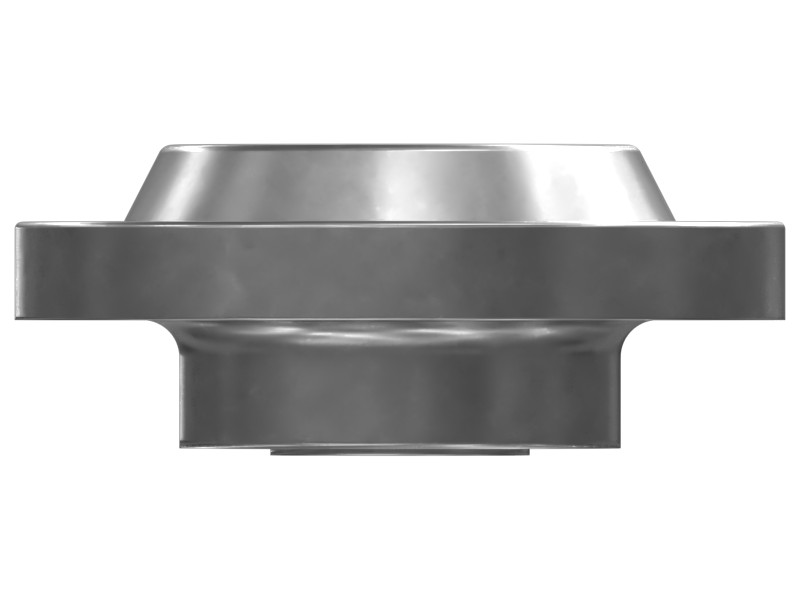

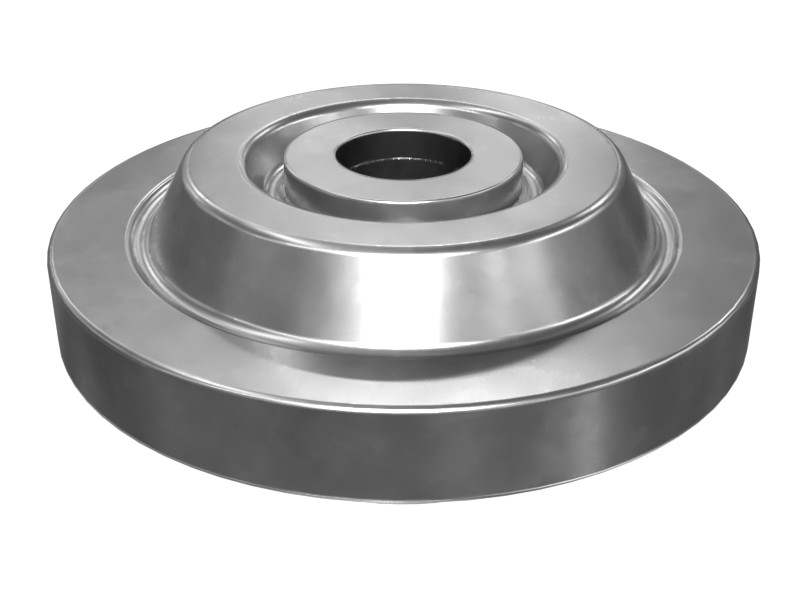

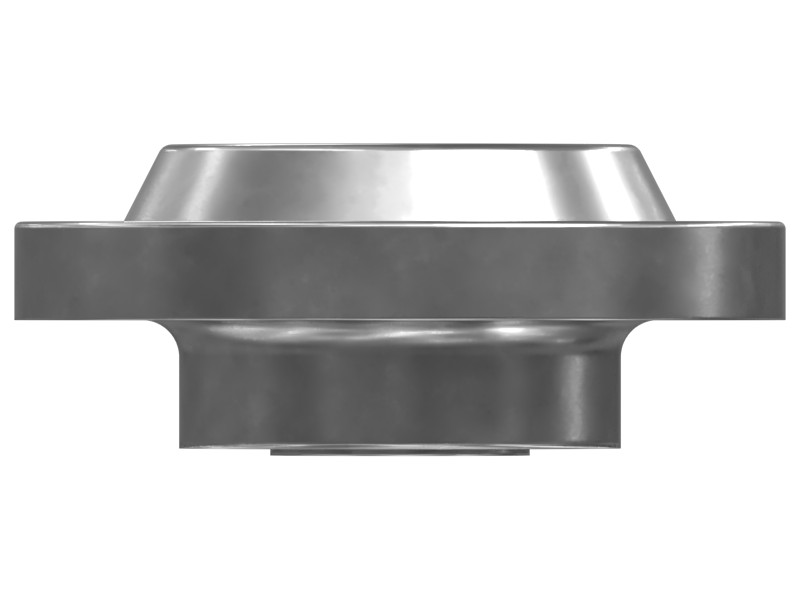

266-6301 Two-Piece Asymmetric Rubber Isolation Mount
Cat® Isolation Mount for Excavator Engine Support
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Two-piece mounts are extremely versatile and include symmetric (two mounts) and asymmetric (mount plus pad) designs. They install in drilled holes in a support plate and are bolted through the center sleeve, either joined or loose.
Applications
Two-piece mounts are used in a variety of Cat system installations, including engines, transmissions, aftertreatment systems, electronics, cab and HVAC systems, hydraulic components, and structures.
Specifications
| Mounting Type | Two-Piece – Symmetric |
|---|---|
| Bonded Sleeve | Yes |
| Material Description | 0 |
| Standard Bolt Size | N/A mm (N/A in) |
| Head Outside Diameter | 110.0 mm (4.33 in) |
| Base Height | N/A mm (N/A in) |
| Inside Diameter | 0 mm (0.83 in) |
| Head Thickness | 44.1 mm (1.74 in) |
| Spacer Height | N/A mm (N/A in) |
| Pilot OD | 67.6 mm (2.66 in) |
Compatible Equipment
- Excavators: 320D L, 323D L, 323D, 320D FM, 320D RR, 320D GC, 320D
