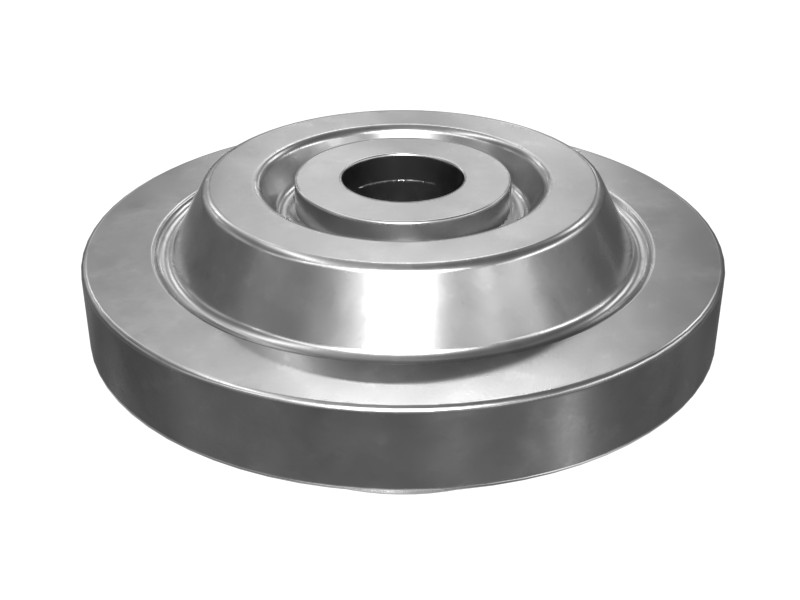

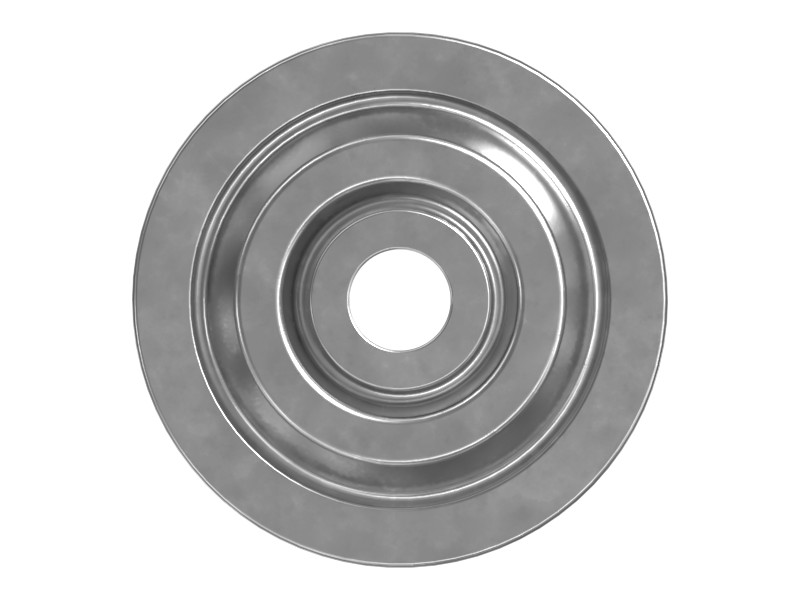

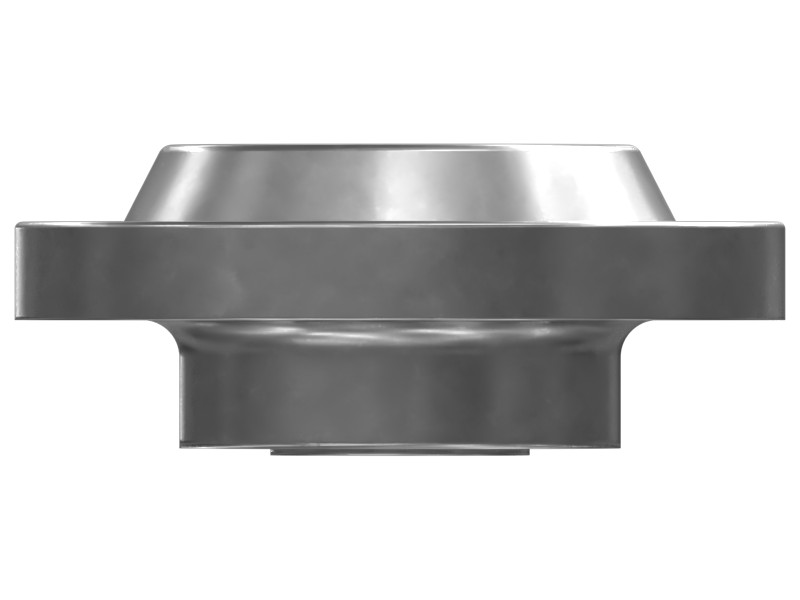

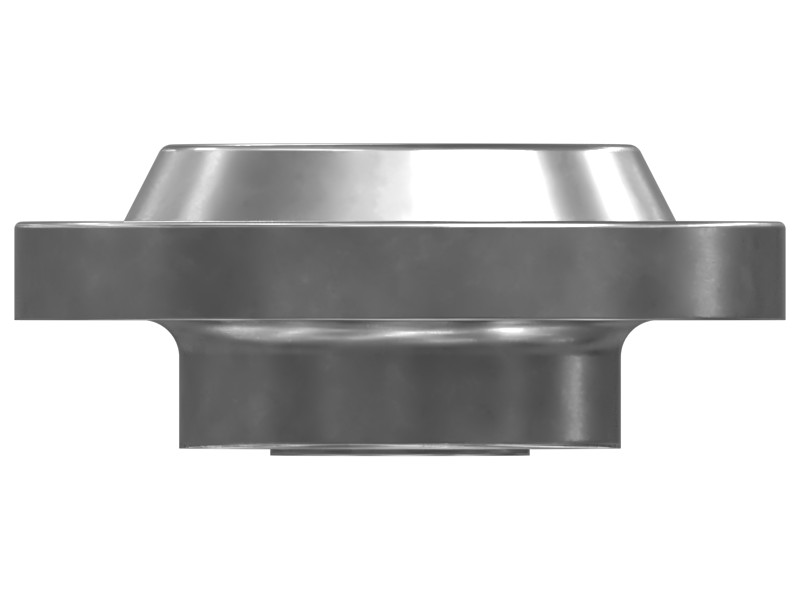

266-6299 Two-Piece Asymmetric Rubber Isolation Mount
Cat® Isolation Mount for Excavator Engine Support
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Two-piece mounts are extremely versatile and include symmetric (two mounts) and asymmetric (mount plus pad) designs. They install in drilled holes in a support plate and are bolted through the center sleeve, either joined or loose.
Applications
Two-piece mounts are used in a variety of Cat system installations, including engines, transmissions, aftertreatment systems, electronics, cab and HVAC systems, hydraulic components, and structures.
Specifications
| Material | Carbon Steel |
|---|---|
| Mounting Type | Two-Piece – Symmetric |
| Bonded Sleeve | Yes |
| Material Description | 0 |
| Standard Bolt Size | N/A mm (N/A in) |
| Head Outside Diameter | 110.0 mm (4.33 in) |
| Base Height | N/A mm (N/A in) |
| Inside Diameter | 0 mm (0 in) |
| Head Thickness | 44.1 mm (1.74 in) |
| Spacer Height | N/A mm (N/A in) |
| Pilot OD | 67.6 mm (2.66 in) |
Compatible Equipment
- Excavators: 320D FM, 336E L, 336F, 320D GC, 336F L, 323D L, 336F LN, 320D L, 336E, 336E LH, 320D RR, 336F L XE, 323D, 336E LN, 336E H, 320D
